225690-E - TE Connectivity

Description: Configuration Features: PCB Mount Orientation Vertical | Number of Positions 1 | Contact Features: Contact Type Socket | Contact Mating Area Plating Material Tin (Sn) | Contact Current Rating (Max) 160 AMP | Contact Mating Area Plating Material Thickness 2 – 6 MICM | Contact Base Material Copper Alloy | PCB Contact Termination Area Plating Material Tin | Contact Mating Area Plating Material Thickness 78.74 – 236.22 MICIN | Contact Underplating Material Copper | Contact Mating Area Plating Material Finis

Download 225690-E Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
225690-E - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

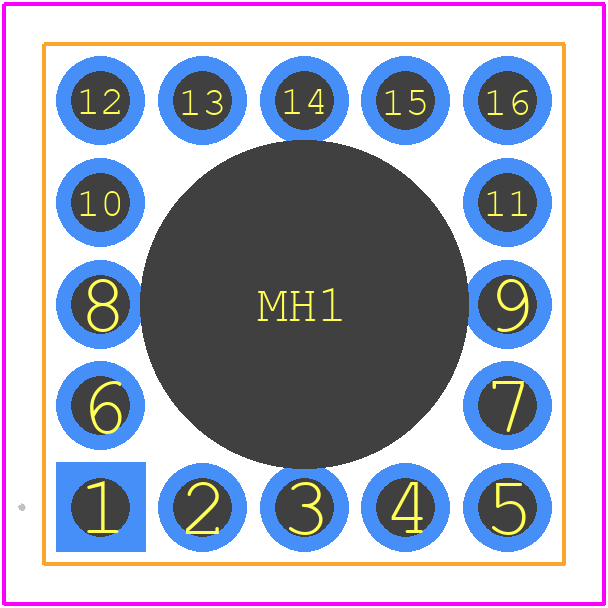

225690-E - TE Connectivity PCB footprint - Other - Other - 225690-E-3
click to zoom
3D Models
225690-E - TE Connectivity - 3D model - Other - 225690-E-3
click to zoom

225690-E Details

  • Manufacturer Part Number:

    225690-E

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    TE Connectivity

  • Additional Feature:

    MATERIAL: COPPER ALLOY

  • Mounting Type:

    BOARD

  • Number of Ways:

    1

  • Rated Current:

    160 A

  • Safety Approval:

    UL

  • Terminal and Terminal Block Type:

    POWER TERMINAL

225690-E Frequently Asked Questions (FAQs)

  • The recommended torque value for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs). It's essential to follow this torque specification to ensure reliable connections and prevent damage to the connector.
  • Yes, the 225690-E connector is designed to withstand high-vibration environments. It meets the IEC 61373 Cat 2 vibration standard, making it suitable for use in applications such as rail, industrial, and automotive.
  • The 225690-E connector has an operating temperature range of -40°C to 125°C (-40°F to 257°F). This makes it suitable for use in a wide range of applications, from industrial to automotive and more.
  • While the datasheet specifies AWG 20-24 wire sizes, the 225690-E connector can accommodate a range of wire sizes. However, it's essential to consult with TE Connectivity or a qualified engineer to determine the suitability of the connector for specific wire sizes and applications.
  • The 225690-E connector has a sealed design that provides protection against moisture and humidity. However, it's essential to consult with TE Connectivity or a qualified engineer to determine the suitability of the connector for specific harsh environments and applications.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

225690-E Overview

Use the download button to access the 225690-E schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 22569, or try a keyword search, such as Terminals and Terminal Blocks

About TE Connectivity

TE Connectivity, a global leader in connectivity and sensor solutions, designs and manufactures products that enable a more connected world. Serving a diverse range of industries, including automotive, industrial, medical, aerospace, and telecommunications, TE Connectivity offers a broad portfolio of products such as connectors, sensors, relays, and passive components. The company's innovations help improve the reliability and performance of electronic systems.
