The recommended torque value for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs). It's essential to follow this value to ensure reliable connections and prevent damage to the connector.
Yes, the 225693-E connector is designed to withstand vibrations and is suitable for use in applications with moderate to high vibration levels. However, it's essential to follow proper mounting and installation procedures to ensure the connector remains secure.
While the datasheet recommends AWG 20-24 wire sizes, the connector can accommodate smaller wire sizes (e.g., AWG 26-28) with some adjustments to the wire stripping and termination process. However, using larger wire sizes may not be possible due to the connector's design constraints.
To ensure reliable connections in high-temperature environments, it's essential to follow proper termination and wire management techniques. Additionally, consider using heat-resistant wire and ensuring the connector is properly secured to the PCB or mounting surface.
The 225693-E connector is designed for indoor use, but it can be used in outdoor or harsh environmental applications with proper protection and sealing. Consider using additional sealing or conformal coating to protect the connector from moisture and environmental stressors.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
225693-E Overview

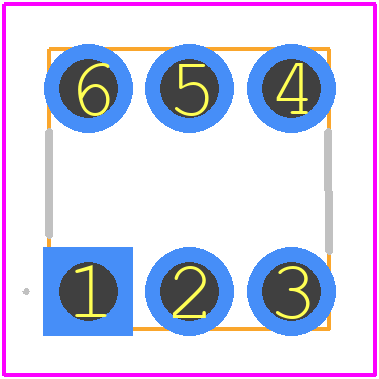

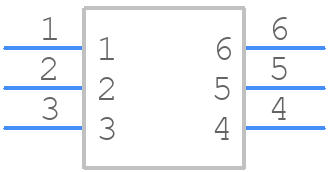

Use the download button to access the 225693-E schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 22569,
or try a keyword search, such as Terminals and Terminal Blocks
About TE Connectivity
TE Connectivity, a global leader in connectivity and sensor solutions, designs and manufactures products that enable a more connected world. Serving a diverse range of industries, including automotive, industrial, medical, aerospace, and telecommunications, TE Connectivity offers a broad portfolio of products such as connectors, sensors, relays, and passive components. The company's innovations help improve the reliability and performance of electronic systems.
