2274000-1 - TE Connectivity

Description: Configuration Features: Port Matrix Configuration 1 x 1 | Lightpipe Style Standard | Number of Ports 1 | Dimensions: PCB Thickness (Recommended) .059 INCH | PCB Thickness (Recommended) 1.5 MM | Electrical Characteristics: Data Rate (Max) 32 GBS | Housing Features: Cage Material Nickel Silver Alloy | Operation/Application: Circuit Application Signal | Pluggable I/O Applications zSFP+ Thermally Enhanced | Heat Sink Compatible No | Other: Included Lightpipe Yes | EMI Containment Feature Type Internal/External

Download 2274000-1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

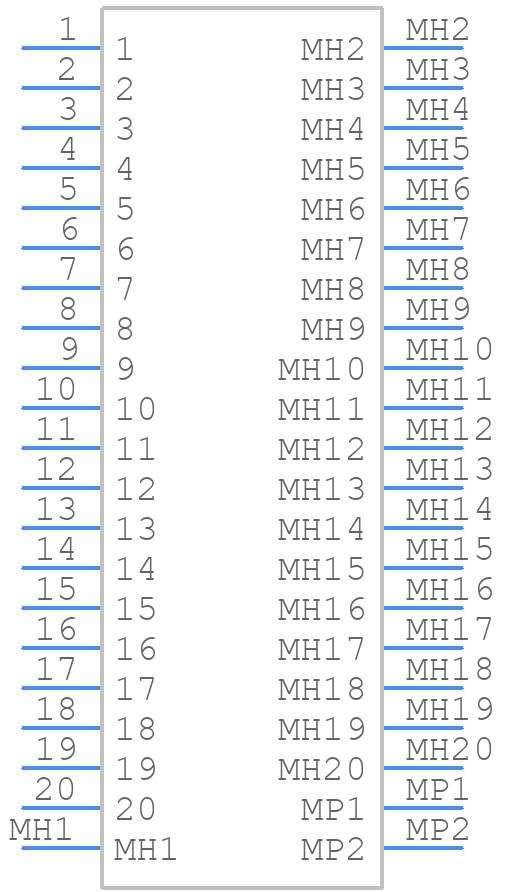

2274000-1 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

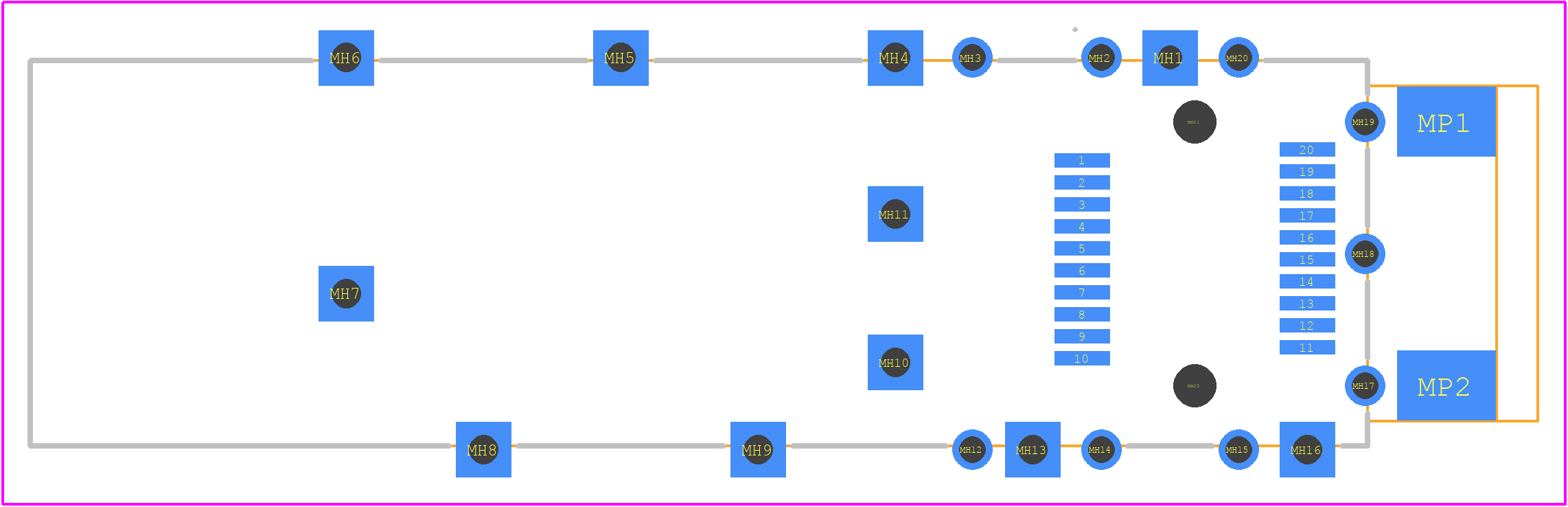

2274000-1 - TE Connectivity PCB footprint - Other - Other - 2274000-1-2
click to zoom
3D Models
2274000-1 - TE Connectivity - 3D model - Other - 2274000-1-2
click to zoom

2274000-1 Details

  • Manufacturer Part Number:

    2274000-1

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Factory Lead Time:

    18 Weeks, 1 Day

  • Manufacturer:

    TE Connectivity

  • Design Use:

    SIGNAL

  • Material:

    NICKEL SILVER ALLOY

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -55 °C

  • Terminal Type:

    COMPLIANT FIT

  • Wire Gauge:

    0 AWG

2274000-1 Frequently Asked Questions (FAQs)

  • The recommended torque value is 0.5-0.7 Nm (5-7 in-lbs) for the screw terminals on the 2274000-1 connector.
  • Yes, the 2274000-1 connector is designed to withstand high-vibration environments, but it's recommended to follow the manufacturer's guidelines for mounting and securing the connector to ensure reliable performance.
  • The 2274000-1 connector has a rating of IP67, which means it is protected against dust and temporary immersion in water, making it suitable for outdoor use. However, it's essential to follow proper sealing and installation procedures to maintain the IP67 rating.
  • The 2274000-1 connector has an operating temperature range of -40°C to 125°C (-40°F to 257°F), making it suitable for a wide range of applications.
  • While it's technically possible to use a different wire gauge, it's not recommended as it may affect the connector's performance and reliability. It's best to follow the manufacturer's recommended wire gauge specifications to ensure optimal performance.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

2274000-1 Overview

Use the download button to access the 2274000-1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 22740, or try a keyword search, such as Assembly Items

About TE Connectivity

TE Connectivity, a global leader in connectivity and sensor solutions, designs and manufactures products that enable a more connected world. Serving a diverse range of industries, including automotive, industrial, medical, aerospace, and telecommunications, TE Connectivity offers a broad portfolio of products such as connectors, sensors, relays, and passive components. The company's innovations help improve the reliability and performance of electronic systems.
