- Part Number 2274682-1
- Manufacturer TE Connectivity
- Pin Count 84
- Part Category Connector
- Package Category Other

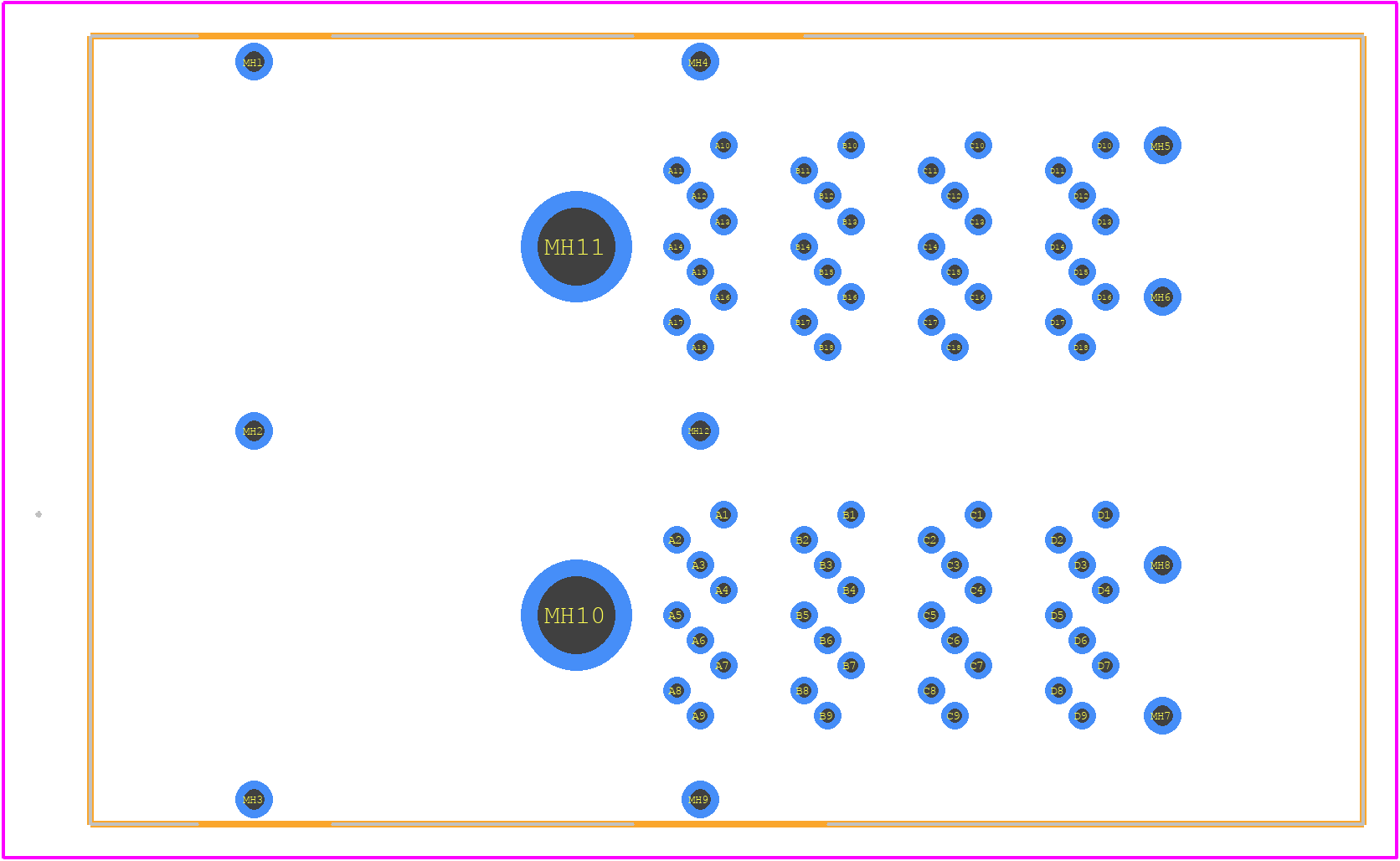

- Footprint Name Other - 2274682-1-4
- Released Date Mar 16, 2020
- Last Modified Date Dec 15, 2024 10:37 PM UTC
- Pinout / Pin List Click Here (Member Only)
2274682-1 Details
-
Manufacturer Part Number:
2274682-1
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
ECCN Code:
EAR99
-
HTS Code:
8536.69.40.40
-
Factory Lead Time:
11 Weeks, 5 Days
-
Manufacturer:
TE Connectivity
-
YTEOL:
6.75
-
Board Mounting Option:
M2 THREADED HOLES
-
Body/Shell Style:
RECEPTACLE
-
Connector Type:
BOARD CONNECTOR
2274682-1 Frequently Asked Questions (FAQs)
-
The recommended torque for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs). This information can be found in the TE Connectivity application notes or by contacting their technical support.
-
Yes, the 2274682-1 connector is designed to withstand high-vibration environments. It meets the IEC 61373 standard for vibration resistance, which simulates the vibrations experienced in railway applications.
-
The 2274682-1 connector has a IP67 rating, which means it is protected against dust and water ingress. However, it's essential to ensure the connector is properly sealed and mated to maintain its environmental rating.
-
The 2274682-1 connector has an operating temperature range of -40°C to 125°C (-40°F to 257°F). This information can be found in the datasheet, but it's essential to note that the temperature range may vary depending on the specific application and environmental conditions.
-
It's possible to use the 2274682-1 connector with a different wire gauge, but it's crucial to ensure the wire gauge meets the connector's specifications and doesn't compromise its performance or reliability. Consult with TE Connectivity's technical support or application notes for guidance on wire gauge selection.
Trust Checks
Expert Contribution
System Verified
Community Approved
2274682-1 Overview
Use the download button to access the 2274682-1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 22746,
or try a keyword search, such as Headers and Edge Type Connectors
