2274845-1 - TE Connectivity

Description: 104 Position CFP2 Receptacle Connector Solder Surface Mount, Right Angle

Download 2274845-1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
2274845-1 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

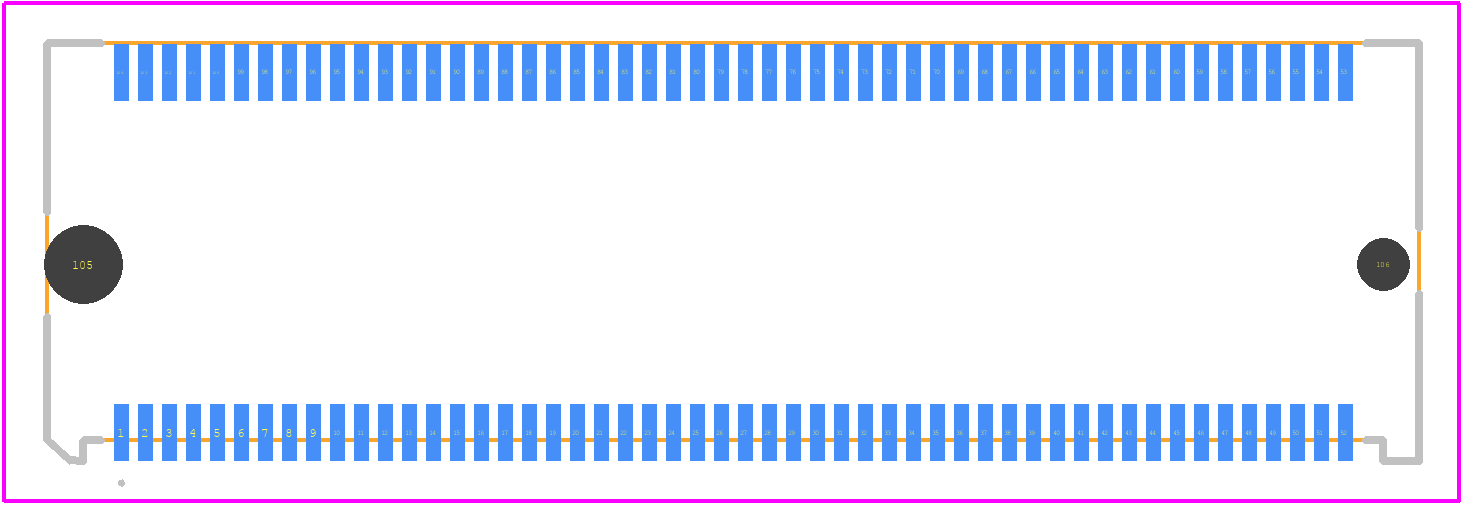

2274845-1 - TE Connectivity PCB footprint - Other - Other - 2274845-1-2
click to zoom
3D Models
2274845-1 - TE Connectivity - 3D model - Other - 2274845-1-2
click to zoom

2274845-1 Details

  • Manufacturer Part Number:

    2274845-1

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    7 Weeks, 3 Days

  • Manufacturer:

    TE Connectivity

  • Body/Shell Style:

    RECEPTACLE

  • Connector Type:

    CARD EDGE CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Material:

    NOT APPLICABLE

  • DIN Conformance:

    NO

  • EMI Shielded:

    NO

  • Empty Shell:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    .5A

  • Mixed Contacts:

    NO

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Ports:

    1

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -55 °C

  • Option:

    GENERAL PURPOSE

  • Panel Mount:

    NO

  • Rated Current (Signal):

    0.5 A

  • Terminal Pitch:

    0.6 mm

  • Termination Type:

    SURFACE MOUNT

  • Total Number of Contacts:

    104

2274845-1 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5-1.5 Nm (4-12 in-lbs). It's essential to follow the recommended torque to ensure reliable connections and prevent damage to the connector.
  • Yes, the 2274845-1 connector is designed to withstand high-vibration environments. However, it's crucial to ensure proper mounting and secure the connector to prevent damage or disconnection.
  • The 2274845-1 connector has a IP67 rating, making it suitable for outdoor and harsh environmental applications. However, it's essential to follow proper sealing and installation procedures to maintain the IP rating.
  • Yes, the 2274845-1 connector is designed to be compatible with other TE Connectivity products, such as cable assemblies and connectors. However, it's essential to verify compatibility and follow proper mating procedures.
  • The 2274845-1 connector has an operating temperature range of -40°C to 125°C (-40°F to 257°F). It's essential to ensure the connector is used within this temperature range to maintain reliability and performance.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

2274845-1 Overview

Use the download button to access the 2274845-1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 22748, or try a keyword search, such as Headers and Edge Type Connectors

About TE Connectivity

TE Connectivity, a global leader in connectivity and sensor solutions, designs and manufactures products that enable a more connected world. Serving a diverse range of industries, including automotive, industrial, medical, aerospace, and telecommunications, TE Connectivity offers a broad portfolio of products such as connectors, sensors, relays, and passive components. The company's innovations help improve the reliability and performance of electronic systems.
