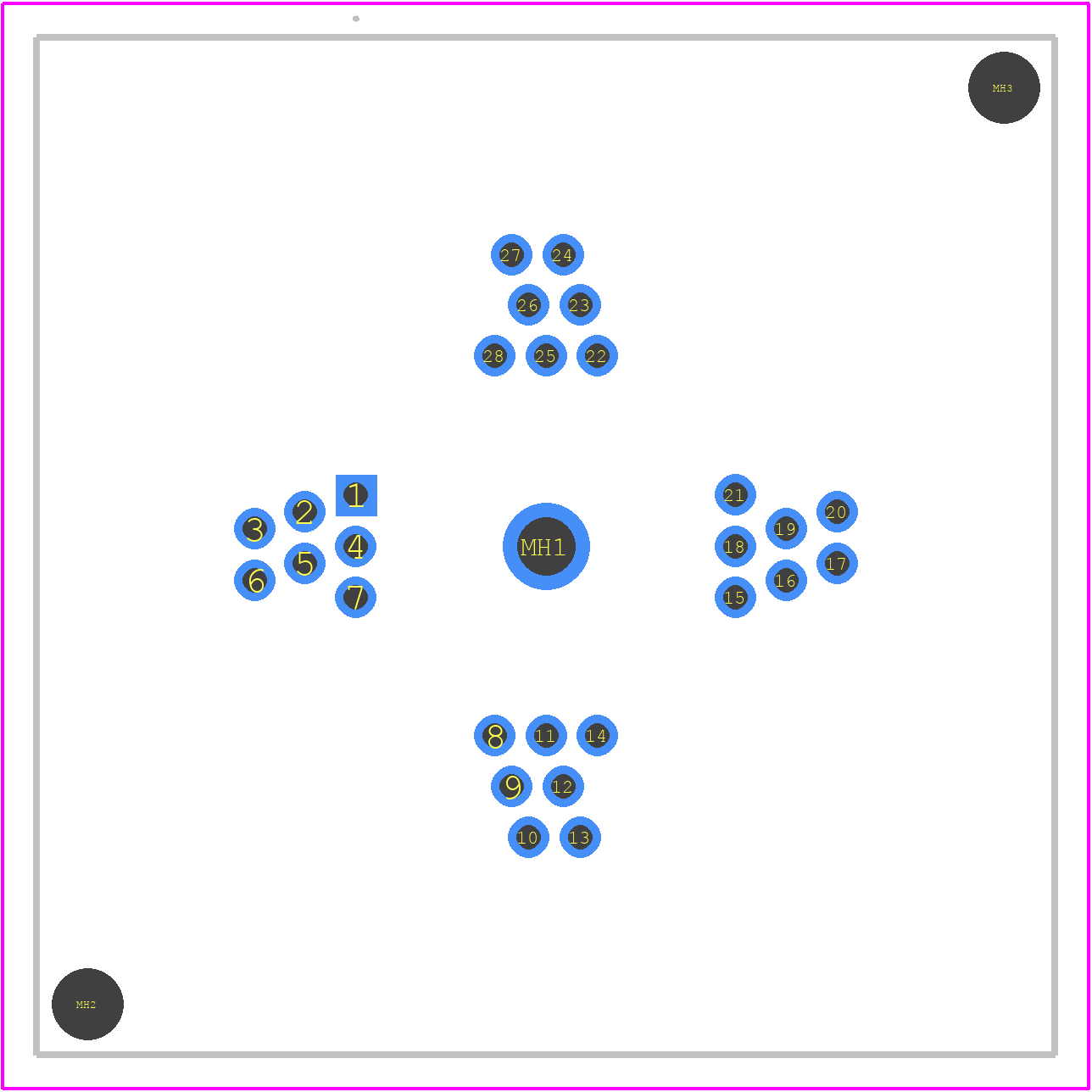

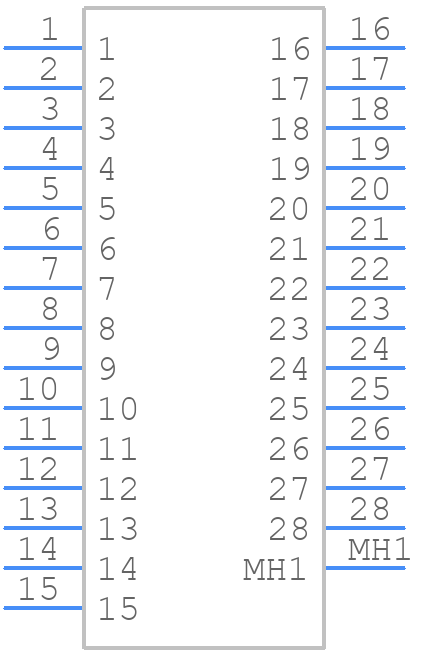

228-5204-01 - 3M

228-5204-01 Frequently Asked Questions (FAQs)

• What is the recommended torque for the screw terminals?
  The recommended torque for the screw terminals is 0.5-1.5 Nm (4-12 in-lbs). It's essential to follow this torque specification to ensure reliable connections and prevent damage to the connector.
• Can I use this connector in high-vibration applications?
  Yes, the 228-5204-01 connector is designed to withstand high-vibration environments. It has a ruggedized design and is suitable for use in applications with vibration levels up to 10 G (sinusoidal vibration) and 5 G (random vibration).
• Is this connector suitable for outdoor use?
  The 228-5204-01 connector has a IP67 rating, which means it is protected against dust and can withstand immersion in water up to 1 meter for 30 minutes. However, it's essential to ensure proper sealing and protection when using the connector in outdoor environments.
• What is the operating temperature range for this connector?
  The 228-5204-01 connector is designed to operate in temperatures ranging from -40°C to 125°C (-40°F to 257°F). It's essential to ensure the connector is used within this temperature range to maintain its performance and reliability.
• Can I use this connector with wire sizes other than 20 AWG?
  While the datasheet specifies 20 AWG wire, the 228-5204-01 connector can accommodate wire sizes ranging from 18 AWG to 22 AWG. However, it's essential to ensure the wire size and insulation meet the connector's specifications to maintain reliable connections.
