228-7396-55-1902 - 3M

Description: 28 way clam-shell design SOIC socket 3M 1.27mm Pitch 28 Way Through Hole SOIC Test & Burn-in Socket

Download 228-7396-55-1902 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

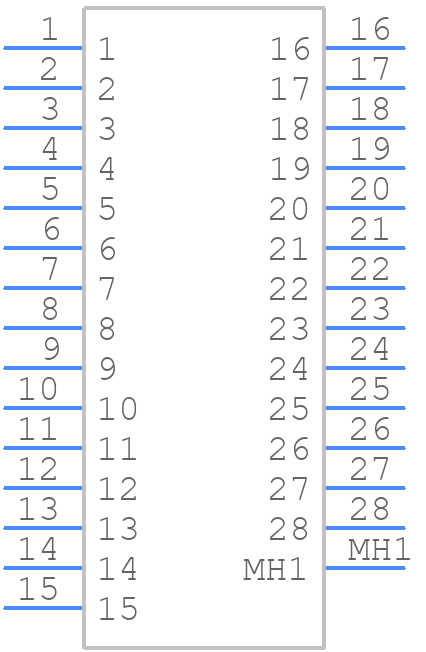

228-7396-55-1902 - 3M - PCB symbol
click to zoom
PCB Footprints

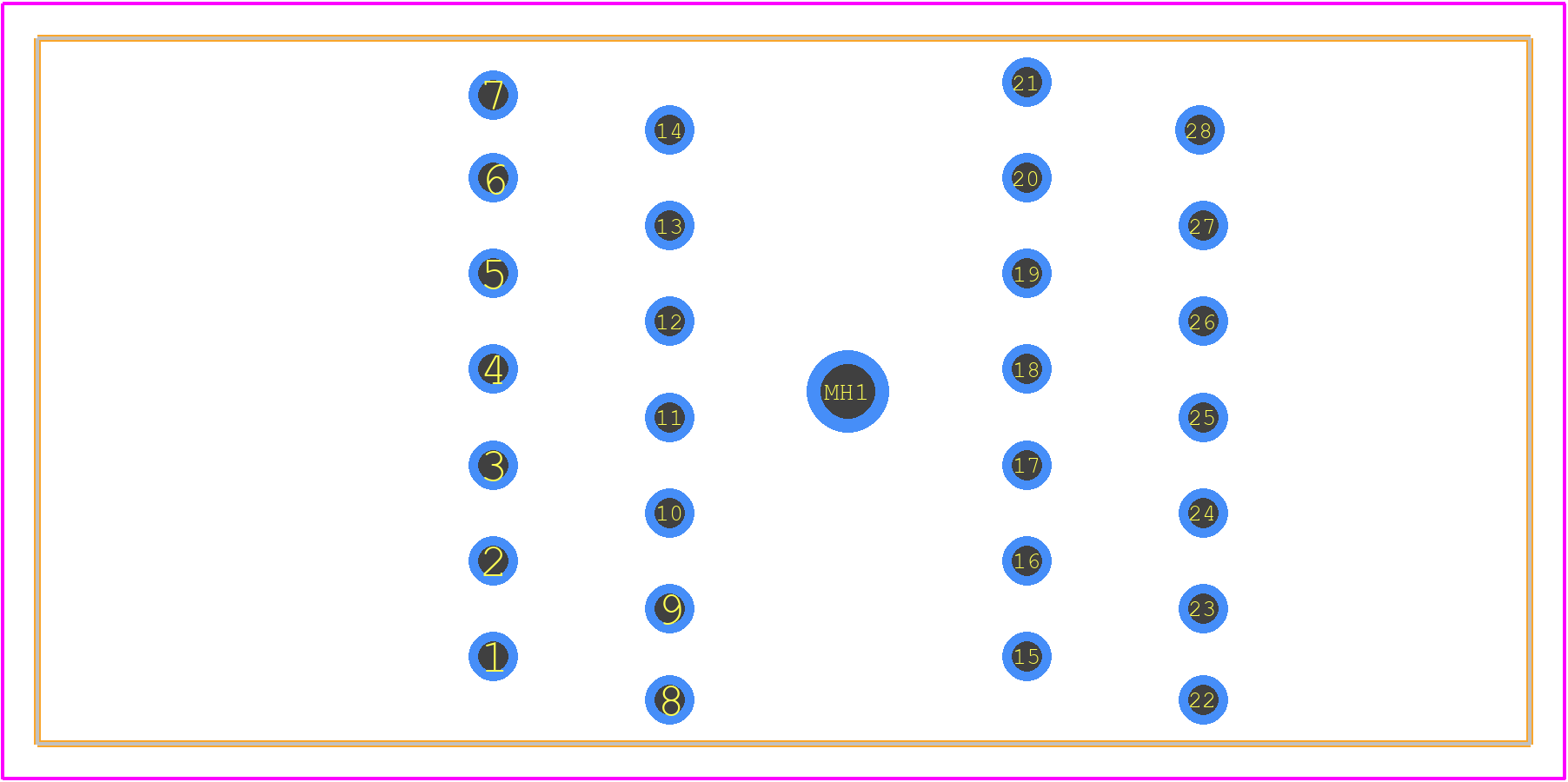

228-7396-55-1902 - 3M PCB footprint - Other - Other - 228-7396-55-1902-2
click to zoom
3D Models
228-7396-55-1902 - 3M - 3D model - Other - 228-7396-55-1902-2
click to zoom

228-7396-55-1902 Details

  • Manufacturer Part Number:

    228-7396-55-1902

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    13 Weeks

  • Manufacturer:

    3M Interconnect

  • YTEOL:

    6.87

  • Additional Feature:

    STANDARD: UL 94V-0

  • Contact Finish Mating:

    GOLD (30) OVER NICKEL (50)

  • Contact Finish Termination:

    GOLD OVER NICKEL

  • Contact Material:

    BERYLLIUM COPPER

  • Device Socket Type:

    IC SOCKET

  • Device Type Used On:

    SOIC28

  • Housing Material:

    POLYETHERSULFONE

  • JESD-609 Code:

    e4

  • Number of Contacts:

    28

228-7396-55-1902 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5-1.5 Nm (4-12 in-lbs).
  • Yes, the 228-7396-55-1902 connector is designed to withstand high-vibration environments and meets the requirements of IEC 61373 Category 1, Class B.
  • The operating temperature range for the 228-7396-55-1902 connector is -40°C to 125°C (-40°F to 257°F).
  • Yes, the 228-7396-55-1902 connector is designed to withstand harsh environments and meets the requirements of IEC 60529 IP67 and IP69K.
  • No, the 228-7396-55-1902 connector is designed specifically for use with AWG 20-24 wire sizes. Using a different wire size may affect the connector's performance and reliability.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

228-7396-55-1902 Overview

Use the download button to access the 228-7396-55-1902 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 228-7, or try a keyword search, such as Sockets and Chip Carriers
