2284170-1 - TE Connectivity

Description: Configuration Features: Port Matrix Configuration 1 x 5 | Number of Ports 5 | Contact Features: Tail Plating Material Tin | Dimensions: PCB Thickness (Recommended) .059 INCH | PCB Thickness (Recommended) 1.5 MM | Electrical Characteristics: Data Rate (Max) 16 GBS | Housing Features: Cage Material Nickel Silver | Operation/Application: Heat Sink Compatible Yes | Pluggable I/O Applications SFP+ Enhanced | Other: EMI Containment Feature Type Internal/External EMI Springs | Included Lightpipe No | Packaging Fea

Download 2284170-1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
2284170-1 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

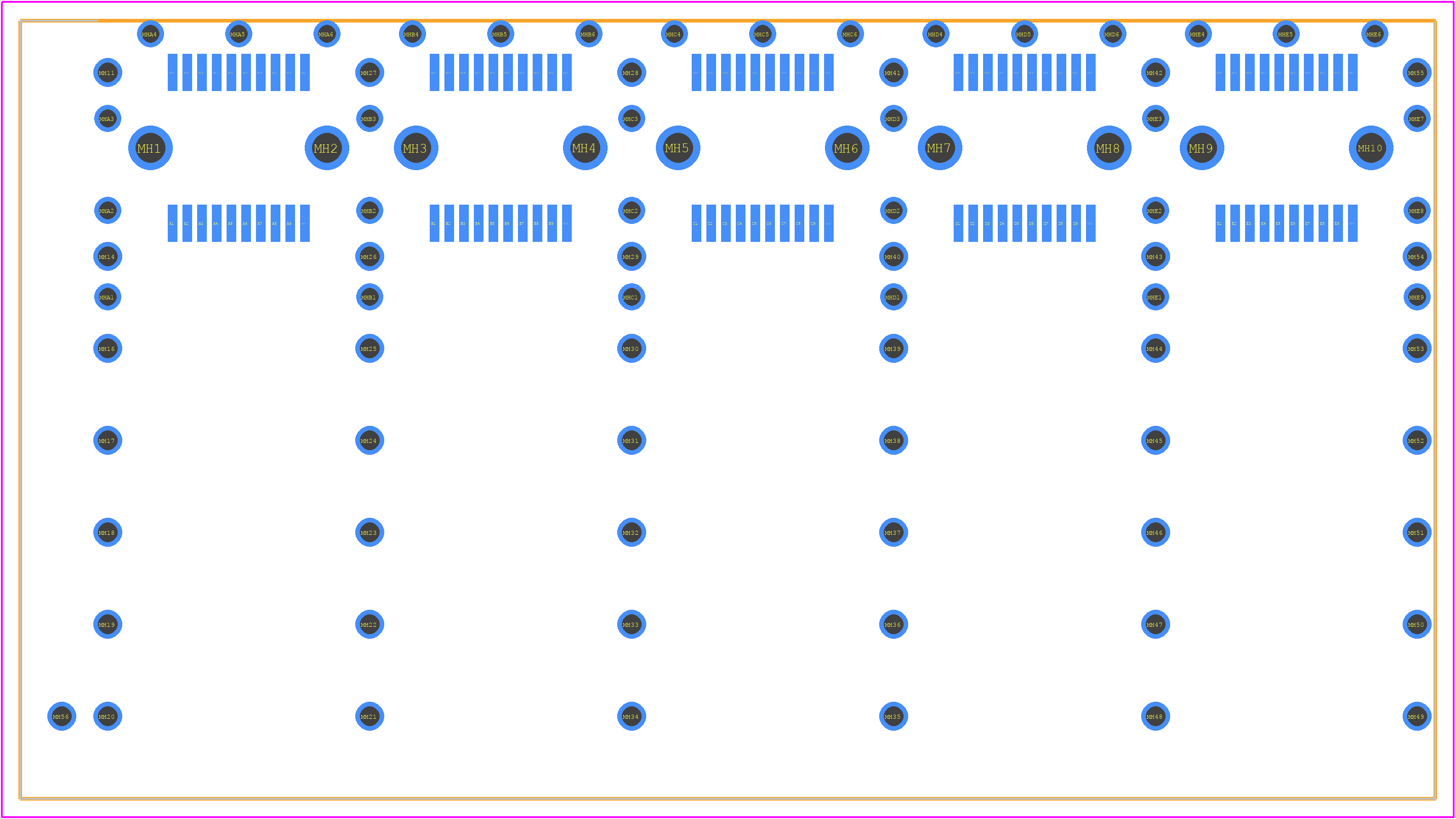

2284170-1 - TE Connectivity PCB footprint - Other - Other - 2284170-1-7
click to zoom
3D Models
2284170-1 - TE Connectivity - 3D model - Other - 2284170-1-7
click to zoom

2284170-1 Details

  • Manufacturer Part Number:

    2284170-1

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Factory Lead Time:

    5 Weeks, 5 Days

  • Manufacturer:

    TE Connectivity

  • Connector Support Type:

    CONNECTOR ACCESSORY

  • Material:

    NICKEL SILVER ALLOY

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -55 °C

  • Terminal Type:

    COMPLIANT FIT

  • Wire Gauge:

    0 AWG

2284170-1 Frequently Asked Questions (FAQs)

  • The recommended torque value is 0.5-0.7 Nm (4.4-6.3 in-lbs) for the screw terminals.
  • Yes, the 2284170-1 connector is designed to withstand high-vibration environments, with a vibration rating of 10-2000 Hz, 10G peak acceleration.
  • Yes, the 2284170-1 connector is rated IP67, making it suitable for outdoor use and providing protection against dust and water ingress.
  • The operating temperature range for the 2284170-1 connector is -40°C to 125°C (-40°F to 257°F).
  • No, the 2284170-1 connector is designed for use with wire gauges 18 AWG to 24 AWG. Using a larger wire gauge may compromise the connector's performance and reliability.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

2284170-1 Overview

Use the download button to access the 2284170-1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 22841, or try a keyword search, such as Assembly Items
