2286550-1 - TE Connectivity

Description: Body Features: Connector & Keying Code A | Body Material ZnAL4Cu1 | Body Material PPA GF25 | PCB Retention Feature Plating Material Tin | Configuration Features: PCB Mount Orientation Horizontal | Number of Positions 6 | Contact Features: Mating Pin Diameter .024 INCH | Mating Pin Diameter .6 MM | RF Connector Center Contact Plating Material Gold (Au) | Center Contact With | Contact Mating Area Plating Material Gold | Contact Type Pin | Dimensions: Connector Height 10.95 MM | Product Length .616 INCH | Prod

Download 2286550-1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
2286550-1 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

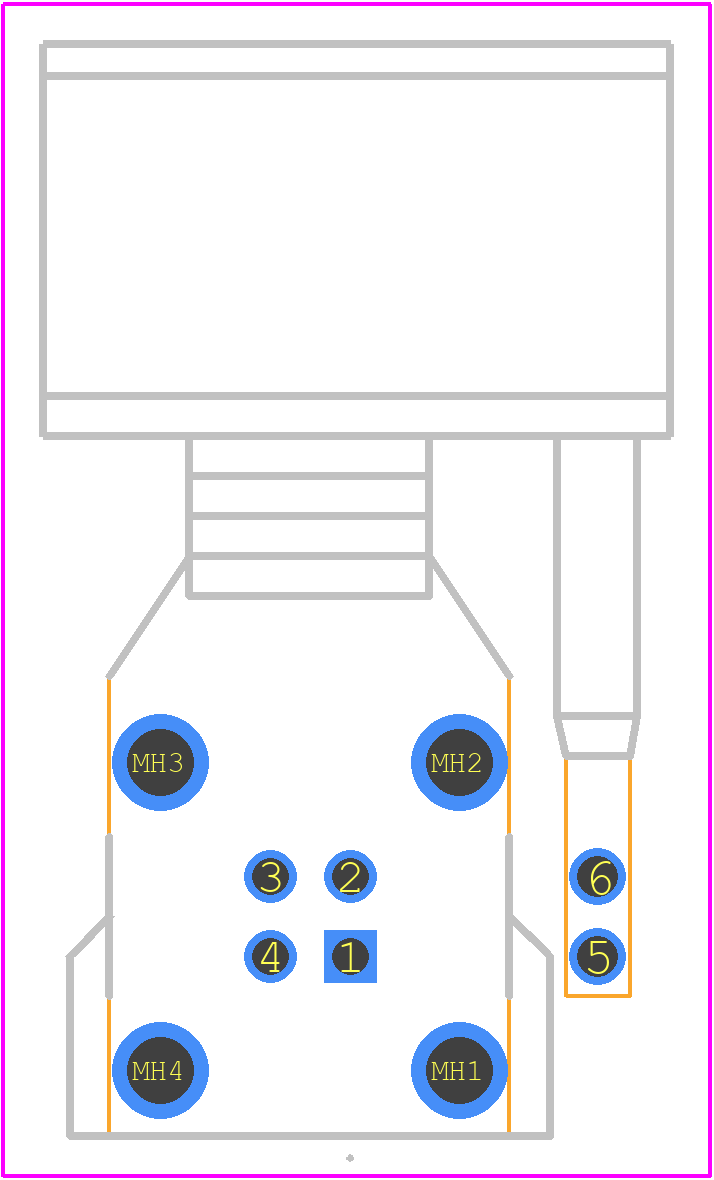

2286550-1 - TE Connectivity PCB footprint - Other - Other - 2286550-1-7
click to zoom
3D Models
2286550-1 - TE Connectivity - 3D model - Other - 2286550-1-7
click to zoom

2286550-1 Details

  • Manufacturer Part Number:

    2286550-1

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.20

  • Factory Lead Time:

    46 Weeks, 6 Days

  • Manufacturer:

    TE Connectivity

  • Backshell Type:

    SOLID

  • Body Breadth:

    1.074 inch

  • Body Depth:

    0.431 inch

  • Body Length:

    0.616 inch

  • Characteristic Impedance:

    100 Ω

  • Connector Type:

    CIRCULAR CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Gender:

    MALE

  • Contact Material:

    NOT APPLICABLE

  • Contact Style:

    RND PIN-SKT

  • DIN Conformance:

    NO

  • EMI Shielded:

    YES

  • Empty Shell:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Color:

    BLACK

  • Insulator Material:

    GLASS FILLED POLYAMIDE

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    115/230VAC

  • Mixed Contacts:

    NO

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Ports:

    1

  • Operating Frequency-Max:

    3 GHz

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Option:

    GENERAL PURPOSE

  • Panel Mount:

    NO

  • Polarization Key:

    POLARIZED

  • Rated Voltage:

    60 V

  • Terminal Pitch:

    2 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    6

2286550-1 Frequently Asked Questions (FAQs)

  • The recommended torque value for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs). It's essential to follow this value to ensure proper connection and prevent damage to the connector.
  • Yes, the 2286550-1 connector is designed to withstand high-vibration environments. It meets the IEC 61373 Cat 2 standard for vibration resistance, making it suitable for use in applications such as rail, industrial, and automotive.
  • The operating temperature range for the 2286550-1 connector is -40°C to 125°C (-40°F to 257°F). It's essential to ensure that the connector is used within this temperature range to maintain its performance and reliability.
  • Yes, the 2286550-1 connector is designed to operate in harsh environments. It has a IP67 rating, which means it is protected against dust and water ingress, making it suitable for use in outdoor or industrial applications.
  • Yes, the 2286550-1 connector is part of the TE Connectivity's modular connector system. It is designed to be compatible with other TE Connectivity products, such as backshells, contacts, and cable assemblies, allowing for flexible and customizable solutions.
