2291172-1 - TE Connectivity

Description: PCB Mount Header, Vertical, Wire-to-Board / Wire-to-Device, 8 Position, 2.2 mm [.087 in] Centerline, Fully Shrouded, 0.64/025 Connector System

Download 2291172-1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

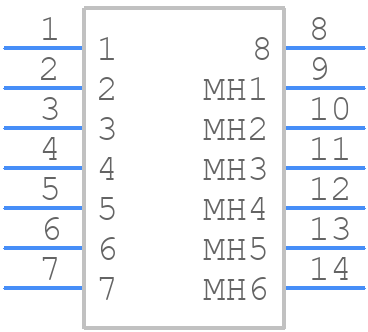

2291172-1 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

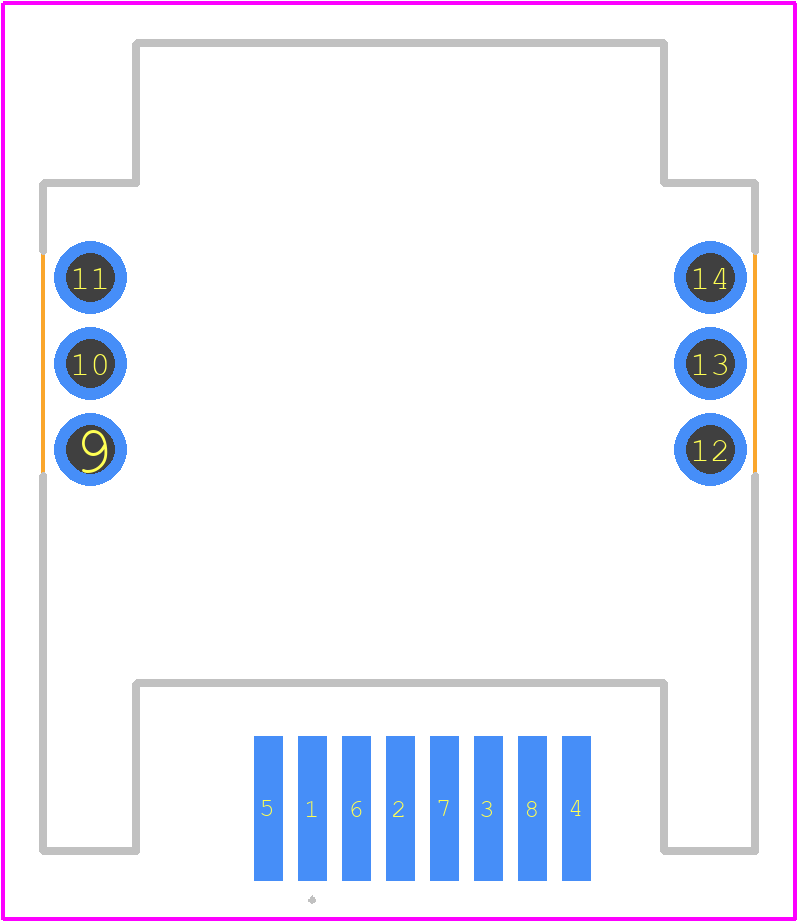

2291172-1 - TE Connectivity PCB footprint - Other - Other - 2291172-1-3
click to zoom
3D Models
2291172-1 - TE Connectivity - 3D model - Other - 2291172-1-3
click to zoom

2291172-1 Details

  • Manufacturer Part Number:

    2291172-1

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    8 Weeks, 6 Days

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    6.9

  • Body Breadth:

    0.701 inch

  • Body Length:

    0.795 inch

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Gender:

    MALE

  • Contact Material:

    NOT APPLICABLE

  • DIN Conformance:

    NO

  • EMI Shielded:

    NO

  • Empty Shell:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    115/230VAC

  • Mixed Contacts:

    NO

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Ports:

    1

  • Number of Rows Loaded:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -30 °C

  • Option:

    GENERAL PURPOSE

  • Panel Mount:

    NO

  • Rated Voltage:

    12 V

  • Reference Standard:

    UL

  • Terminal Pitch:

    2.2 mm

  • Termination Type:

    SURFACE MOUNT

  • UL Flammability Code:

    94V-0

2291172-1 Frequently Asked Questions (FAQs)

  • The recommended torque value for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs). It's essential to follow this torque specification to ensure reliable connections and prevent damage to the connector.
  • Yes, the 2291172-1 connector is designed to withstand high-vibration environments. It meets the IEC 61373 Cat 2 vibration standard, making it suitable for use in applications such as transportation, industrial, and aerospace.
  • The 2291172-1 connector has an operating temperature range of -40°C to 125°C (-40°F to 257°F). This makes it suitable for use in a wide range of applications, from industrial to automotive and aerospace.
  • The 2291172-1 connector has a IP67 rating, which means it is protected against dust and water ingress. Additionally, it is designed to withstand exposure to chemicals and fuels, making it suitable for use in harsh environments.
  • The 2291172-1 connector has a mating cycle life of 500 cycles minimum. This means it can withstand repeated mating and unmating without compromising its performance or reliability.
