2291362-1 - TE Connectivity

Description: Body Features: Connector & Keying Code A | Primary Product Color Black | Configuration Features: PCB Mount Orientation Right Angle | Number of Positions 4 | Number of Rows 2 | Contact Features: Mating Pin Diameter .024 INCH | Mating Pin Diameter .63 MM | Contact Current Rating (Max) 2.5 AMP | Contact Mating Area Plating Material Gold | Housing Features: Centerline (Pitch) 2 MM | Centerline (Pitch) .078 INCH | Mechanical Attachment: Connector Mounting Type Board Mount | Operation/Application: Shielded Yes |

Download 2291362-1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
2291362-1 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

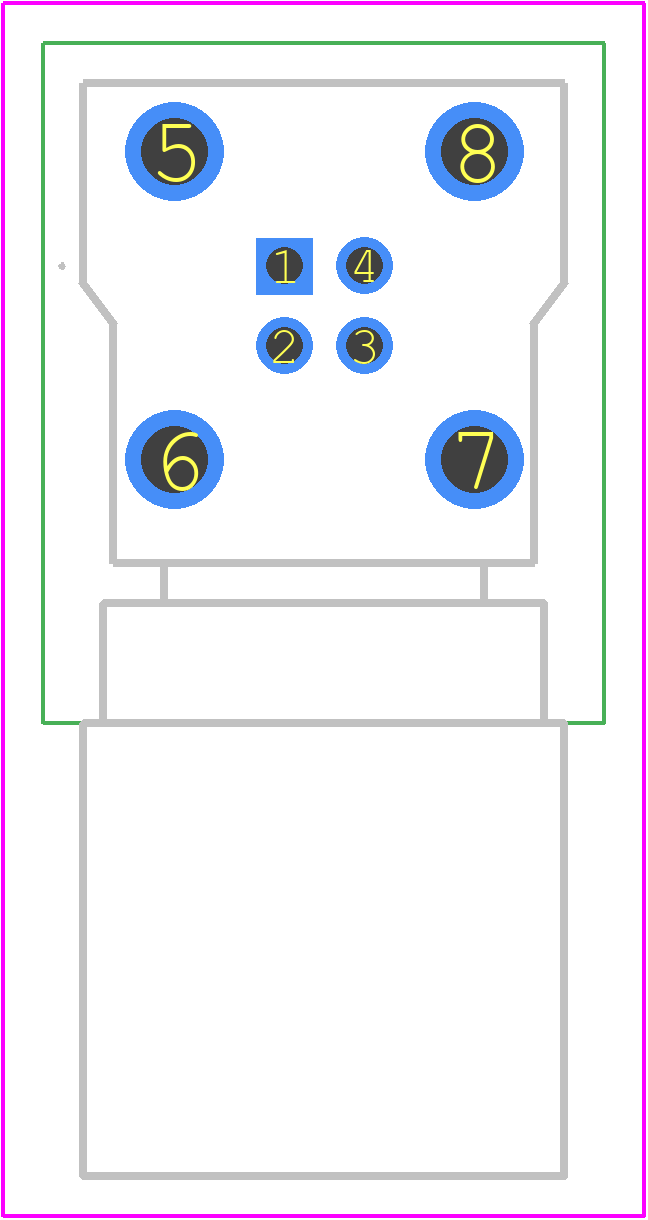

2291362-1 - TE Connectivity PCB footprint - Other - Other - 2291362-1-2
click to zoom
3D Models
2291362-1 - TE Connectivity - 3D model - Other - 2291362-1-2
click to zoom

2291362-1 Details

  • Manufacturer Part Number:

    2291362-1

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    TE Connectivity

  • Connector Type:

    COMBINATION LINE CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Material:

    NOT APPLICABLE

  • DIN Conformance:

    NO

  • EMI Shielded:

    YES

  • Empty Shell:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    2.5A

  • Mixed Contacts:

    NO

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number of Ports:

    1

  • Number of Rows Loaded:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Option:

    GENERAL PURPOSE

  • Panel Mount:

    NO

  • Rated Current (Signal):

    2.5 A

  • Terminal Pitch:

    2 mm

  • Termination Type:

    SOLDER

2291362-1 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs). It's essential to follow this torque specification to ensure reliable connections and prevent damage to the connector.
  • Yes, the 2291362-1 connector is designed to withstand vibrations and is suitable for use in applications with moderate to high vibration levels. However, it's essential to follow proper mounting and installation procedures to ensure the connector remains secure.
  • The 2291362-1 connector has a rating of IP20, which means it provides some protection against solid objects and fingers, but it's not fully sealed against moisture or water. For outdoor use, it's recommended to use additional protection, such as a conformal coating or a sealed enclosure, to ensure the connector's reliability.
  • While the datasheet specifies AWG 20-24 wire sizes, the connector can accommodate a range of wire sizes. However, it's essential to verify the wire size and insulation diameter to ensure proper fit and connection reliability. Consult with TE Connectivity or a qualified engineer for specific guidance.
  • The 2291362-1 connector has an operating temperature range of -40°C to 125°C (-40°F to 257°F). It's essential to ensure the connector is used within this temperature range to maintain its performance and reliability.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

2291362-1 Overview

Use the download button to access the 2291362-1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 22913, or try a keyword search, such as Combination Line Connectors
