2291364-1 - TE Connectivity

Description: Board-to-Board / Wire-to-Board, Shielded, Vertical, 4 Position, Board Mount, A Code, 2 mm [.07 in] Centerline, Signal, Data Connectivity Headers

Download 2291364-1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
2291364-1 - TE Connectivity - PCB symbol
click to zoom

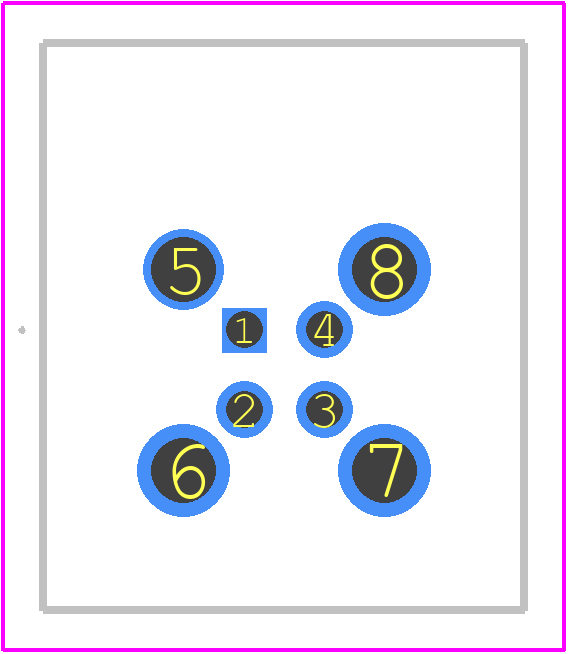

PCB Footprints
2291364-1 - TE Connectivity PCB footprint - Other - Other - 2291364-1-1
click to zoom
3D Models
2291364-1 - TE Connectivity - 3D model - Other - 2291364-1-1
click to zoom

2291364-1 Details

  • Manufacturer Part Number:

    2291364-1

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    TE Connectivity

  • Connector Type:

    COMBINATION LINE CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Material:

    NOT APPLICABLE

  • DIN Conformance:

    NO

  • EMI Shielded:

    YES

  • Empty Shell:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    2.5A

  • Mixed Contacts:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number of Ports:

    1

  • Number of Rows Loaded:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Option:

    GENERAL PURPOSE

  • Panel Mount:

    NO

  • Rated Current (Signal):

    2.5 A

  • Terminal Pitch:

    2 mm

  • Termination Type:

    SOLDER

2291364-1 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs) to ensure secure connections.
  • Yes, the 2291364-1 connector is designed to withstand high-vibration environments, with a tested vibration resistance of 10-2000 Hz, 10G peak acceleration.
  • Yes, the 2291364-1 connector has a IP67 rating, making it suitable for outdoor use and providing protection against dust and water ingress.
  • The operating temperature range for the 2291364-1 connector is -40°C to 125°C (-40°F to 257°F), making it suitable for a wide range of applications.
  • While the datasheet specifies AWG 20-24 wire sizes, the connector can accommodate other wire sizes with the use of adapters or specialized tooling. However, it's recommended to consult with TE Connectivity or a qualified engineer to ensure compatibility.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

2291364-1 Overview

Use the download button to access the 2291364-1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 22913, or try a keyword search, such as Combination Line Connectors

About TE Connectivity

TE Connectivity, a global leader in connectivity and sensor solutions, designs and manufactures products that enable a more connected world. Serving a diverse range of industries, including automotive, industrial, medical, aerospace, and telecommunications, TE Connectivity offers a broad portfolio of products such as connectors, sensors, relays, and passive components. The company's innovations help improve the reliability and performance of electronic systems.
