2298127-1 - TE Connectivity

Description: Configuration Features: Port Matrix Configuration 1 x 1 | Number of Ports 1 | Number of Positions 36 | Contact Features: Contact Current Rating (Max) .5 AMP

Download 2298127-1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

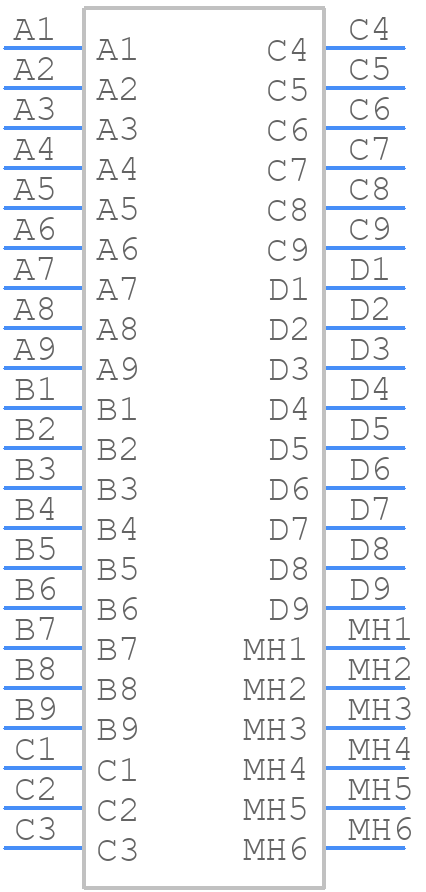

2298127-1 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

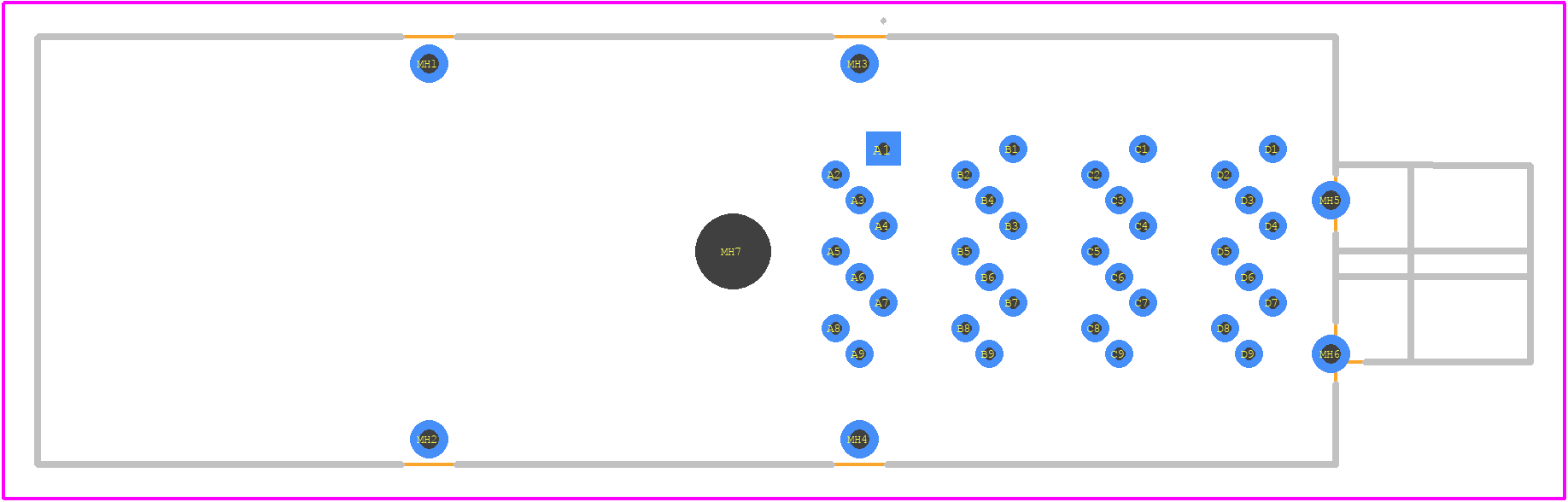

2298127-1 - TE Connectivity PCB footprint - Other - Other - 2298127-1-3
click to zoom
3D Models
2298127-1 - TE Connectivity - 3D model - Other - 2298127-1-3
click to zoom

2298127-1 Details

  • Manufacturer Part Number:

    2298127-1

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Manufacturer:

    TE Connectivity

  • Connector Support Type:

    CONNECTOR ACCESSORY

  • Design Use:

    SIGNAL

  • Material:

    COPPER ALLOY

  • Mounting Style:

    RIGHT ANGLE

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -55 °C

  • Rated Current:

    0.5 A

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

2298127-1 Overview

Use the download button to access the 2298127-1 schematic symbol, PCB footprint, and 3D model.
