The recommended torque value for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs). It's essential to follow this value to ensure reliable connections and prevent damage to the connector.
Yes, the 2299870-8 connector is designed to withstand high-vibration environments. It meets the IEC 61373 Cat 2 standard for vibration resistance, making it suitable for use in applications such as rail, industrial, and automotive.
The operating temperature range for the 2299870-8 connector is -40°C to 125°C (-40°F to 257°F). It's essential to ensure that the connector is used within this temperature range to maintain its performance and reliability.
Yes, the 2299870-8 connector is designed to operate in harsh environments. It has a IP67 rating, which means it can withstand exposure to dust and water immersion up to 1 meter for 30 minutes. Additionally, it has a salt spray resistance of 720 hours, making it suitable for use in coastal or high-corrosion environments.
Yes, the 2299870-8 connector can be used with wire sizes ranging from 16 AWG to 20 AWG. However, it's essential to follow the recommended wire stripping lengths and torque values to ensure reliable connections.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
2299870-8 Overview

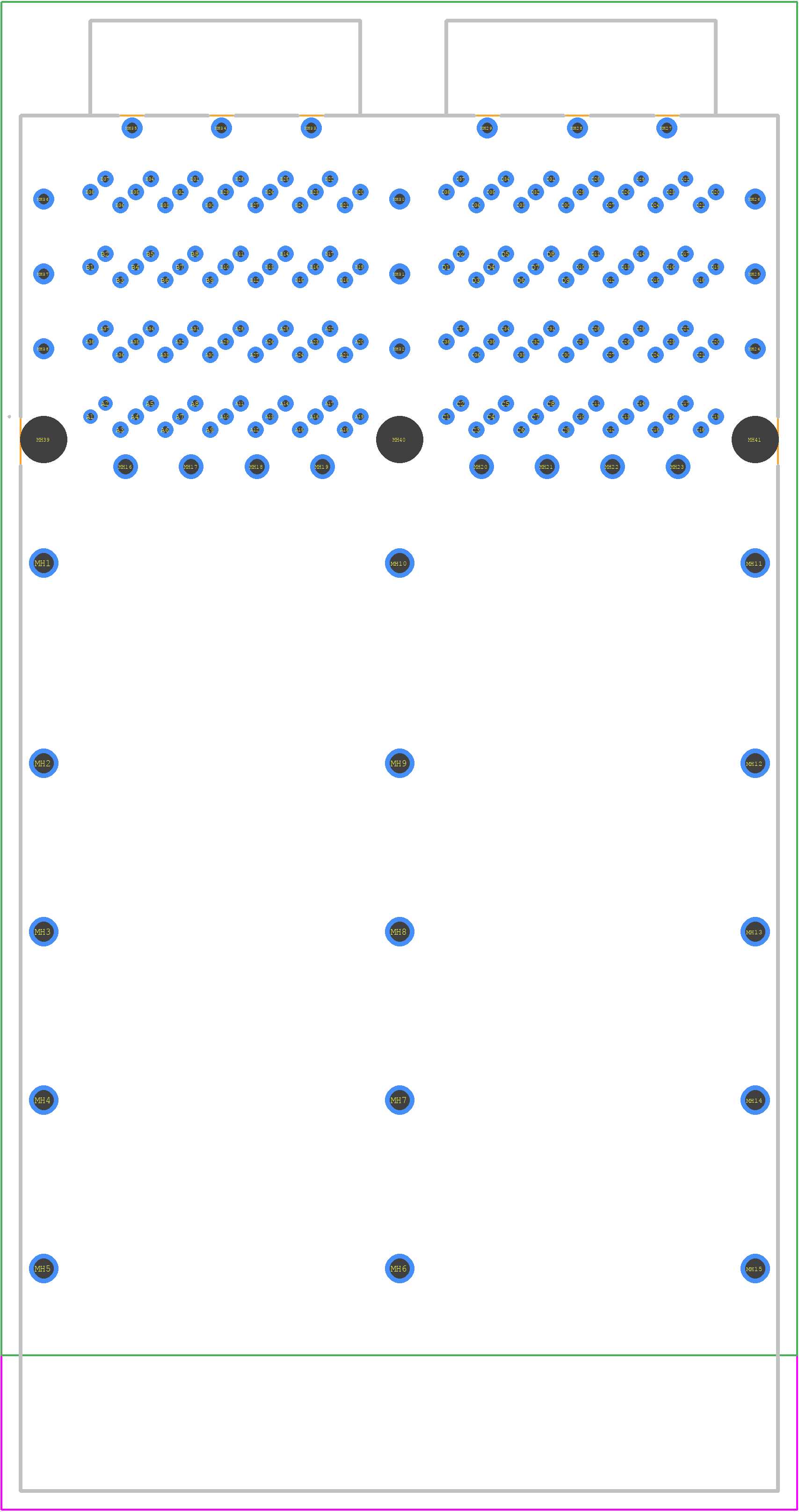

Use the download button to access the 2299870-8 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 22998,
or try a keyword search, such as Assembly Items
About TE Connectivity
TE Connectivity, a global leader in connectivity and sensor solutions, designs and manufactures products that enable a more connected world. Serving a diverse range of industries, including automotive, industrial, medical, aerospace, and telecommunications, TE Connectivity offers a broad portfolio of products such as connectors, sensors, relays, and passive components. The company's innovations help improve the reliability and performance of electronic systems.
