229A30 - Hammond Manufacturing

Description: Power Transformers Transformer, PCB mount, low profile, 6VA, 30V C.T. @ 200ma, 15V @ 400ma

Download 229A30 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

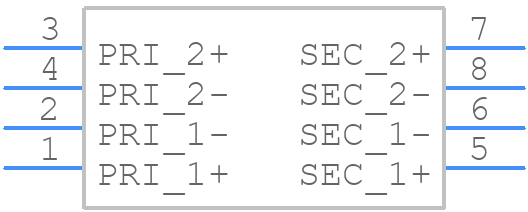

Symbol
229A30 - Hammond Manufacturing - PCB symbol
click to zoom

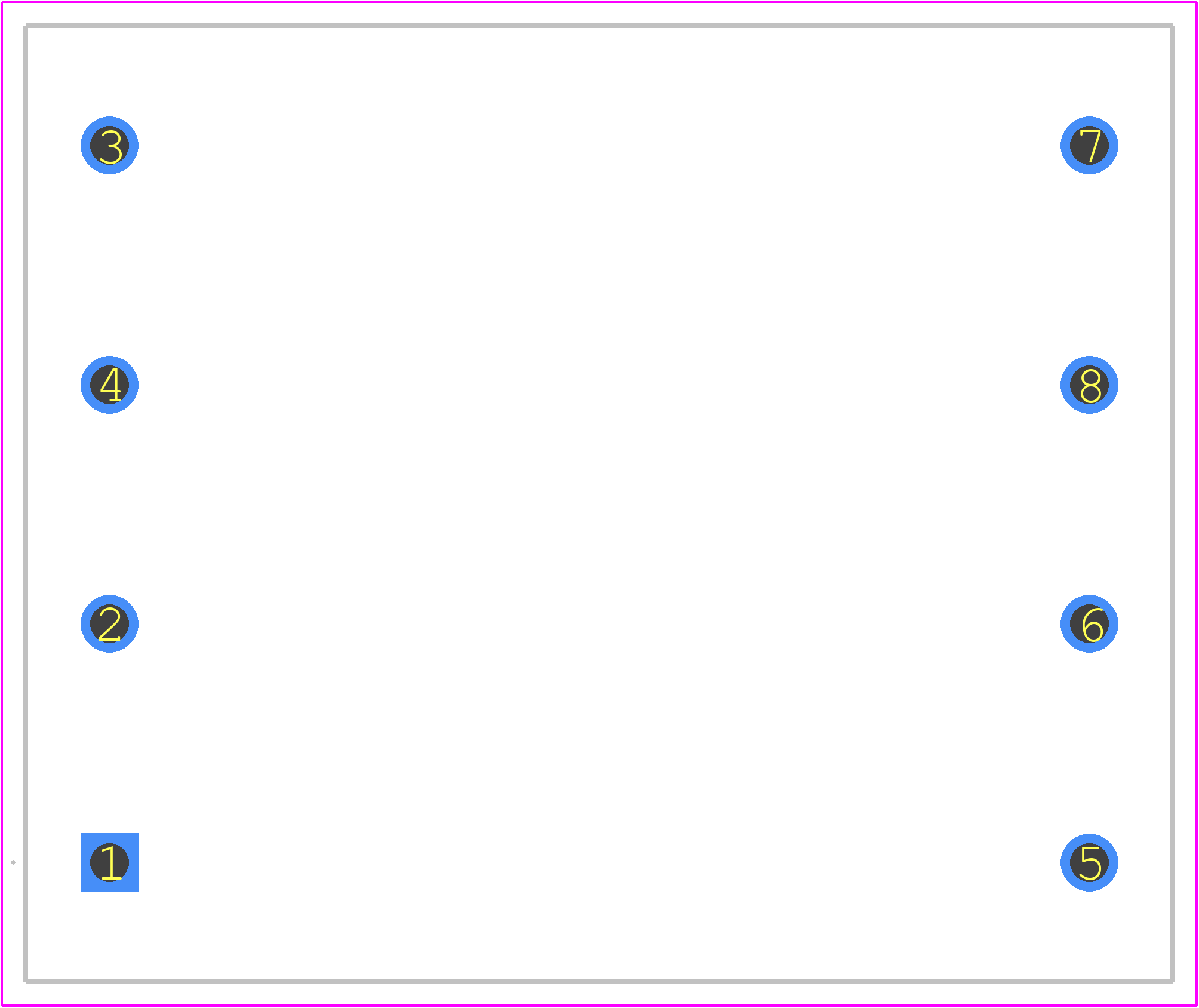

PCB Footprints
229A30 - Hammond Manufacturing PCB footprint - Other - Other - 48 x 40 x 22mm
click to zoom
3D Models
229A30 - Hammond Manufacturing - 3D model - Other - 48 x 40 x 22mm
click to zoom

229A30 Details

  • Manufacturer Part Number:

    229A30

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.31.40.35

  • Manufacturer:

    Hammond Manufacturing

  • YTEOL:

    5.83

  • Approvals:

    CUL; UL

  • Center Tap Feature 1:

    NO

  • Center Tap Feature 2:

    NO

  • Height:

    21.59 mm

  • Input Voltage-Nom:

    230 V

  • Isolation Voltage:

    1750 V

  • Length:

    47.752 mm

  • Mounting Feature:

    THROUGH HOLE MOUNTED

  • Number of Secondary Winding:

    2

  • Output Current 1:

    0.4 A

  • Output Voltage 1:

    15 V

  • Output Voltage 2:

    15 V

  • Primary Rating:

    DUAL 115V

  • Surface Mount:

    NO

  • Transformer Type:

    SPLIT BOBBIN POWER TRANSFORMER

  • VA Rating:

    6 VA

  • Width:

    39.624 mm

229A30 Frequently Asked Questions (FAQs)

  • The recommended torque for the screws on the 229A30 is 10-12 in-lbs (1.1-1.4 Nm).
  • Yes, the 229A30 is designed to withstand high-vibration environments. However, it's recommended to follow the manufacturer's guidelines for mounting and installation to ensure optimal performance.
  • The 229A30 is designed for indoor use, but it can be used outdoors if properly protected from environmental factors such as moisture, extreme temperatures, and UV radiation. Consult with the manufacturer for specific guidance on outdoor use.
  • The maximum operating temperature for the 229A30 is 130°C (266°F). Exceeding this temperature may affect the performance and lifespan of the component.
  • The 229A30 is designed to operate in environments with relative humidity up to 95%. However, it's recommended to take precautions to prevent moisture ingress and ensure proper sealing to maintain optimal performance.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

229A30 Overview

Use the download button to access the 229A30 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 229A3, or try a keyword search, such as Power/Mains Transformers
