229A34 - Hammond Manufacturing

Description: Power Transformers Transformer, PCB mount, low profile, 6VA, 34V C.T. @ 170ma, 17V @ 340ma

Download 229A34 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

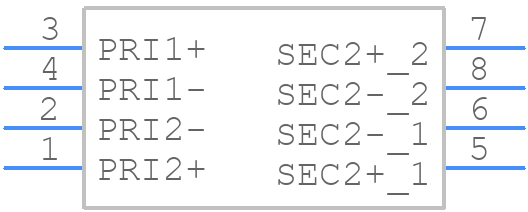

229A34 - Hammond Manufacturing - PCB symbol
click to zoom
PCB Footprints

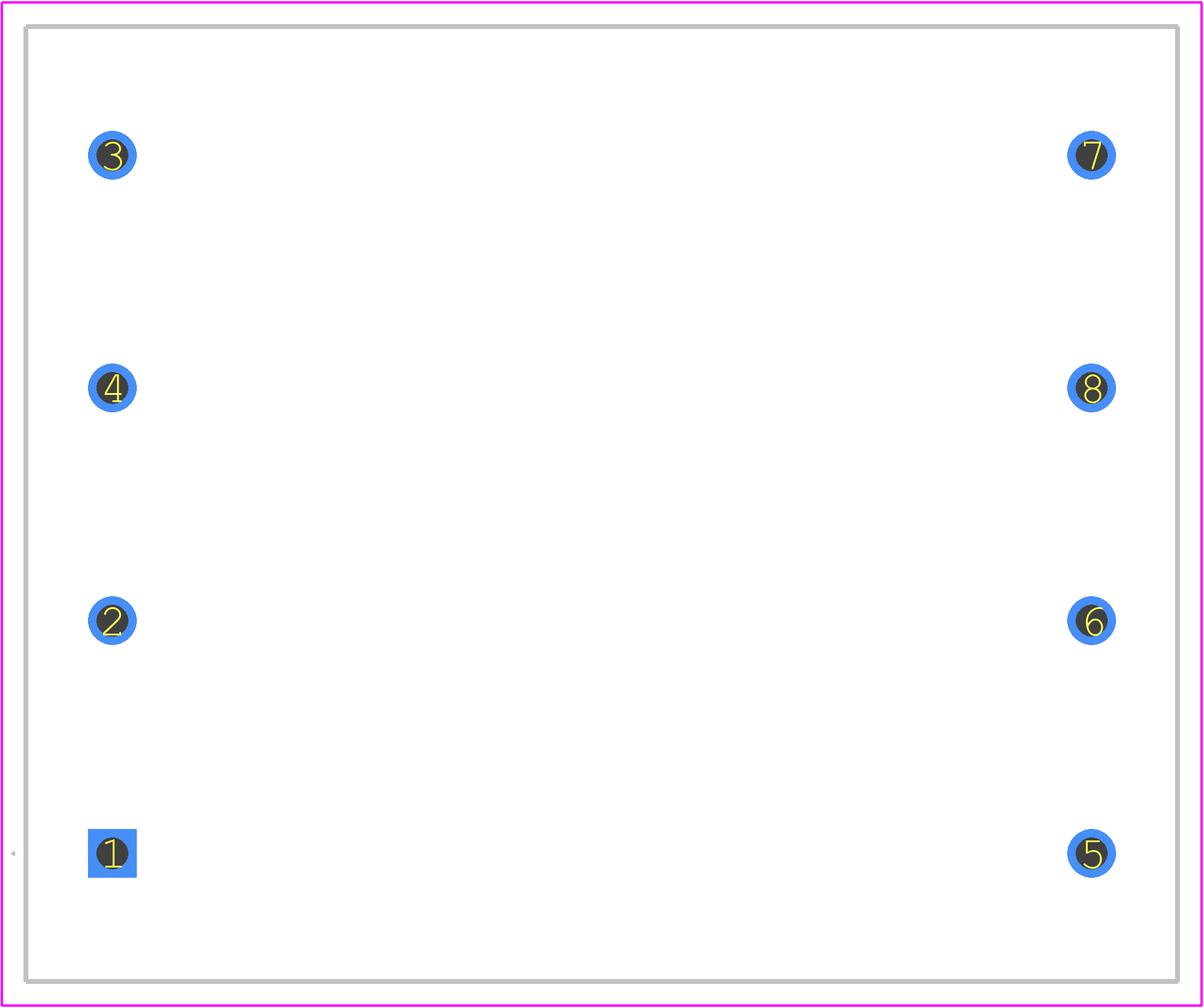

229A34 - Hammond Manufacturing PCB footprint - Other - Other - 229A34-4
click to zoom
3D Models
229A34 - Hammond Manufacturing - 3D model - Other - 229A34-4
click to zoom

229A34 Details

  • Manufacturer Part Number:

    229A34

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.31.40.35

  • Manufacturer:

    Hammond Manufacturing

  • YTEOL:

    5.83

  • Approvals:

    CUL; UL

  • Center Tap Feature 1:

    NO

  • Center Tap Feature 2:

    NO

  • Height:

    21.59 mm

  • Input Voltage-Nom:

    230 V

  • Isolation Voltage:

    1750 V

  • Length:

    47.752 mm

  • Mounting Feature:

    THROUGH HOLE MOUNTED

  • Number of Secondary Winding:

    2

  • Output Current 1:

    0.34 A

  • Output Voltage 1:

    17 V

  • Output Voltage 2:

    17 V

  • Primary Rating:

    DUAL 115V

  • Surface Mount:

    NO

  • Transformer Type:

    SPLIT BOBBIN POWER TRANSFORMER

  • VA Rating:

    6 VA

  • Width:

    39.624 mm

229A34 Frequently Asked Questions (FAQs)

  • The recommended torque for the screws on the 229A34 is 10-12 in-lbs (1.1-1.4 Nm).
  • Yes, the 229A34 is designed to withstand high-vibration environments. However, it's recommended to follow the mounting instructions and ensure the enclosure is properly secured to prevent damage or dislodging.
  • The 229A34 is not designed for outdoor use and should be used in a controlled indoor environment. If outdoor use is required, consider using a weather-resistant or waterproof enclosure.
  • Yes, Hammond Manufacturing offers customization services for the 229A34. Contact their customer support or a authorized distributor to discuss your specific requirements and obtain a quote.
  • The operating temperature range for the 229A34 is -20°C to 80°C (-4°F to 176°F).
