229D24 - Hammond Manufacturing

Description: Power Transformers LOW PROFILE

Download 229D24 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
229D24 - Hammond Manufacturing - PCB symbol
click to zoom
PCB Footprints

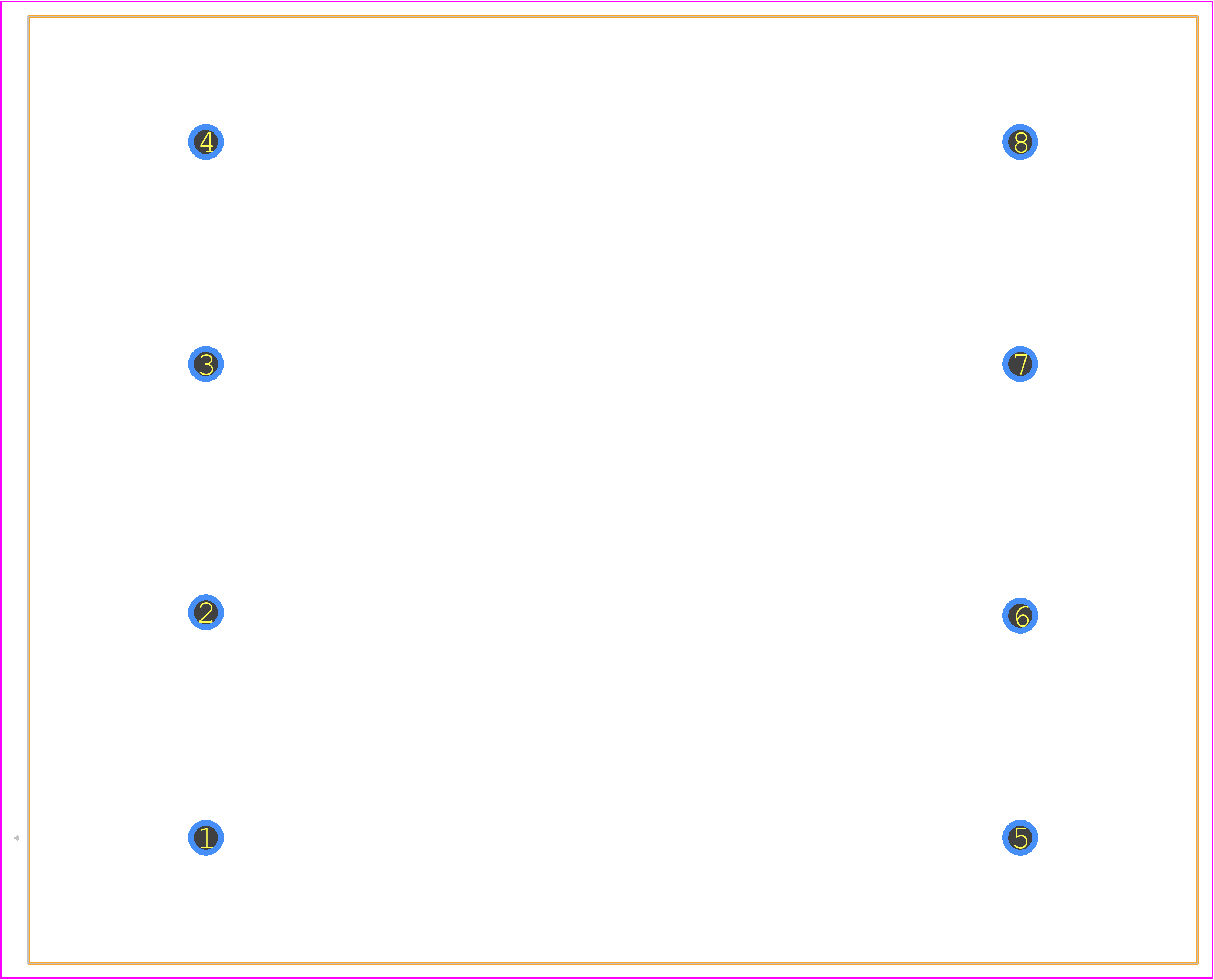

229D24 - Hammond Manufacturing PCB footprint - Other - Other - 229D24-1
click to zoom
3D Models
229D24 - Hammond Manufacturing - 3D model - Other - 229D24-1
click to zoom

229D24 Details

  • Manufacturer Part Number:

    229D24

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.31.40.65

  • Manufacturer:

    Hammond Manufacturing

  • YTEOL:

    5.83

  • Approvals:

    CUL; UL

  • Center Tap Feature 1:

    NO

  • Center Tap Feature 2:

    NO

  • Height:

    35.052 mm

  • Input Voltage-Nom:

    230 V

  • Isolation Voltage:

    1750 V

  • Length:

    79.248 mm

  • Mounting Feature:

    THROUGH HOLE MOUNTED

  • Number of Secondary Winding:

    2

  • Output Current 1:

    4 A

  • Output Voltage 1:

    12 V

  • Output Voltage 2:

    12 V

  • Primary Rating:

    DUAL 115V

  • Surface Mount:

    NO

  • Transformer Type:

    SPLIT BOBBIN POWER TRANSFORMER

  • VA Rating:

    48 VA

  • Width:

    63.5 mm

229D24 Frequently Asked Questions (FAQs)

  • The recommended torque for the screws on the 229D24 is 10-12 in-lbs (1.1-1.4 Nm). It's essential to follow this torque specification to ensure proper assembly and prevent damage to the enclosure.
  • While the 229D24 is designed for indoor use, it can be used in outdoor applications with proper protection. You'll need to add additional weatherproofing measures, such as sealing the seams and applying a protective coating, to ensure the enclosure can withstand environmental factors like moisture and UV exposure.
  • The maximum weight capacity of the 229D24 is approximately 20 lbs (9 kg). Exceeding this weight limit can cause the enclosure to deform or fail, so it's crucial to ensure that the total weight of the installed components does not exceed this threshold.
  • Yes, Hammond Manufacturing offers customization options for the 229D24, including additional holes or cutouts. You can contact their customer service or sales team to discuss your specific requirements and receive a quote for the customized enclosure.
  • The 229D24 is designed for use in temperatures ranging from -20°C to 80°C (-4°F to 176°F). While it can tolerate some temperature fluctuations, it's not suitable for high-temperature applications above 80°C. If you need an enclosure for high-temperature use, consider Hammond's high-temperature-rated enclosures or consult with their technical support team for guidance.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

229D24 Overview

Use the download button to access the 229D24 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 229D2, or try a keyword search, such as Power/Mains Transformers
