22R224MC - Murata Electronics

22R224MC Frequently Asked Questions (FAQs)

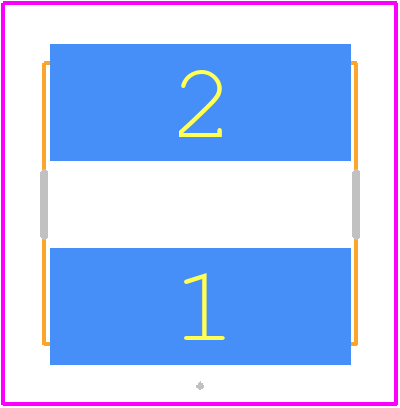

• What is the recommended land pattern for the 22R224MC?
  Murata recommends a land pattern with a pad size of 2.5mm x 1.25mm, with a spacing of 0.5mm between pads. Refer to Murata's recommended land pattern document for more details.
• Can I use the 22R224MC in a high-temperature environment?
  The 22R224MC is rated for operation up to 125°C, but derating is required above 85°C. Consult the datasheet for specific derating guidelines and ensure the capacitor meets your application's temperature requirements.
• How do I handle the 22R224MC during PCB assembly to prevent damage?
  Handle the capacitor by the body, avoiding touching the terminals. Use a vacuum pick-up or tweezers to prevent mechanical stress. Ensure the PCB is clean and dry before assembly, and avoid applying excessive force or bending during placement.
• What is the equivalent series resistance (ESR) of the 22R224MC?
  The ESR of the 22R224MC is not explicitly stated in the datasheet, but it can be estimated to be around 10-20 mΩ based on similar Murata capacitors. For precise ESR values, contact Murata's technical support or consult their application notes.
• Can I use the 22R224MC in a high-vibration or shock-prone environment?
  The 22R224MC is designed to withstand moderate vibration and shock, but its performance may degrade under extreme conditions. Consult Murata's reliability data and perform environmental testing to ensure the capacitor meets your application's requirements.
