Symbol

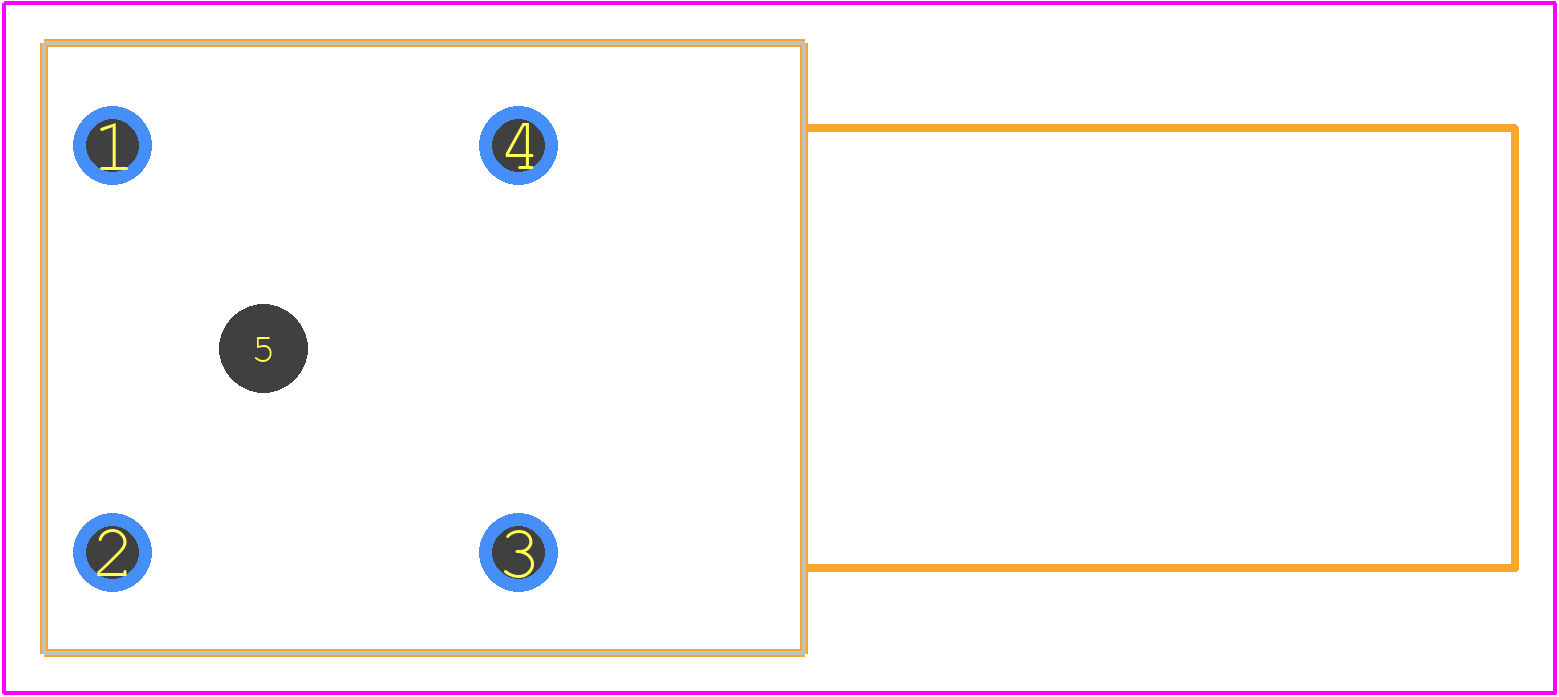

PCB Footprints
- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for 23.3200-21
- Part Number 23.3200-21
- Manufacturer MULTI-CONTACT
- Pin Count 4
- Part Category Connector
- Package Category Other
- Footprint Name Other - 23.3200-21-1
- Released Date Mar 18, 2019
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
23.3200-21 Details
-
Manufacturer Part Number:
23.3200-21
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Transferred
-
ECCN Code:
EAR99
-
Manufacturer:
Multi-Contact AG
-
Connector Type:
BANANA JACK
23.3200-21 Frequently Asked Questions (FAQs)
-
The recommended torque for tightening the 23.3200-21 connector is 0.6 Nm to 1.2 Nm, depending on the specific application and environmental conditions.
-
Yes, the 23.3200-21 connector is designed to withstand high-vibration environments and meets the requirements of IEC 61373 Cat. 1, Class B.
-
Yes, the 23.3200-21 connector is designed to operate in harsh environments, with a temperature range of -40°C to 125°C and humidity up to 95% RH.
-
The 23.3200-21 connector is designed to be compatible with other connectors that meet the IEC 61076-2-101 standard, but compatibility should be verified on a case-by-case basis.
-
The maximum current rating of the 23.3200-21 connector is 10 A per contact, depending on the specific application and environmental conditions.
Trust Checks
Expert Contribution
System Verified
Community Approved
23.3200-21 Overview
Use the download button to access the 23.3200-21 schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like 23.32,
or try a keyword search, such as Other Interconnects
