2300292-1 - TE Connectivity

Description: Body Features: Connector & Keying Code B | Primary Product Color Natural | Configuration Features: Number of Rows 2 | Number of Signal Positions 10 | PCB Mount Orientation Horizontal | Number of Positions 10 | Number of Sections 1 | Contact Features: Mating Tab Thickness .4 MM | Contact Current Rating (Max) 3 AMP | Contact Mating Area Plating Material Tin | Mating Tab Width .5 MM | Mating Tab Thickness .016 INCH | Contact Type Tab | Mating Tab Width .02 INCH | Contact Size .5mm | Dimensions: Profile Height

Download 2300292-1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
2300292-1 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

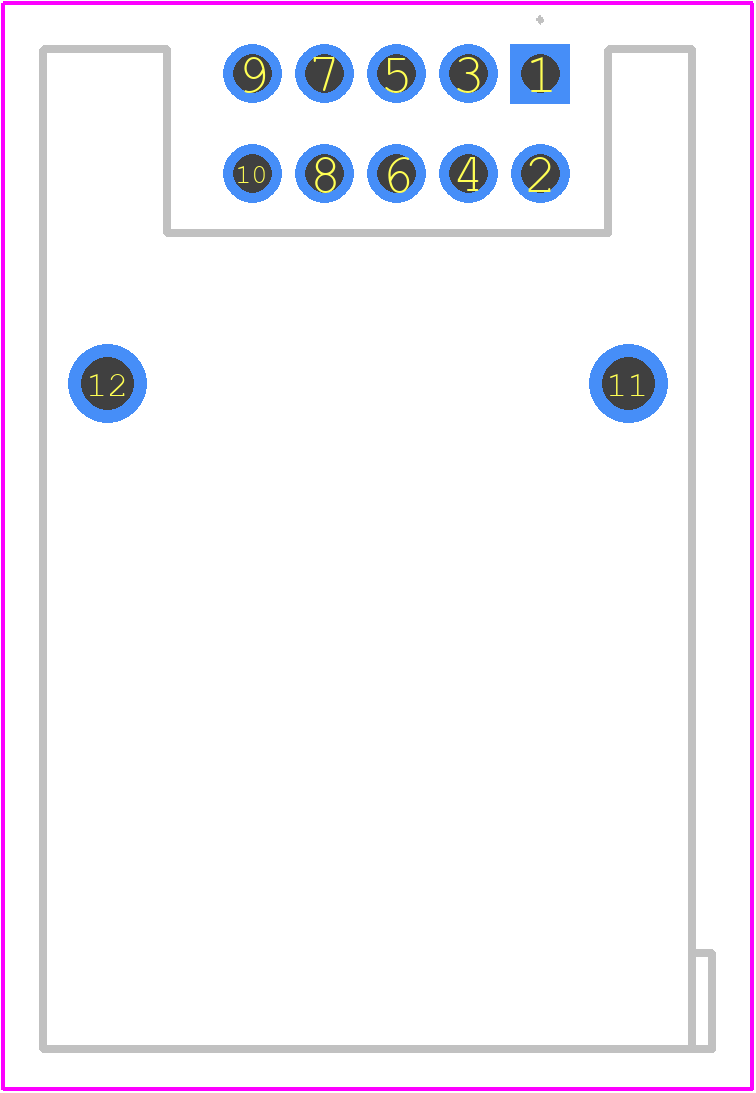

2300292-1 - TE Connectivity PCB footprint - Other - Other - 2300292-1-3
click to zoom
3D Models
2300292-1 - TE Connectivity - 3D model - Other - 2300292-1-3
click to zoom

2300292-1 Details

  • Manufacturer Part Number:

    2300292-1

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    15 Weeks, 2 Days

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    7.8

  • Body Breadth:

    6.38 inch

  • Body Length:

    5.9 inch

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Gender:

    MALE

  • Contact Material:

    NOT APPLICABLE

  • DIN Conformance:

    NO

  • EMI Shielded:

    NO

  • Empty Shell:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    3A

  • Mixed Contacts:

    NO

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Ports:

    1

  • Number of Rows Loaded:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Option:

    GENERAL PURPOSE

  • Panel Mount:

    NO

  • Rated Current (Signal):

    3 A

  • Rated Voltage:

    24 V

  • Terminal Pitch:

    1.8 mm

  • Termination Type:

    SOLDER

2300292-1 Frequently Asked Questions (FAQs)

  • The recommended torque value for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs). It's essential to follow this torque specification to ensure reliable connections and prevent damage to the connector.
  • Yes, the 2300292-1 connector is designed to withstand high-vibration environments. It meets the IEC 61373 Cat 2 vibration standard, making it suitable for use in applications such as transportation, industrial, and aerospace.
  • While the datasheet specifies AWG 20-24 wire sizes, the connector can accommodate a range of wire sizes. However, it's essential to consult with TE Connectivity or a qualified engineer to determine the suitability of the connector for specific wire sizes and applications.
  • The 2300292-1 connector has an operating temperature range of -40°C to 125°C (-40°F to 257°F). This makes it suitable for use in a wide range of applications, from industrial to automotive and aerospace.
  • Yes, it's recommended to clean the connector with a soft brush and a mild detergent solution to remove dirt and debris. Avoid using harsh chemicals or abrasive materials that can damage the connector's surface. Regular cleaning and inspection can help ensure reliable connections and extend the connector's lifespan.
