Bourns provides a recommended PCB layout and land pattern in their application notes. It's essential to follow these guidelines to ensure proper thermal management, minimize parasitic inductance, and optimize performance.
To minimize electromagnetic interference (EMI), keep the inductor at least 5 mm away from sensitive components. You can also use shielding techniques, such as copper tape or mu-metal shielding, to contain the magnetic field.
Bourns recommends derating the voltage by 10-15% to ensure reliable operation. For the 2300HT-220-H-RC, this means not exceeding 80-85% of the rated voltage (220V) to account for voltage spikes and transients.
The 2300HT-220-H-RC is rated for operation up to 155°C. However, it's essential to consider the inductor's temperature coefficient and potential degradation of performance at elevated temperatures. Consult Bourns' application notes for guidance on high-temperature operation.
The self-resonant frequency (SRF) of the 2300HT-220-H-RC is typically around 10-15 MHz. To avoid resonance issues, ensure your design's operating frequency is below the SRF or implement damping techniques, such as adding a series resistor, to minimize resonance effects.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
2300HT-220-H-RC Overview

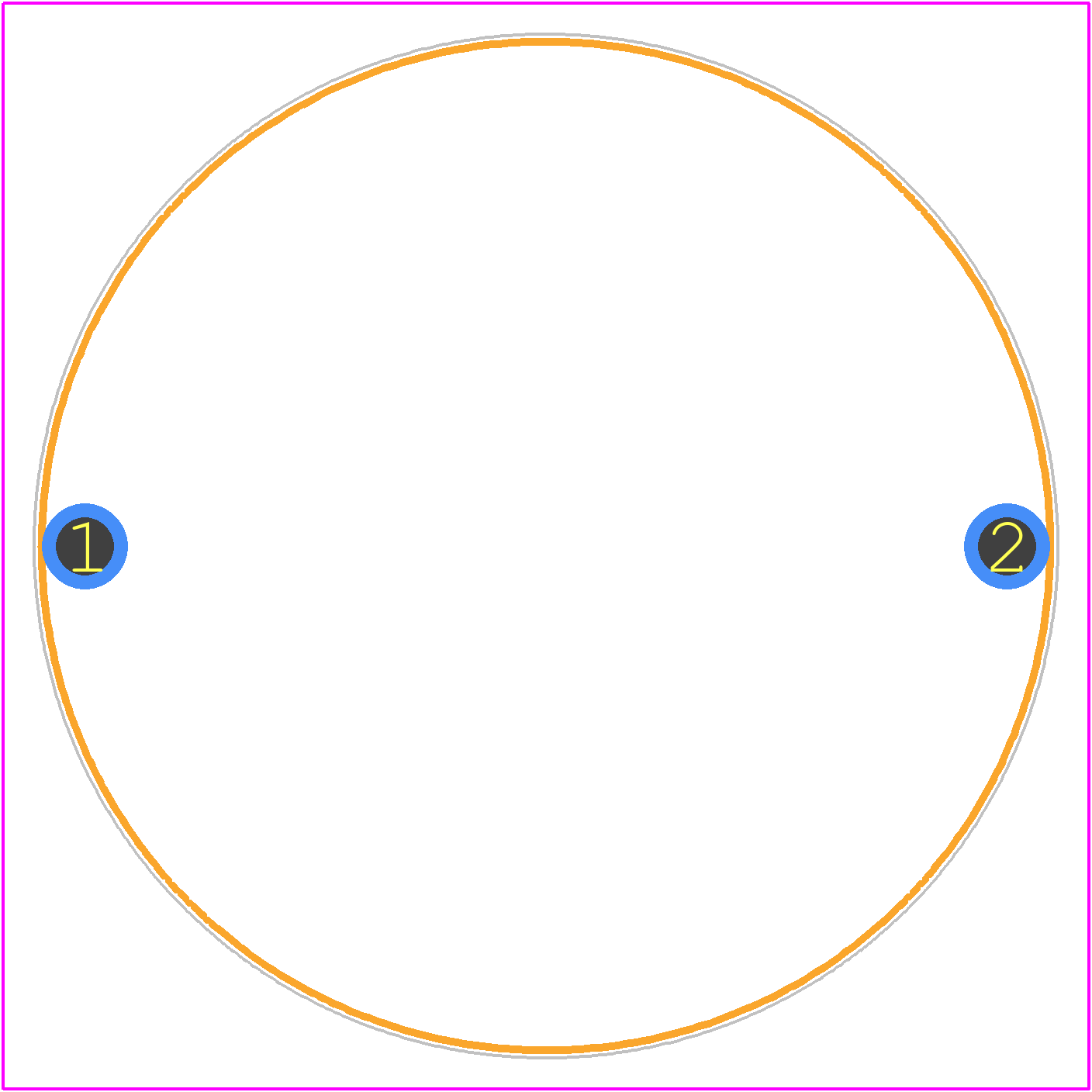

Use the download button to access the 2300HT-220-H-RC schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 2300H,
or try a keyword search, such as Fixed Inductors
