2300HT-221-H-RC - Bourns

Description: 220 µH Shielded Toroidal Inductor 6.8 A 61mOhm Max Radial, Horizontal (Open)

Download 2300HT-221-H-RC Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
2300HT-221-H-RC - Bourns - PCB symbol
click to zoom
PCB Footprints

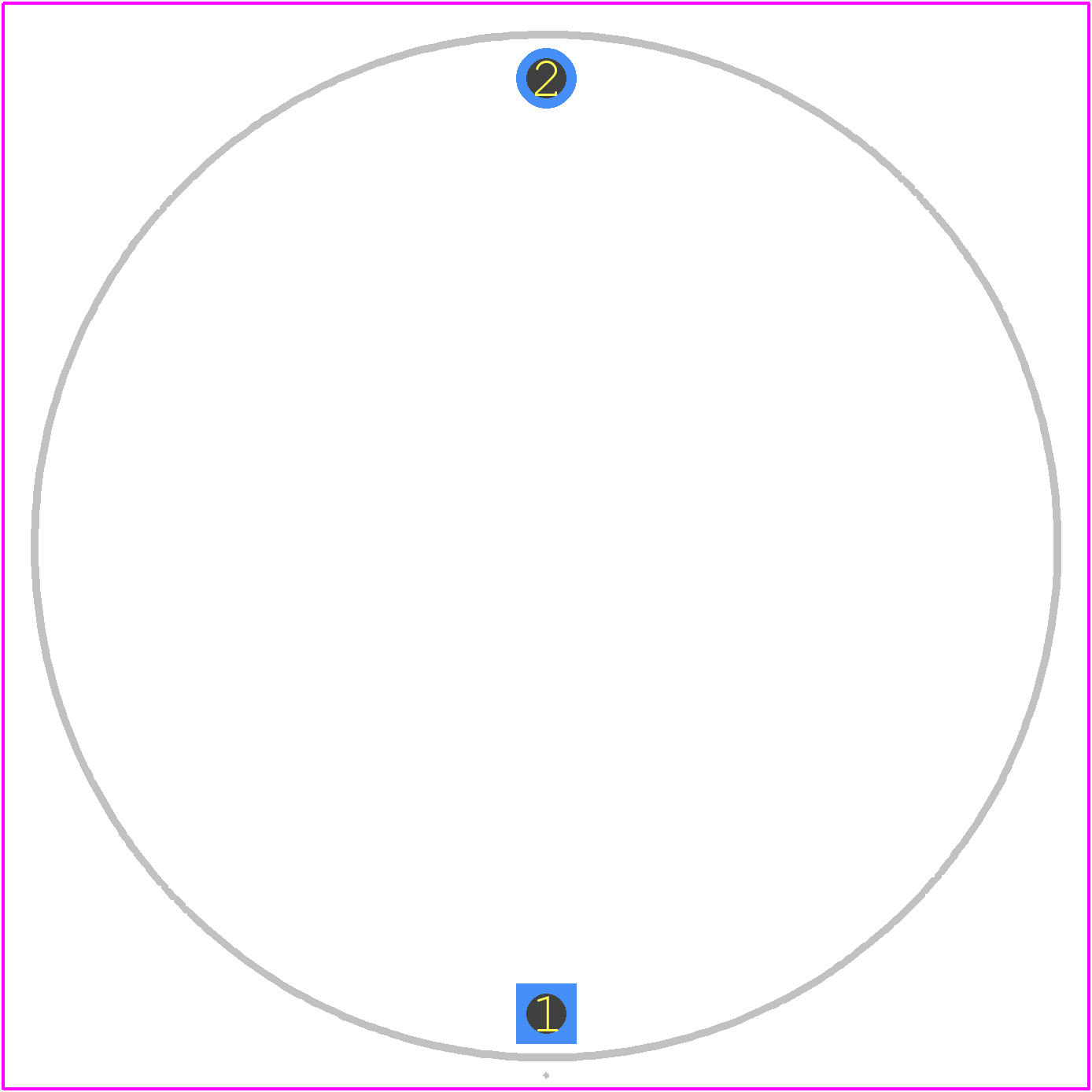

2300HT-221-H-RC - Bourns PCB footprint - Other - Other - 2300HT-221-H-RC-5
click to zoom
3D Models
2300HT-221-H-RC - Bourns - 3D model - Other - 2300HT-221-H-RC-5
click to zoom

2300HT-221-H-RC Details

  • Manufacturer Part Number:

    2300HT-221-H-RC

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    RADIAL LEADED

  • Country Of Origin:

    Tunisia

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.50.80.00

  • Factory Lead Time:

    25 Weeks

  • Manufacturer:

    Bourns Inc

  • YTEOL:

    7

  • Construction:

    Hortizontal Mount

  • DC Resistance:

    0.061 Ω

  • Inductance-Nom (L):

    220 µH

  • Inductor Application:

    HIGH CURRENT INDUCTOR

  • Inductor Type:

    GENERAL PURPOSE INDUCTOR

  • Lead Diameter:

    1.0668 mm

  • Lead Spacing:

    29.718 mm

  • Number of Functions:

    1

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    200 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Diameter:

    32.512 mm

  • Package Length:

    16.51 mm

  • Package Style:

    Toroidal

  • Rated Current-Max:

    6.8 A

  • Shape/Size Description:

    CYLINDRICAL PACKAGE

  • Shielded:

    YES

  • Surface Mount:

    NO

  • Terminal Placement:

    RADIAL

  • Terminal Shape:

    WIRE

  • Test Frequency:

    0.001 MHz

  • Tolerance:

    15%

2300HT-221-H-RC Frequently Asked Questions (FAQs)

  • The recommended soldering temperature is 260°C (500°F) with a maximum soldering time of 3 seconds. It's essential to follow the recommended soldering profile to prevent damage to the component.
  • Yes, the 2300HT-221-H-RC is designed to withstand high-vibration environments. However, it's crucial to ensure proper mounting and secure the component to prevent mechanical stress and damage.
  • Store the 2300HT-221-H-RC in a dry, cool place with a temperature range of 20°C to 30°C (68°F to 86°F) and humidity below 60%. Avoid exposing the component to direct sunlight, moisture, or extreme temperatures.
  • Yes, the 2300HT-221-H-RC is compatible with lead-free soldering processes. However, it's essential to follow the recommended soldering profile and temperature to ensure reliable assembly.
  • The typical lead time for delivery of the 2300HT-221-H-RC varies depending on the region, quantity, and availability. It's best to check with authorized distributors or Bourns Inc directly for the most up-to-date lead time information.
