Bourns provides a recommended PCB layout and land pattern in their application notes and design guides. It's essential to follow these guidelines to ensure proper thermal management, signal integrity, and reliability.
The 2300LL-102-H-RC has a high power rating, and proper thermal management is crucial. Ensure good airflow, use thermal vias, and consider adding a heat sink or thermal pad to keep the component within its operating temperature range.
Bourns recommends a soldering profile with a peak temperature of 260°C (500°F) and a dwell time of 10-30 seconds. It's essential to follow this profile to prevent damage to the component and ensure reliable solder joints.
The 2300LL-102-H-RC is designed to meet standard vibration and shock requirements, but it's essential to evaluate its performance in your specific application. Consider using additional mechanical support or potting to ensure reliability in harsh environments.
Start by reviewing the datasheet and application notes, then check the PCB layout, soldering quality, and thermal management. Use oscilloscopes and other diagnostic tools to identify the root cause of the issue. If necessary, contact Bourns' technical support for further assistance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
2300LL-102-H-RC Overview

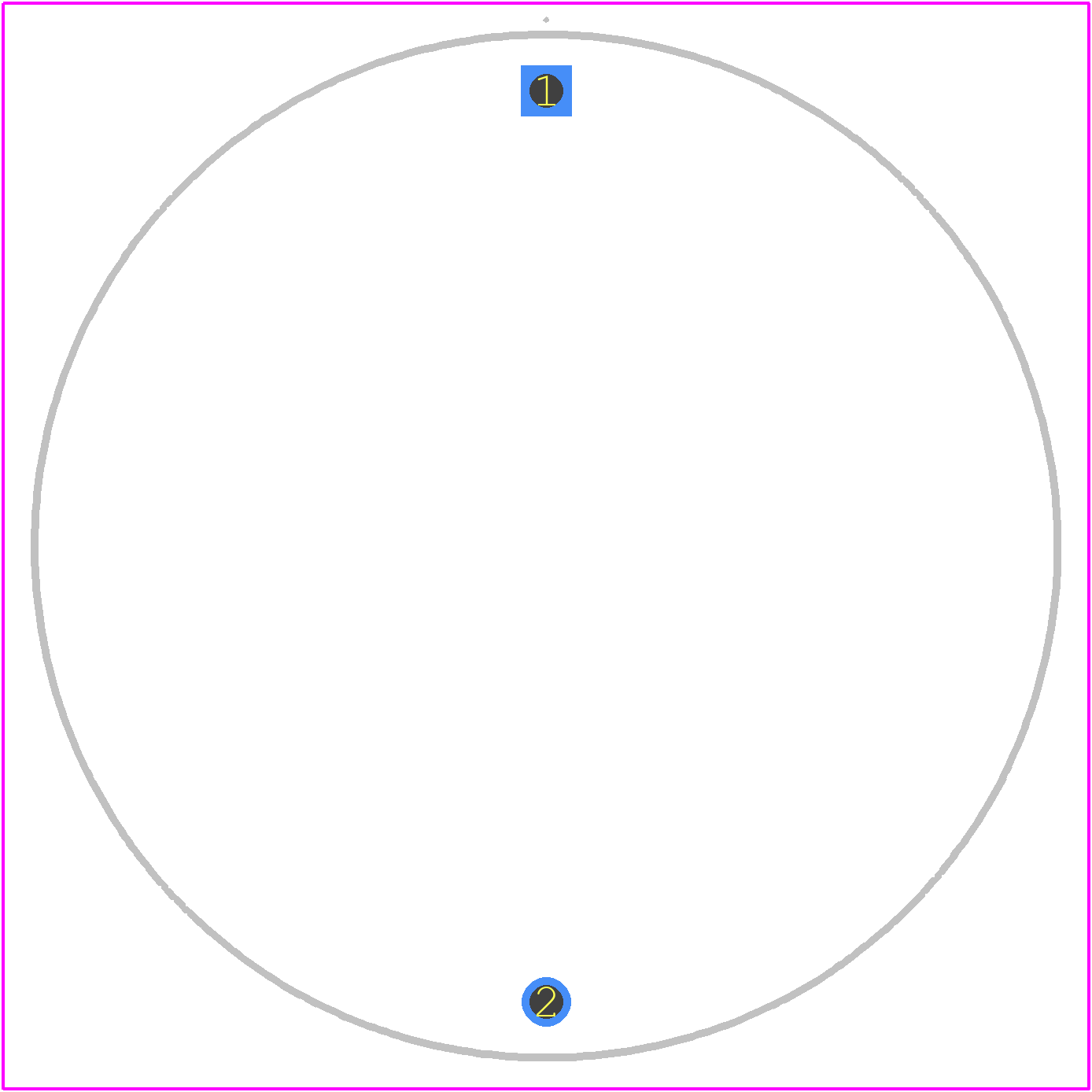

Use the download button to access the 2300LL-102-H-RC schematic symbol, PCB footprint, and 3D model.
