2301994-5 - TE Connectivity

Description: Body Features: LED Color (Bottom Right) None | Shield Plating Finish Matte | Shield Material Brass | Modular Jack Latch Orientation Inverted - Latch Up | PCB Ground Tab Location .12 INCH | Insulator Material LCP | PCB Retention Feature Material LCP | Connector Profile Standard | PCB Ground Tab Location 3.05 MM | LED Color (Top Left) None | Shield Plating Material Nickel | LED Color (Bottom Left) None | LED Color (Top Right) None | Configuration Features: Number of PCB Ground Tabs 2 | Status Light Type Not I

Download 2301994-5 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
2301994-5 - TE Connectivity - PCB symbol
click to zoom

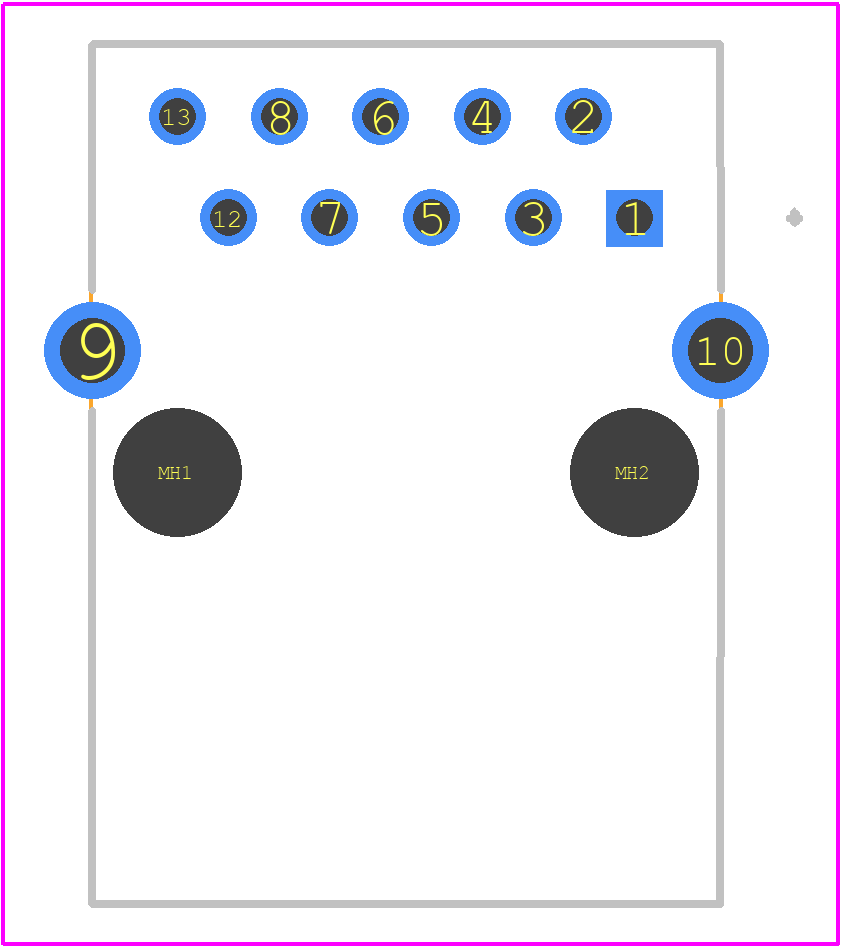

PCB Footprints
2301994-5 - TE Connectivity PCB footprint - Other - Other - 2301994-5
click to zoom
3D Models
2301994-5 - TE Connectivity - 3D model - Other - 2301994-5
click to zoom

2301994-5 Details

  • Manufacturer Part Number:

    2301994-5

  • Brand Name:

    TE Connectivity

  • Part Life Cycle Code:

    Not Recommended

  • Reach Compliance Code:

    Unknown

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    8

  • Additional Feature:

    EMI SHIELDED

  • Board Mounting Option:

    BOARD LOCK

  • Body Breadth:

    0.544 inch

  • Body Depth:

    0.543 inch

  • Body Length:

    0.627 inch

  • Body/Shell Style:

    JACK

  • Connector Type:

    RJ CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT APPLICABLE

  • Contact Pattern:

    RECTANGULAR

  • Contact Style:

    TELCOM, MODULAR

  • DIN Conformance:

    NO

  • EMI Shielded:

    YES

  • Empty Shell:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Color:

    BLACK

  • Insulator Material:

    LIQUID CRYSTAL POLYMER

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    115/230VAC

  • Mixed Contacts:

    NO

  • Mounting Option 1:

    LOCKING

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number Of PCB Rows:

    4

  • Number of Ports:

    1

  • Number of Rows Loaded:

    1

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Option:

    GENERAL PURPOSE

  • PCB Contact Pattern:

    MIXED

  • Panel Mount:

    NO

  • Plating Thickness:

    30u inch

  • Polarization Key:

    POLARIZED HOUSING

  • Reference Standard:

    UL

  • Shell Finish:

    NICKEL

  • Shell Material:

    BRASS

  • Terminal Pitch:

    2.54 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    8

  • UL Flammability Code:

    94V-0

2301994-5 Frequently Asked Questions (FAQs)

  • The recommended torque value for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs). It's essential to follow this torque specification to ensure reliable connections and prevent damage to the connector.
  • Yes, the 2301994-5 connector is designed to withstand vibrations and is suitable for use in applications with moderate to high vibration levels. However, it's essential to ensure proper mounting and secure the connector to prevent damage or disconnection.
  • While the datasheet specifies AWG 20-18 wire sizes, the connector can accommodate a range of wire sizes. However, it's crucial to consult with TE Connectivity or a qualified engineer to determine the suitability of the connector for specific wire sizes and applications.
  • The 2301994-5 connector is designed to operate in temperatures ranging from -40°C to 125°C (-40°F to 257°F). However, it's essential to consider the specific application and environmental conditions to ensure the connector's performance and reliability.
  • The 2301994-5 connector is designed to meet IP67 standards, which means it can withstand temporary immersion in water up to 1 meter (3.3 feet) for 30 minutes. However, it's essential to consult with TE Connectivity or a qualified engineer to determine the connector's suitability for specific harsh environments and applications.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

2301994-5 Overview

Use the download button to access the 2301994-5 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 23019, or try a keyword search, such as Telecom and Datacom Connectors

About TE Connectivity

TE Connectivity, a global leader in connectivity and sensor solutions, designs and manufactures products that enable a more connected world. Serving a diverse range of industries, including automotive, industrial, medical, aerospace, and telecommunications, TE Connectivity offers a broad portfolio of products such as connectors, sensors, relays, and passive components. The company's innovations help improve the reliability and performance of electronic systems.
