2301996-7 - TE Connectivity

Description: Body Features: Shield Plating Finish Matte | Insulator Material LCP | Shield Plating Material Nickel | LED Color (Bottom Left) None | Shield Material Brass | PCB Retention Feature Material LCP | Modular Jack Latch Orientation Inverted - Latch Up | PCB Ground Tab Location 3.05 MM | Connector Profile Standard | PCB Ground Tab Location .12 INCH | LED Color (Bottom Right) None | LED Color (Top Right) Green/Yellow | LED Color (Top Left) Green/Yellow | Configuration Features: Port Matrix Configuration 1 x 2 | Pan

Download 2301996-7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

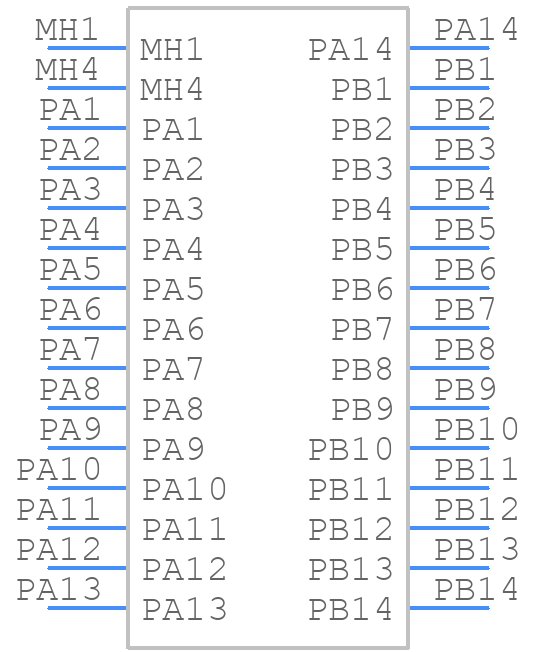

2301996-7 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

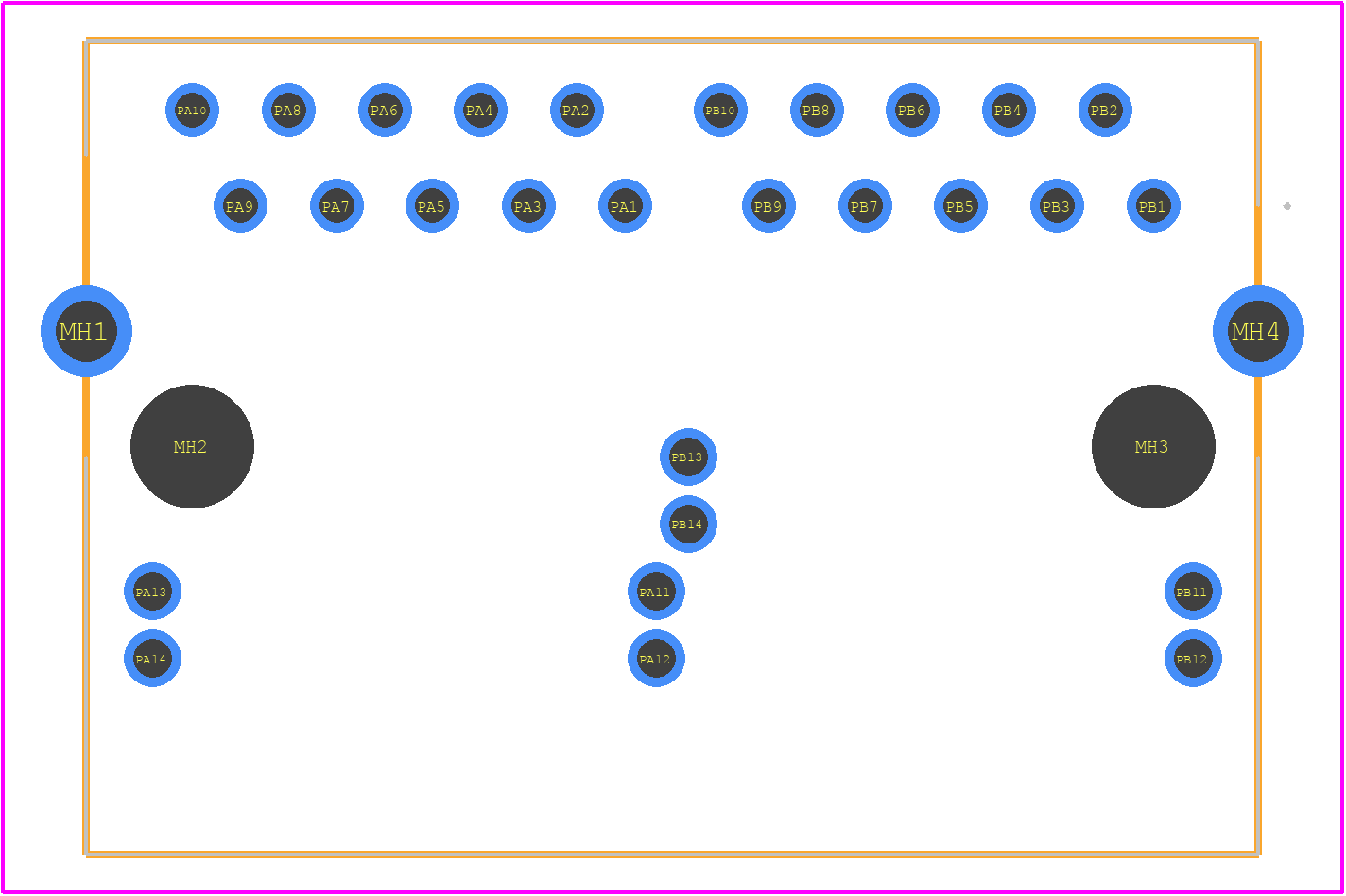

2301996-7 - TE Connectivity PCB footprint - Other - Other - 2301996-7-2
click to zoom
3D Models
2301996-7 - TE Connectivity - 3D model - Other - 2301996-7-2
click to zoom

2301996-7 Details

  • Manufacturer Part Number:

    2301996-7

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Factory Lead Time:

    24 Weeks, 5 Days

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    3

  • Board Mounting Option:

    BOARD LOCK

  • Body Depth:

    0.531 inch

  • Body/Shell Style:

    JACK

  • Connector Type:

    RJ CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Material:

    NOT APPLICABLE

  • DIN Conformance:

    NO

  • EMI Shielded:

    YES

  • Empty Shell:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Color:

    BLACK

  • Insulator Material:

    LIQUID CRYSTAL POLYMER

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    115/230VAC

  • Mixed Contacts:

    NO

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Ports:

    1

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Option:

    GENERAL PURPOSE

  • Panel Mount:

    NO

  • Plating Thickness:

    30u inch

  • Reference Standard:

    UL

  • Shell Finish:

    NICKEL

  • Shell Material:

    BRASS

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    8

  • UL Flammability Code:

    94V-0

2301996-7 Frequently Asked Questions (FAQs)

  • The recommended torque value is 0.5-0.7 Nm (5-7 in-lbs) for the screw terminals to ensure secure connections.
  • Yes, the 2301996-7 connector is designed to withstand vibrations and can be used in high-vibration applications, but it's recommended to follow TE Connectivity's guidelines for vibration testing and validation.
  • The operating temperature range for the 2301996-7 connector is -40°C to 125°C (-40°F to 257°F), but it's recommended to derate the connector's performance at extreme temperatures.
  • The 2301996-7 connector has a IP67 rating, making it suitable for use in harsh environments, including exposure to water and chemicals. However, it's recommended to follow TE Connectivity's guidelines for environmental testing and validation.
  • The recommended wire size for the 2301996-7 connector is 24-18 AWG (0.25-1.5 mm²), and it's recommended to use wires with a temperature rating of 125°C (257°F) or higher.
