2302794-2 footprint, schematic symbol and 3D model by TE Connectivity

Symbol

click to zoom

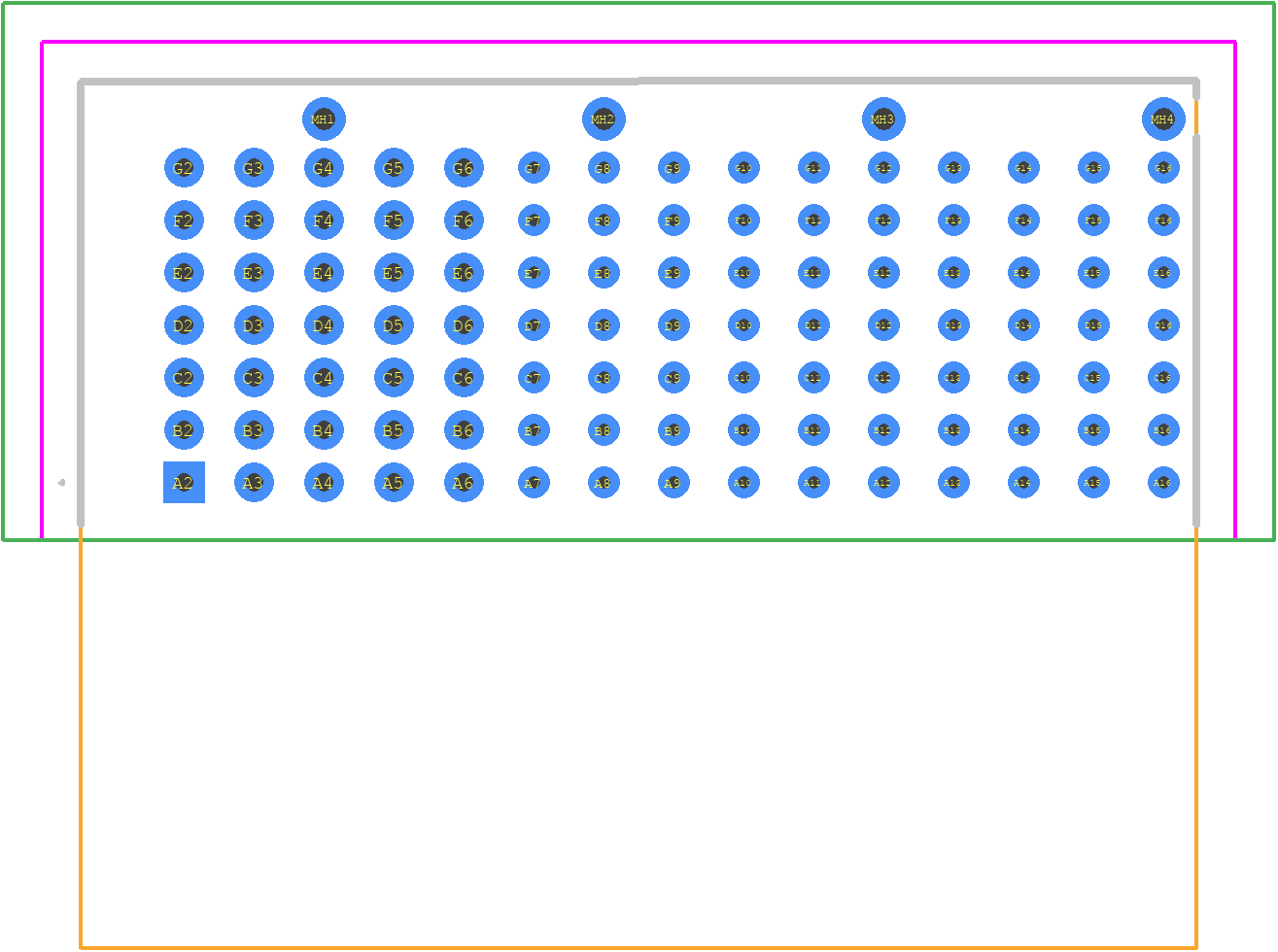

PCB Footprints

2302794-2 - TE Connectivity PCB footprint - Other - Other - 2302794-2-2

click to zoom

3D Models

2302794-2 - TE Connectivity - 3D model - Other - 2302794-2-2

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for 2302794-2
Part Number 2302794-2
Manufacturer TE Connectivity
Pin Count 109
Part Category Connector
Package Category Other
Footprint Name Other - 2302794-2-2
Released Date Jun 2, 2024
Last Modified Date Sep 9, 2025 6:52 AM UTC
Pinout / Pin List Click Here (Member Only)

2302794-2 Details

Manufacturer Part Number:
2302794-2
Rohs Code:
Yes
Part Life Cycle Code:
Active
ECCN Code:
EAR99
HTS Code:
8536.69.40.40
Factory Lead Time:
20 Weeks, 2 Days
Manufacturer:
TE Connectivity
YTEOL:
7
Connector Type:
BOARD CONNECTOR
Contact Finish Mating:
NOT APPLICABLE
Contact Material:
NOT APPLICABLE
DIN Conformance:
NO
EMI Shielded:
NO
Empty Shell:
YES
Filter Feature:
NO
IEC Conformance:
NO
Insulator Material:
GLASS FILLED LIQUID CRYSTAL POLYMER
MIL Conformance:
NO
Mains Connector Rating:
1A
Mating Contact Row Spacing:
0.053 inch
Mixed Contacts:
NO
Mounting Style:
RIGHT ANGLE
Mounting Type:
BOARD
Number Of Connectors:
ONE
Number of Ports:
1
Number of Rows Loaded:
7
Operating Temperature-Max:
125 °C
Operating Temperature-Min:
-55 °C
Option:
GENERAL PURPOSE
Panel Mount:
NO
Polarization Key:
POLARIZED
Rated Current (Signal):
1 A
Terminal Pitch:
1.8 mm
Termination Type:
PRESS FIT

2302794-2 Frequently Asked Questions (FAQs)

The recommended torque value for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs). It's essential to follow this value to ensure proper connection and prevent damage to the connector.
While the connector is designed to be environmentally sealed, it's not intended for direct exposure to harsh outdoor conditions. However, it can be used in outdoor applications if properly protected with additional sealing or enclosures.
Yes, but with caution. Using wire sizes outside the recommended range may affect the connector's performance and reliability. Consult with TE Connectivity or a qualified engineer to determine the feasibility of using alternative wire sizes.
To ensure proper mating and unmating, follow the recommended mating sequence and use the correct tooling. Apply gentle, even pressure when mating the connector, and avoid forcing or twisting the connector during unmating.
The operating temperature range for the 2302794-2 connector is -40°C to 125°C (-40°F to 257°F). However, the connector's performance and reliability may be affected at extreme temperatures. Consult the datasheet or TE Connectivity for more information.

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

2302794-2 Overview

Use the download button to access the 2302794-2 schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like 23027, or try a keyword search, such as Headers and Edge Type Connectors

About TE Connectivity

TE Connectivity, a global leader in connectivity and sensor solutions, designs and manufactures products that enable a more connected world. Serving a diverse range of industries, including automotive, industrial, medical, aerospace, and telecommunications, TE Connectivity offers a broad portfolio of products such as connectors, sensors, relays, and passive components. The company's innovations help improve the reliability and performance of electronic systems.
