2302796-1 - TE Connectivity

Description: High Speed Backplane Connectors, 56 Position, Mating Alignment, Keyed Mating Alignment Type, 7 Row, 8 Column, PCB Mount Header, MULTIGIG RT 3

Download 2302796-1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
2302796-1 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

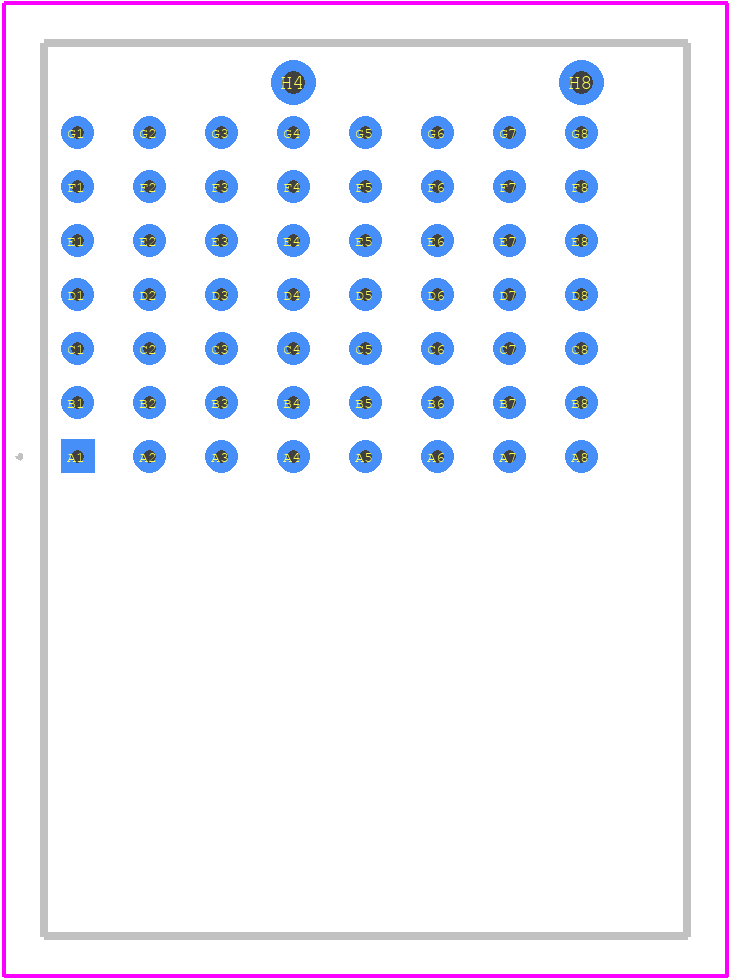

2302796-1 - TE Connectivity PCB footprint - Other - Other - 2302796-1-2
click to zoom
3D Models
2302796-1 - TE Connectivity - 3D model - Other - 2302796-1-2
click to zoom

2302796-1 Details

  • Manufacturer Part Number:

    2302796-1

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    20 Weeks, 2 Days

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    7

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Material:

    NOT APPLICABLE

  • DIN Conformance:

    NO

  • EMI Shielded:

    NO

  • Empty Shell:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Material:

    GLASS FILLED LIQUID CRYSTAL POLYMER

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    1A

  • Mating Contact Row Spacing:

    0.053 inch

  • Mixed Contacts:

    NO

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Ports:

    1

  • Number of Rows Loaded:

    7

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Option:

    GENERAL PURPOSE

  • Panel Mount:

    NO

  • Polarization Key:

    POLARIZED

  • Rated Current (Signal):

    1 A

  • Terminal Pitch:

    1.8 mm

  • Termination Type:

    PRESS FIT

2302796-1 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs). It's essential to follow this torque specification to ensure reliable connections and prevent damage to the connector.
  • Yes, the 2302796-1 connector is designed to withstand high-vibration environments. It meets the IEC 61373 Cat 2 vibration standard, making it suitable for use in applications such as industrial control systems, transportation, and more.
  • The 2302796-1 connector has a rating of IP67, which means it provides protection against solid objects and water immersion up to 1 meter for 30 minutes. However, it's essential to ensure proper sealing and installation to maintain the IP67 rating in outdoor environments.
  • The 2302796-1 connector has an operating temperature range of -40°C to 125°C (-40°F to 257°F), making it suitable for use in a wide range of applications, from industrial control systems to automotive and more.
  • While the datasheet specifies AWG 24-18 wire sizes, it's possible to use the 2302796-1 connector with other wire sizes. However, it's essential to consult with TE Connectivity or a qualified engineer to ensure the connector is compatible with the desired wire size and to determine any necessary modifications or accommodations.
