2304168-9 - TE Connectivity

Description: Wire-to-Board, Shielded, Horizontal, 4 Position, Board Mount, A Code, 4 mm [.157 in] Centerline, Signal, MATE-AX, Data Connectivity Headers

Download 2304168-9 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
2304168-9 - TE Connectivity - PCB symbol
click to zoom

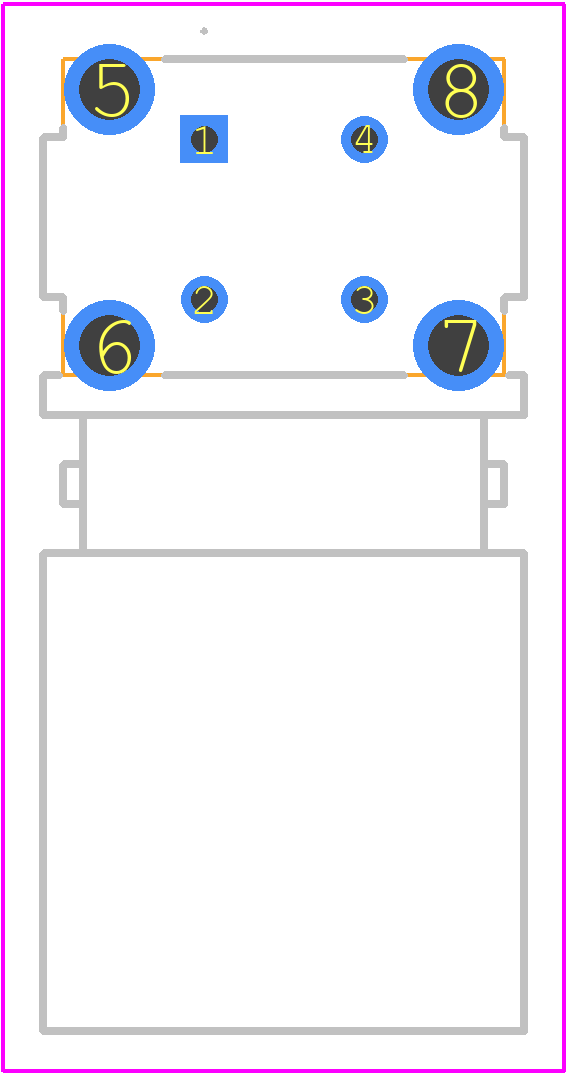

PCB Footprints
2304168-9 - TE Connectivity PCB footprint - Other - Other - 2304168-9-7
click to zoom
3D Models
2304168-9 - TE Connectivity - 3D model - Other - 2304168-9-7
click to zoom

2304168-9 Details

  • Manufacturer Part Number:

    2304168-9

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Factory Lead Time:

    42 Weeks

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    9

  • Body Breadth:

    0.472 inch

  • Body Depth:

    0.567 inch

  • Body Length:

    0.957 inch

  • Characteristic Impedance:

    50 Ω

  • Connector Type:

    COMBINATION LINE CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Gender:

    MALE

  • Contact Material:

    NOT APPLICABLE

  • DIN Conformance:

    NO

  • EMI Shielded:

    YES

  • Empty Shell:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Color:

    JET-BLACK

  • Insulator Material:

    LIQUID CRYSTAL POLYMER

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    3A

  • Mixed Contacts:

    NO

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Ports:

    1

  • Operating Frequency-Max:

    9 GHz

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Option:

    GENERAL PURPOSE

  • Panel Mount:

    NO

  • Polarization Key:

    POLARIZED

  • Rated Current (Signal):

    3 A

  • Rated Voltage:

    60 V

  • Terminal Pitch:

    4 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    4

2304168-9 Frequently Asked Questions (FAQs)

  • The recommended torque value is 0.5-0.7 Nm (5-7 in-lbs) for the screw terminals. It's essential to follow this specification to ensure reliable connections.
  • Yes, the 2304168-9 connector is designed to withstand vibrations and can be used in high-vibration applications. However, it's crucial to ensure proper mounting and secure connections to prevent damage or disconnection.
  • The 2304168-9 connector has a IP67 rating, making it suitable for outdoor use and harsh environments. However, it's essential to follow proper sealing and installation procedures to maintain the IP rating.
  • The 2304168-9 connector has an operating temperature range of -40°C to 125°C (-40°F to 257°F). It's essential to ensure the connector is used within this temperature range to maintain its performance and reliability.
  • Yes, the 2304168-9 connector is designed to be compatible with other TE Connectivity products, such as cables and connectors. However, it's essential to verify compatibility and follow proper mating and installation procedures.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

2304168-9 Overview

Use the download button to access the 2304168-9 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 23041, or try a keyword search, such as Combination Line Connectors

About TE Connectivity

TE Connectivity, a global leader in connectivity and sensor solutions, designs and manufactures products that enable a more connected world. Serving a diverse range of industries, including automotive, industrial, medical, aerospace, and telecommunications, TE Connectivity offers a broad portfolio of products such as connectors, sensors, relays, and passive components. The company's innovations help improve the reliability and performance of electronic systems.
