2304372-1 - TE Connectivity

Description: Body Features: Connector & Keying Code A | Primary Product Color Black | Configuration Features: Number of Positions 2 | Number of Rows 1 | PCB Mount Orientation Horizontal | Contact Features: Mating Tab Thickness .016 INCH | Contact Current Rating (Max) 3 AMP | Mating Tab Width .5 MM | Mating Tab Width .019 INCH | Mating Tab Thickness .4 MM | Contact Type Tab | Contact Size .5mm | Contact Mating Area Plating Material Tin | Electrical Characteristics: Operating Voltage 60 VDC | Housing Features: Centerline

Download 2304372-1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
2304372-1 - TE Connectivity - PCB symbol
click to zoom

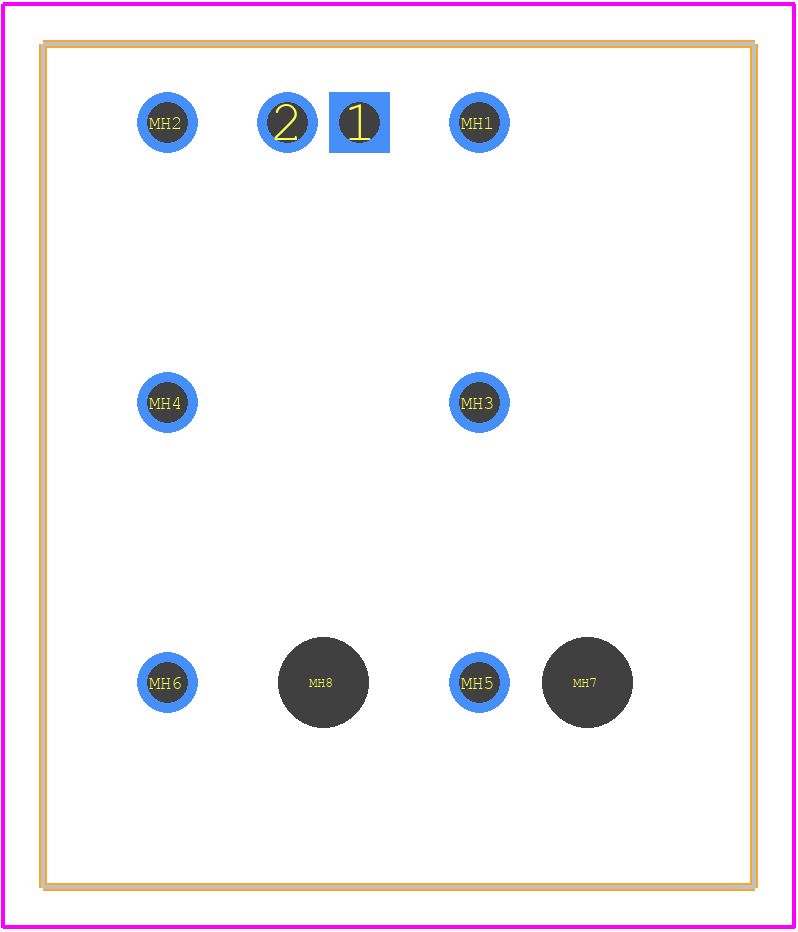

PCB Footprints
2304372-1 - TE Connectivity PCB footprint - Other - Other - 2304372-1-4
click to zoom
3D Models
2304372-1 - TE Connectivity - 3D model - Other - 2304372-1-4
click to zoom

2304372-1 Details

  • Manufacturer Part Number:

    2304372-1

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Factory Lead Time:

    13 Weeks, 3 Days

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    9

  • Body Breadth:

    0.531 inch

  • Body Depth:

    0.831 inch

  • Body Length:

    0.699 inch

  • Connector Type:

    COMBINATION LINE CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Gender:

    MALE

  • Contact Material:

    NOT APPLICABLE

  • Contact Style:

    HYBRID

  • DIN Conformance:

    NO

  • EMI Shielded:

    NO

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    3A

  • Mixed Contacts:

    NO

  • Mounting Option 1:

    GUIDE PIN

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number of Ports:

    1

  • Number of Rows Loaded:

    1

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Option:

    GENERAL PURPOSE

  • Panel Mount:

    NO

  • Rated Current (Signal):

    3 A

  • Rated Voltage:

    60 V

  • Terminal Pitch:

    1.8 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    4

2304372-1 Frequently Asked Questions (FAQs)

  • The recommended torque value is 0.5-0.7 Nm (4.4-6.3 in-lbs) for the screw terminals. However, it's essential to consult the TE Connectivity application notes or contact their technical support for specific guidance.
  • Yes, the 2304372-1 connector is designed to withstand vibrations. However, it's crucial to ensure proper mounting and secure the connector to prevent damage. Consult TE Connectivity's vibration testing data and application notes for more information.
  • The operating temperature range for the 2304372-1 connector is -40°C to 125°C (-40°F to 257°F). However, it's essential to consider the specific application and environmental conditions to ensure reliable performance.
  • The 2304372-1 connector has a IP67 rating, which means it can withstand temporary immersion in water up to 1 meter (3.3 feet) for 30 minutes. However, it's crucial to ensure proper sealing and follow TE Connectivity's guidelines for use in humid or wet environments.
  • The recommended wire size for the 2304372-1 connector is 24-18 AWG (0.25-1.5 mm²). It's essential to use wires with a temperature rating that matches the connector's operating temperature range. Consult TE Connectivity's application notes for specific guidance on wire selection.
