2304372-3 - TE Connectivity

Description: PCB Mount Header, Horizontal, Wire-to-Board, 2 Position, 1.8 mm [.071 in] Centerline, Fully Shrouded, Tin, Through Hole - Solder, Sealable, Signal

Download 2304372-3 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
2304372-3 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

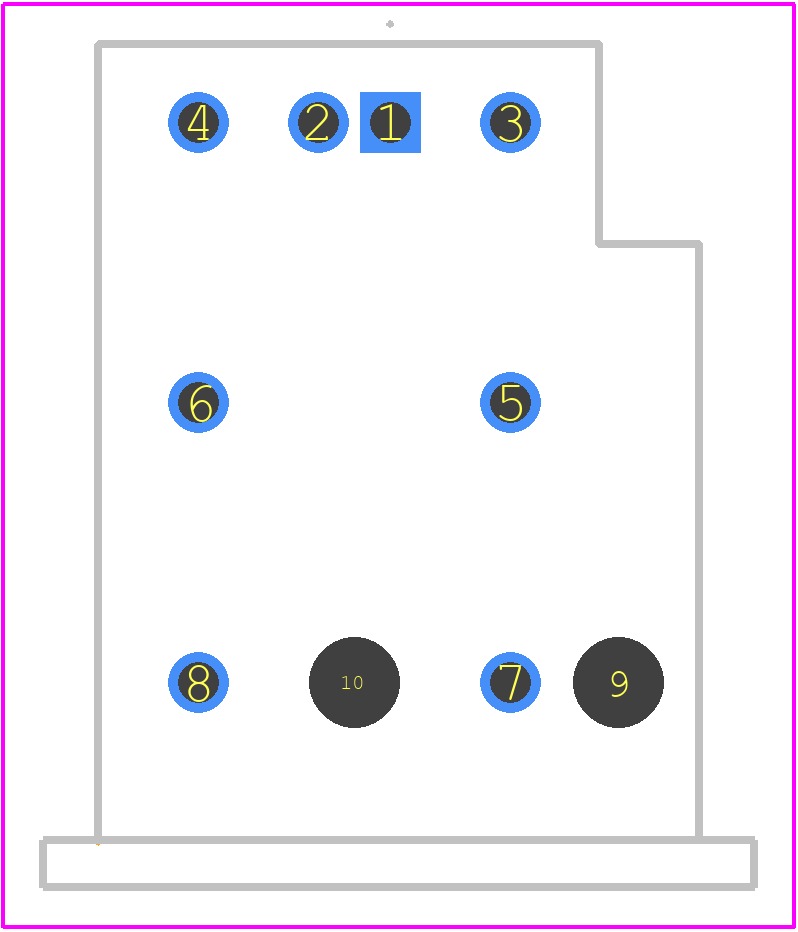

2304372-3 - TE Connectivity PCB footprint - Other - Other - 2304372-3-3
click to zoom
3D Models
2304372-3 - TE Connectivity - 3D model - Other - 2304372-3-3
click to zoom

2304372-3 Details

  • Manufacturer Part Number:

    2304372-3

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Factory Lead Time:

    30 Weeks, 3 Days

  • Manufacturer:

    TE Connectivity

  • Connector Type:

    COMBINATION LINE CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Gender:

    MALE

  • Contact Material:

    NOT APPLICABLE

  • DIN Conformance:

    NO

  • EMI Shielded:

    NO

  • Empty Shell:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    3A

  • Mixed Contacts:

    NO

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number of Ports:

    1

  • Number of Rows Loaded:

    1

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Option:

    GENERAL PURPOSE

  • Panel Mount:

    NO

  • Rated Current (Signal):

    3 A

  • Rated Voltage:

    60 V

  • Terminal Pitch:

    1.8 mm

  • Termination Type:

    SOLDER
