2304921-1 - TE Connectivity

Description: Configuration Features: Port Matrix Configuration 1 x 8 | Number of Ports 8 | Dimensions: PCB Thickness (Recommended) 2.25 MM | PCB Thickness (Recommended) .089 INCH | Electrical Characteristics: Data Rate (Max) 32 GBS | Housing Features: Cage Material Nickel Silver Alloy | Operation/Application: Heat Sink Compatible No | Circuit Application Signal | Other: Included Lightpipe No | EMI Containment Feature Type Internal/External EMI Springs | Packaging Features: Packaging Method Tray | Product Type Features:

Download 2304921-1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
2304921-1 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

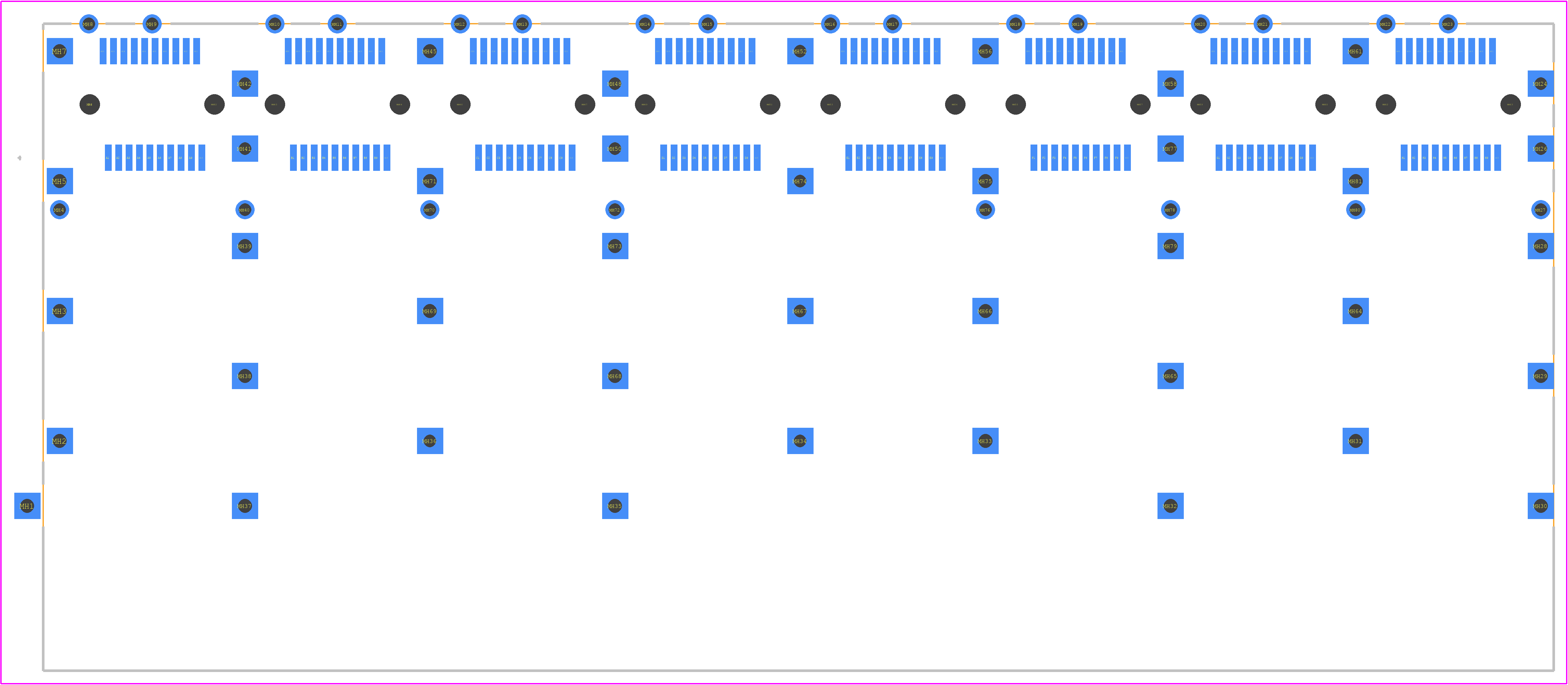

2304921-1 - TE Connectivity PCB footprint - Other - Other - 2304921-1-2
click to zoom
3D Models
2304921-1 - TE Connectivity - 3D model - Other - 2304921-1-2
click to zoom

2304921-1 Details

  • Manufacturer Part Number:

    2304921-1

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Factory Lead Time:

    8 Weeks, 3 Days

  • Manufacturer:

    TE Connectivity

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

2304921-1 Overview

Use the download button to access the 2304921-1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 23049, or try a keyword search, such as Telecom and Datacom Connectors

About TE Connectivity

TE Connectivity, a global leader in connectivity and sensor solutions, designs and manufactures products that enable a more connected world. Serving a diverse range of industries, including automotive, industrial, medical, aerospace, and telecommunications, TE Connectivity offers a broad portfolio of products such as connectors, sensors, relays, and passive components. The company's innovations help improve the reliability and performance of electronic systems.
