2306-H-RC - Bourns

Description: Bourns 27 μH ±15% Leaded Inductor, 15.6A Idc, 0.008Ω Rdc 2300

Download 2306-H-RC Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

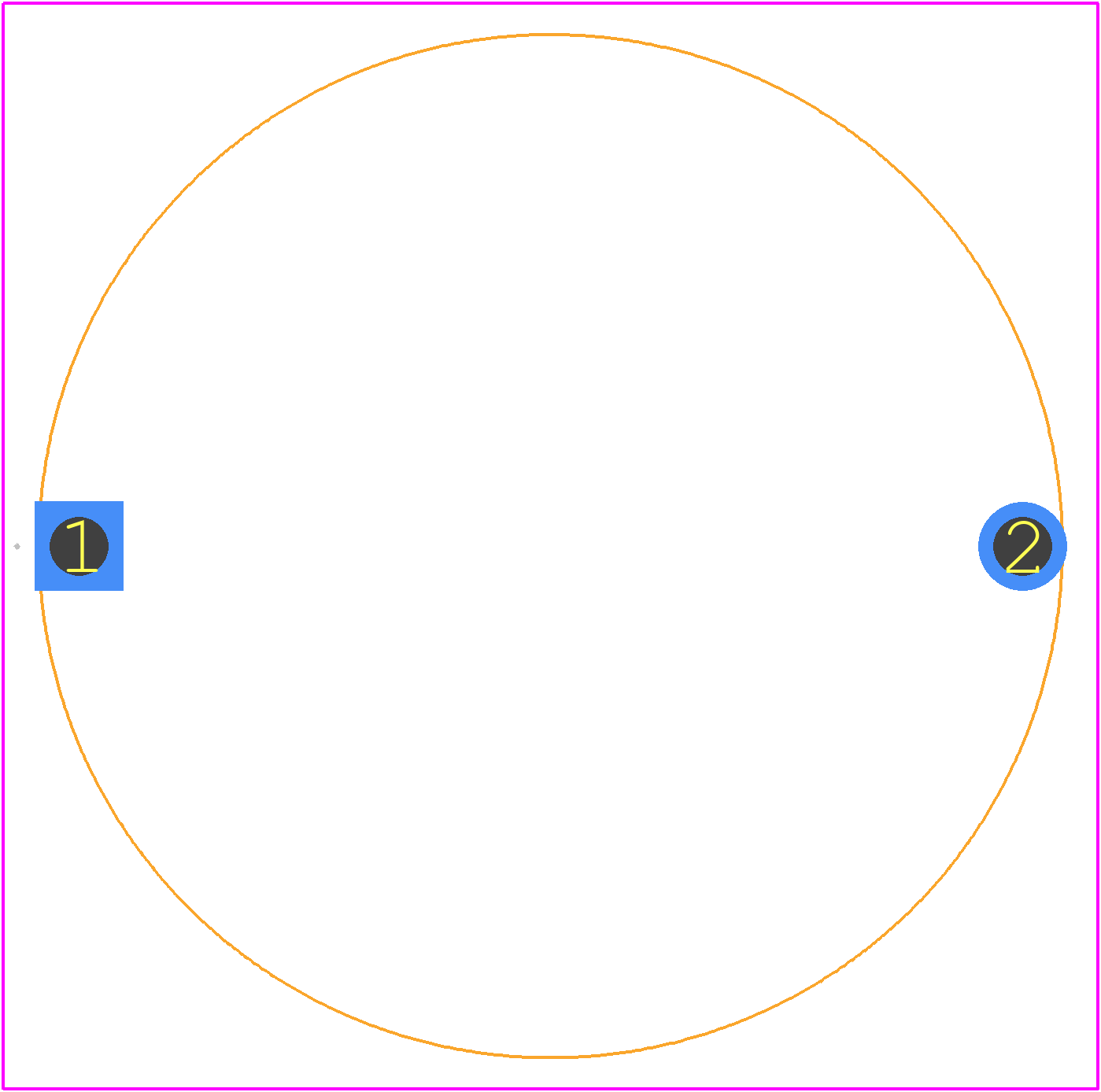

2306-H-RC - Bourns PCB footprint - Other - Other - 2306-H-RC-2
click to zoom
3D Models
2306-H-RC - Bourns  - 3D model - Other - 2306-H-RC-2
click to zoom

2306-H-RC Details

  • Manufacturer Part Number:

    2306-H-RC

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    RADIAL LEADED

  • Country Of Origin:

    Tunisia

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.50.80.00

  • Factory Lead Time:

    25 Weeks

  • Manufacturer:

    Bourns Inc

  • YTEOL:

    7

  • Construction:

    Hortizontal Mount

  • DC Resistance:

    0.008 Ω

  • Inductance-Nom (L):

    27 µH

  • Inductor Application:

    HIGH CURRENT INDUCTOR

  • Inductor Type:

    GENERAL PURPOSE INDUCTOR

  • Lead Diameter:

    1.6764 mm

  • Lead Spacing:

    29.972 mm

  • Number of Functions:

    1

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Diameter:

    32.512 mm

  • Package Length:

    16.51 mm

  • Package Style:

    Toroidal

  • Rated Current-Max:

    15.6 A

  • Shape/Size Description:

    CYLINDRICAL PACKAGE

  • Shielded:

    YES

  • Surface Mount:

    NO

  • Terminal Placement:

    RADIAL

  • Terminal Shape:

    WIRE

  • Test Frequency:

    0.001 MHz

  • Tolerance:

    15%

2306-H-RC Frequently Asked Questions (FAQs)

  • Bourns recommends a symmetrical PCB layout with a solid ground plane, and keeping the input and output traces as short as possible to minimize EMI and noise. A 4-layer PCB with a dedicated ground plane is also recommended.
  • Bourns recommends using a soldering iron with a temperature of 250°C to 260°C, and applying a small amount of solder paste to the pads. The component should be placed on the PCB with the pins aligned to the pads, and then reflowed according to the recommended soldering profile.
  • The 2306-H-RC is rated for operation from -40°C to +125°C, but it's recommended to derate the component's performance at temperatures above 85°C to ensure reliability and longevity.
  • Yes, the 2306-H-RC is designed to withstand vibrations up to 10G, but it's recommended to follow proper mounting and soldering techniques to ensure the component remains securely attached to the PCB.
  • Bourns recommends checking the input and output voltages, ensuring proper soldering and PCB layout, and verifying that the component is operated within its recommended specifications. If issues persist, contact Bourns' technical support for further assistance.
