231-147/001-000 - Wago

Description: THT male header; 1.0 x 1.0 mm solder pin; straight; Pin spacing 5 mm; 17-pole

Download 231-147/001-000 Model

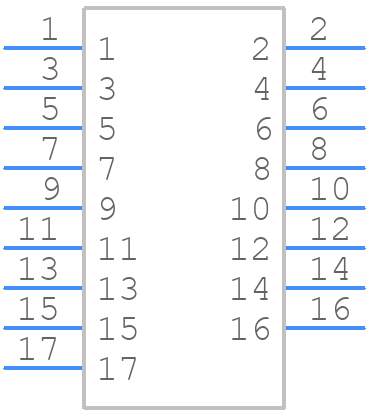

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

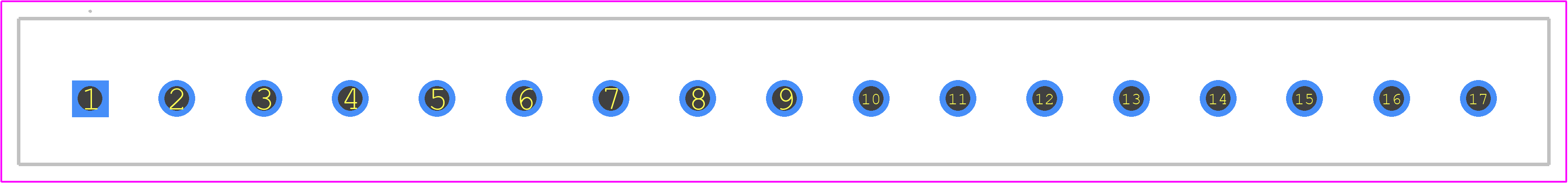

231-147/001-000 - Wago PCB footprint - Other - Other - 231-147/001-000-2
click to zoom
3D Models
231-147/001-000 - Wago  - 3D model - Other - 231-147/001-000-2
click to zoom

231-147/001-000 Details

  • Manufacturer Part Number:

    231-147/001-000

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • Country Of Origin:

    Poland

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    WAGO Innovative Connections

  • YTEOL:

    7

  • Additional Feature:

    PA66, UL 94V-0

  • Fastening Method:

    CONNECTOR

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    17

  • Rated Current:

    12 A

  • Rated Voltage:

    630 V

  • Safety Approval:

    CCA; GL; UL

  • Terminal and Terminal Block Type:

    STRIP TERMINAL BLOCK
