231-166/001-000 - Wago

Description: THT male header; 1.2 x 1.2 mm solder pin; straight; Pin spacing 5 mm; 6-pole

Download 231-166/001-000 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
231-166/001-000 - Wago - PCB symbol
click to zoom
PCB Footprints

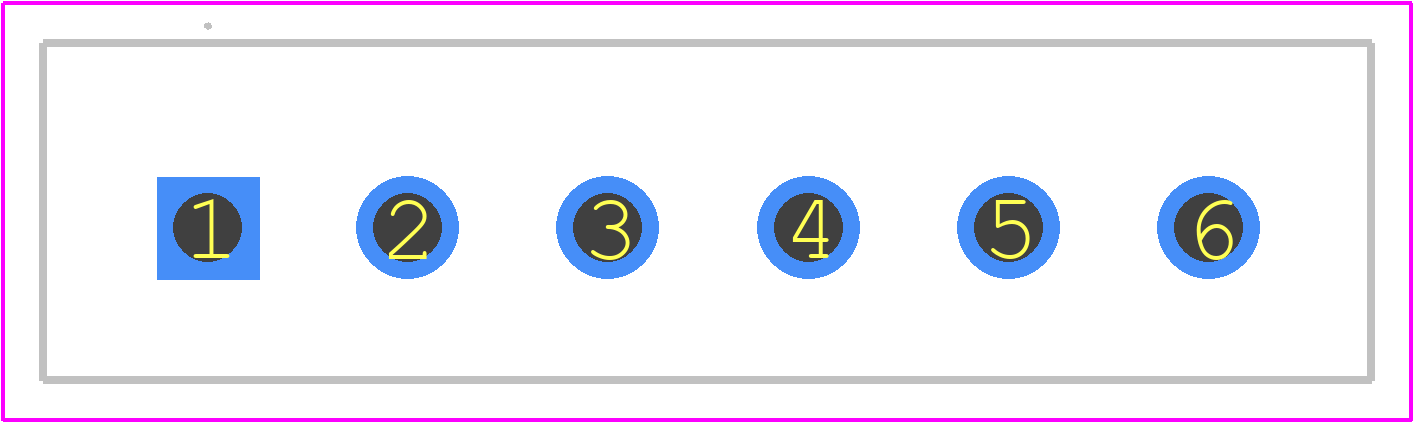

231-166/001-000 - Wago PCB footprint - Other - Other - 231-166/001-000-2
click to zoom
3D Models
231-166/001-000 - Wago - 3D model - Other - 231-166/001-000-2
click to zoom

231-166/001-000 Details

  • Manufacturer Part Number:

    231-166/001-000

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • Country Of Origin:

    Germany

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    WAGO Innovative Connections

  • YTEOL:

    7.96

  • Additional Feature:

    PA6.6, UL 94V-0, SAFETY APPROVAL: KR; LR; RMR; UL

  • Fastening Method:

    CONNECTOR

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    6

  • Rated Current:

    16 A

  • Rated Voltage:

    630 V

  • Safety Approval:

    ABS; BV; CCA; CSA; GL; KEMA

  • Terminal and Terminal Block Type:

    STRIP TERMINAL BLOCK

231-166/001-000 Frequently Asked Questions (FAQs)

  • The recommended torque is 0.6 Nm to 0.8 Nm (5.3 in-lbs to 7.1 in-lbs) according to WAGO's application notes.
  • Yes, the connector is rated IP67, which means it is protected against dust and can withstand immersion in water up to 1 meter (3.3 feet) for 30 minutes, making it suitable for outdoor use.
  • Yes, the connector is designed to accept stranded wire with a wire size range of 0.5 mm² to 2.5 mm² (20 AWG to 14 AWG). However, it's recommended to use a wire ferrule to ensure reliable connections.
  • Yes, the 231-166/001-000 connector is part of WAGO's TOPJOB S series, which is compatible with other connectors in the same series. However, it's always recommended to check the specific compatibility of connectors before making a connection.
  • The operating temperature range of the connector is -40°C to 125°C (-40°F to 257°F), making it suitable for use in a wide range of industrial and commercial applications.
