231-167/001-000 - Wago

Description: THT male header; 1.2 x 1.2 mm solder pin; straight; Pin spacing 5 mm; 7-pole

Download 231-167/001-000 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
231-167/001-000 - Wago - PCB symbol
click to zoom
PCB Footprints

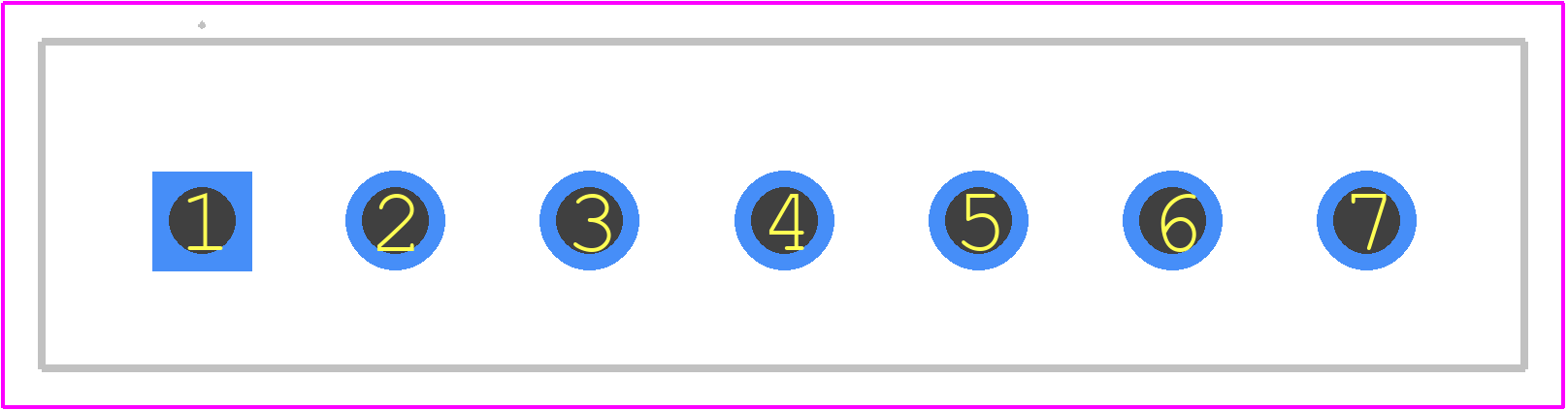

231-167/001-000 - Wago PCB footprint - Other - Other - 231-167/001-000-2
click to zoom
3D Models
231-167/001-000 - Wago - 3D model - Other - 231-167/001-000-2
click to zoom

231-167/001-000 Details

  • Manufacturer Part Number:

    231-167/001-000

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • Country Of Origin:

    Poland

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    WAGO Innovative Connections

  • YTEOL:

    7.96

  • Additional Feature:

    PA6.6, UL 94V-0, SAFETY APPROVAL: KR; LR; RMR; UL

  • Fastening Method:

    CONNECTOR

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    7

  • Rated Current:

    16 A

  • Rated Voltage:

    630 V

  • Safety Approval:

    ABS; BV; CCA; CSA; GL; KEMA

  • Terminal and Terminal Block Type:

    STRIP TERMINAL BLOCK

231-167/001-000 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5 Nm to 1.2 Nm, depending on the wire size and type.
  • Yes, the WAGO 231-167/001-000 is designed to withstand vibrations up to 10 g according to IEC 60068-2-6. However, it's recommended to consult with WAGO's technical support for specific application guidance.
  • The WAGO 231-167/001-000 has a protection rating of IP20, which means it's not suitable for outdoor use or exposure to moisture. For outdoor applications, consider using connectors with a higher IP rating, such as IP67 or IP69K.
  • It's not recommended to use the WAGO 231-167/001-000 with aluminum wires, as they can cause corrosion and reduce the connector's lifespan. Instead, use copper or copper-clad aluminum wires for optimal performance.
  • The WAGO 231-167/001-000 has an operating temperature range of -40°C to 125°C, making it suitable for a wide range of industrial applications.
