231-368/001-000 - Wago

Description: THT male header; 1.2 x 1.2 mm solder pin; straight; Pin spacing 5.08 mm; 8-pole

Download 231-368/001-000 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
231-368/001-000 - Wago - PCB symbol
click to zoom
PCB Footprints

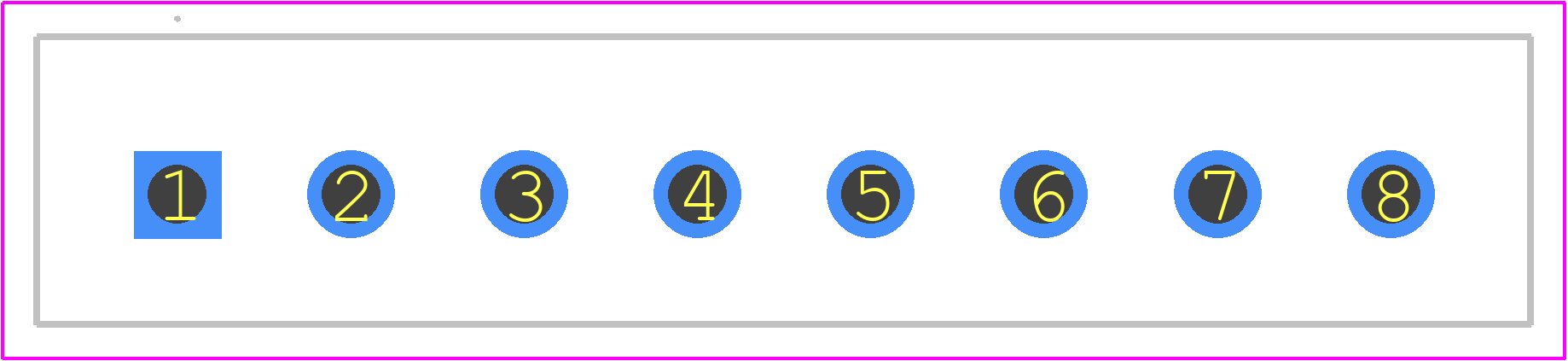

231-368/001-000 - Wago PCB footprint - Other - Other - 231-368/001-000-1
click to zoom
3D Models
231-368/001-000 - Wago - 3D model - Other - 231-368/001-000-1
click to zoom

231-368/001-000 Details

  • Manufacturer Part Number:

    231-368/001-000

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Germany

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    WAGO Innovative Connections

  • YTEOL:

    8

  • Additional Feature:

    STANDARD: UL 94V-0, POLYAMIDE66

  • Fastening Method:

    CONNECTOR

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    8

  • Rated Current:

    15 A

  • Rated Voltage:

    300 V

  • Safety Approval:

    ABS;CSA;EN;IEC;UL

  • Terminal Gender:

    MALE

  • Terminal and Terminal Block Type:

    STRIP TERMINAL BLOCK

231-368/001-000 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.6 Nm to 0.8 Nm (5.3 in-lbs to 7.1 in-lbs).
  • Yes, the connector is suitable for outdoor use, but it's recommended to use a suitable sealant or gasket to ensure IP67 rating.
  • Yes, the connector is suitable for use with stranded wire, but it's recommended to use a ferrule or wire end sleeve to ensure reliable connections.
  • The maximum operating temperature range for this connector is -40°C to 125°C (-40°F to 257°F).
  • Yes, the connector meets the requirements of UL 310 and CE (EN 60998) standards for safety and performance.
