231-545/001-000 - Wago

Description: THT male header; 1.0 x 1.0 mm solder pin; angled; Pin spacing 5.08 mm; 15-pole

Download 231-545/001-000 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
231-545/001-000 - Wago - PCB symbol
click to zoom
PCB Footprints

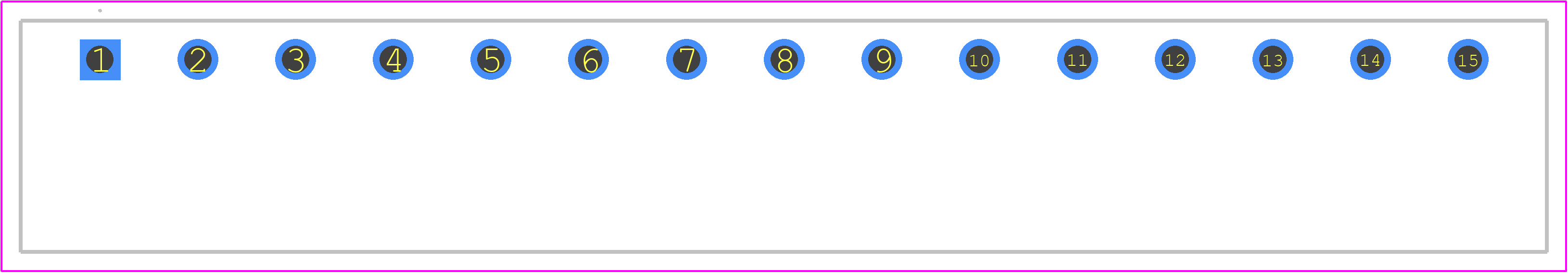

231-545/001-000 - Wago PCB footprint - Other - Other - 231-545/001-000-1
click to zoom
3D Models
231-545/001-000 - Wago - 3D model - Other - 231-545/001-000-1
click to zoom

231-545/001-000 Details

  • Manufacturer Part Number:

    231-545/001-000

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Poland

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    WAGO Innovative Connections

  • YTEOL:

    8

  • Additional Feature:

    STANDARD: UL 94V-0, POLYAMIDE66

  • Fastening Method:

    CONNECTOR

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    15

  • Rated Current:

    10 A

  • Rated Voltage:

    300 V

  • Safety Approval:

    ABS;CSA;EN;IEC;UL

  • Terminal Gender:

    MALE

  • Terminal and Terminal Block Type:

    STRIP TERMINAL BLOCK

231-545/001-000 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.6 Nm to 0.8 Nm (5.3 in-lbs to 7.1 in-lbs) to ensure reliable connections.
  • Yes, the 231-545/001-000 connector is designed to withstand high-vibration environments, making it suitable for use in industrial, transportation, and other applications where vibration is a concern.
  • The 231-545/001-000 connector has a rating of IP67, which means it is protected against dust and can withstand immersion in water up to 1 meter (3.3 feet) for 30 minutes. However, it's recommended to use additional protection measures, such as conformal coating or potting, for extended outdoor use.
  • Yes, the 231-545/001-000 connector is designed to accept stranded wire with a minimum strand size of 0.25 mm² (AWG 24) and a maximum strand size of 2.5 mm² (AWG 14).
  • The 231-545/001-000 connector has an operating temperature range of -40°C to 125°C (-40°F to 257°F), making it suitable for use in a wide range of applications.

Trust Checks

This model has been approved by the manufacturer.
Manufacturer Approved
This model has been generated by a fully automated process.
Machine Generated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

231-545/001-000 Overview

Use the download button to access the 231-545/001-000 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 231-5, or try a keyword search, such as Terminals and Terminal Blocks
