The recommended torque for screw terminals is 0.6 Nm to 0.8 Nm (5.3 in-lbs to 7.1 in-lbs) to ensure reliable connections.
Yes, the 231-604/017-000 connector is designed to withstand high-vibration environments, making it suitable for use in industrial, transportation, and other applications where vibration is a concern.
The 231-604/017-000 connector has a rating of IP67, which means it is protected against dust and can withstand immersion in water up to 1 meter for 30 minutes. However, it's recommended to use additional protection measures, such as conformal coating or potting, for extended outdoor use.
Yes, the 231-604/017-000 connector is designed to accept stranded wire with a wire size range of 0.5 mm² to 2.5 mm² (20 AWG to 14 AWG). However, it's essential to follow the manufacturer's guidelines for wire preparation and termination to ensure reliable connections.
Yes, the 231-604/017-000 connector is part of the WAGO TOPJOB S family and is compatible with other products in the same series, including PCB terminals, connectors, and adapters.
Trust Checks
This model has been approved by the manufacturer.
Manufacturer Approved
This model has been generated by a fully automated process.
Machine Generated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
231-604/017-000 Overview

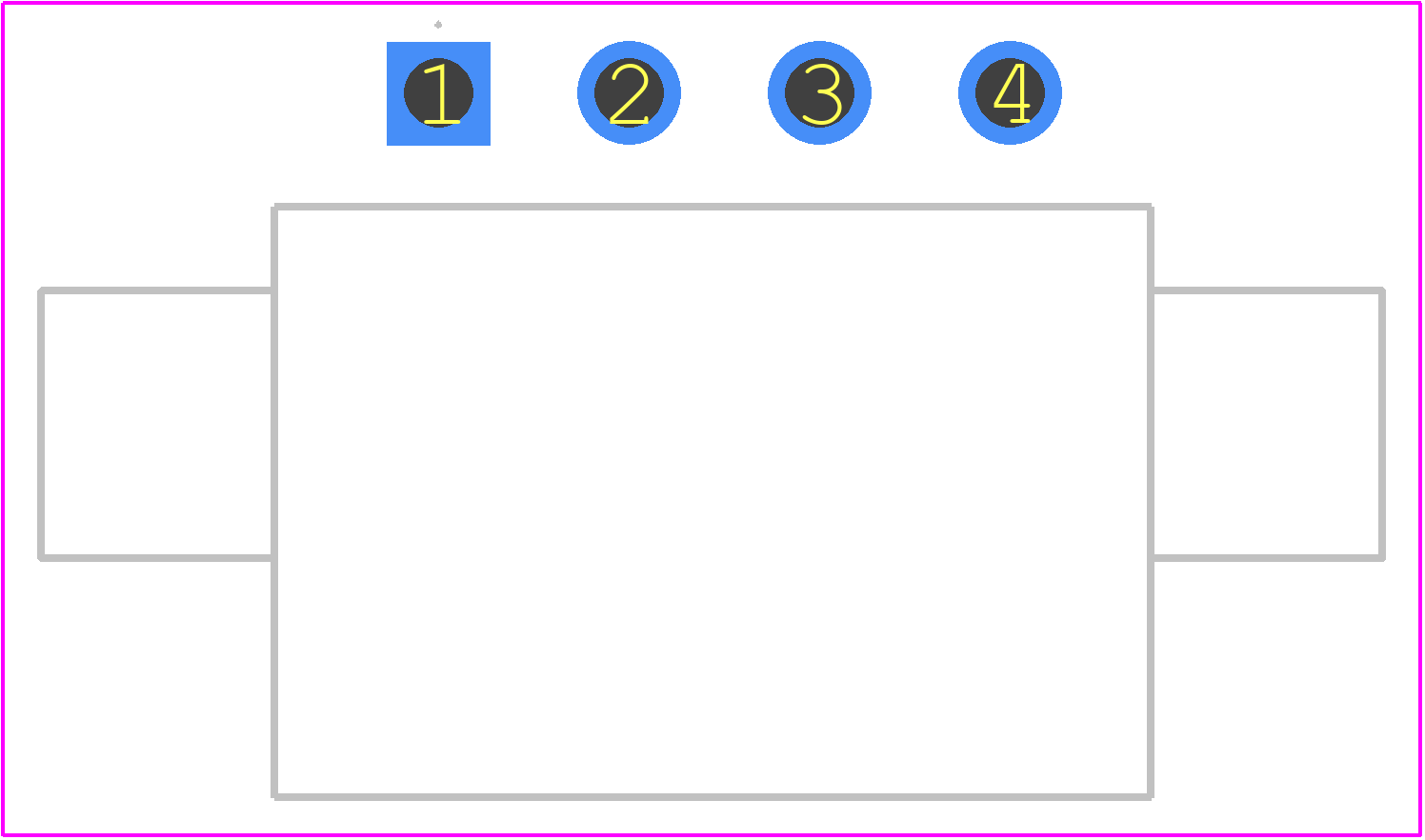

Use the download button to access the 231-604/017-000 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 231-6,
or try a keyword search, such as Terminals and Terminal Blocks
