2313238-2 - TE Connectivity

Description: High Speed Backplane Connectors, Board-to-Board, 144 Position, Mating Alignment, Keyed Mating Alignment Type, 9 Row, 16 Column, MULTIGIG RT 3

Download 2313238-2 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
2313238-2 - TE Connectivity - PCB symbol
click to zoom

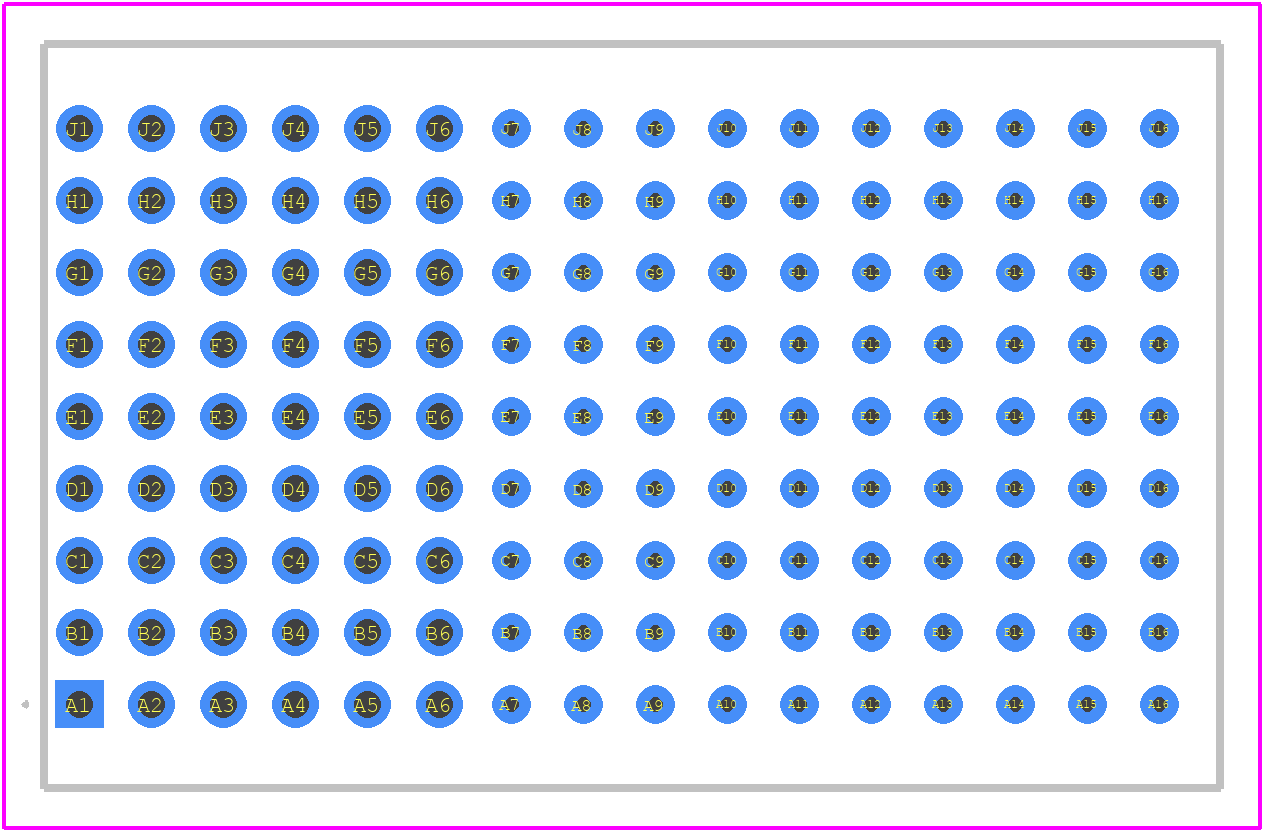

PCB Footprints
2313238-2 - TE Connectivity PCB footprint - Other - Other - 2313238-2-5
click to zoom
3D Models
2313238-2 - TE Connectivity - 3D model - Other - 2313238-2-5
click to zoom

2313238-2 Details

  • Manufacturer Part Number:

    2313238-2

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    14 Weeks

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    7

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Material:

    NOT APPLICABLE

  • DIN Conformance:

    NO

  • EMI Shielded:

    NO

  • Empty Shell:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Material:

    GLASS FILLED LIQUID CRYSTAL POLYMER

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    1A

  • Mating Contact Row Spacing:

    0.071 inch

  • Mixed Contacts:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Ports:

    1

  • Number of Rows Loaded:

    9

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Option:

    GENERAL PURPOSE

  • Panel Mount:

    NO

  • Polarization Key:

    POLARIZED

  • Rated Current (Signal):

    1 A

  • Terminal Pitch:

    1.8 mm

  • Termination Type:

    PRESS FIT

  • Total Number of Contacts:

    144

2313238-2 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5-1.5 Nm (4.4-13.3 in-lbs).
  • Yes, the connector is designed for harsh environments and can withstand outdoor use, but it's essential to follow proper installation and sealing procedures to ensure IP67 rating.
  • While the datasheet specifies 24-18 AWG wire sizes, it's possible to use other wire sizes with proper derating and verification of the connector's performance. Consult with TE Connectivity or a qualified engineer for guidance.
  • To ensure proper mating and unmating, follow the recommended mating and unmating sequences, and apply gentle, even pressure to the connector. Avoid forcing the connector, as this can cause damage.
  • The operating temperature range for the 2313238-2 connector is -40°C to 125°C (-40°F to 257°F).

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

2313238-2 Overview

Use the download button to access the 2313238-2 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 23132, or try a keyword search, such as Headers and Edge Type Connectors

About TE Connectivity

TE Connectivity, a global leader in connectivity and sensor solutions, designs and manufactures products that enable a more connected world. Serving a diverse range of industries, including automotive, industrial, medical, aerospace, and telecommunications, TE Connectivity offers a broad portfolio of products such as connectors, sensors, relays, and passive components. The company's innovations help improve the reliability and performance of electronic systems.
