Part Image

2314581-1 - TE Connectivity

Description: Configuration Features: Number of Columns 7 | Stackable No | Number of Power Positions 7 | Backplane Architecture Traditional Backplane | Number of Positions 7 | Number of Signal Positions 0 | PCB Mount Orientation Vertical | Contact Features: Contact Type Socket | Contact Current Rating (Max) 75 AMP | PCB Contact Termination Area Plating Material Gold | Contact Underplating Material Nickel | PCB Contact Termination Area Plating Material Thickness 5 MICIN | Contact Mating Area Plating Material Thickness 1.2

Download 2314581-1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
2314581-1 - TE Connectivity - PCB symbol
click to zoom

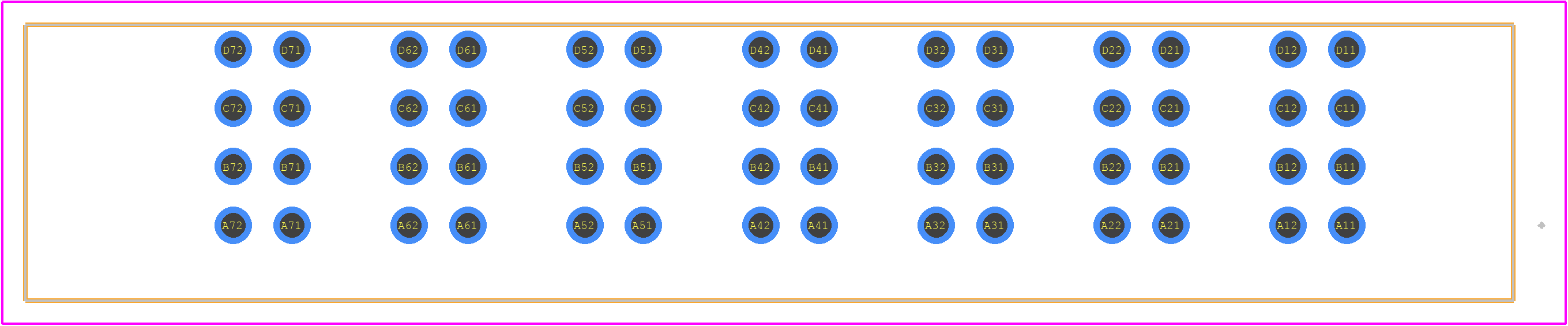

PCB Footprints
2314581-1 - TE Connectivity PCB footprint - Other - Other - 2314581-1-4
click to zoom
3D Models
2314581-1 - TE Connectivity - 3D model - Other - 2314581-1-4
click to zoom

2314581-1 Details

  • Manufacturer Part Number:

    2314581-1

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Factory Lead Time:

    10 Weeks

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    7.27

  • Body/Shell Style:

    RECEPTACLE

  • Connector Type:

    RECTANGULAR POWER CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT APPLICABLE

  • DIN Conformance:

    NO

  • EMI Shielded:

    NO

  • Empty Shell:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Color:

    BLACK

  • Insulator Material:

    POLYETHYLENE

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    75A

  • Mixed Contacts:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Ports:

    1

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Option:

    GENERAL PURPOSE

  • Panel Mount:

    NO

  • Plating Thickness:

    50u inch

  • Rated Current (Signal):

    75 A

  • Rated Voltage:

    300 V

  • Reference Standard:

    UL

  • Termination Type:

    PRESS FIT

  • Total Number of Contacts:

    7

  • UL Flammability Code:

    94V-0

2314581-1 Frequently Asked Questions (FAQs)

  • The recommended torque specification for the screw terminals is 0.5-1.5 Nm (4.4-13.3 in-lbs). It's essential to follow this specification to ensure reliable connections and prevent damage to the connector.
  • Yes, the 2314581-1 connector is designed to withstand high-vibration environments. However, it's crucial to ensure proper mounting and secure the connector to prevent damage or disconnection.
  • The 2314581-1 connector has a IP67 rating, making it suitable for outdoor or harsh environmental applications. However, it's essential to follow proper sealing and installation procedures to maintain the IP67 rating.
  • The 2314581-1 connector has an operating temperature range of -40°C to 125°C (-40°F to 257°F). It's essential to ensure the connector is used within this range to maintain its performance and reliability.
  • Yes, the 2314581-1 connector is designed to be compatible with other TE Connectivity products and accessories. However, it's essential to verify compatibility and follow proper installation procedures to ensure reliable connections.
