2317509-1 - TE Connectivity

Description: Vertical, Wire-to-Board, 14 Position, 2 Row, 1.8mm [.071in] Centerline, Tin (Sn), Printed Circuit Board, 13A Contact Current Rating (Max), Nano MQS

Download 2317509-1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

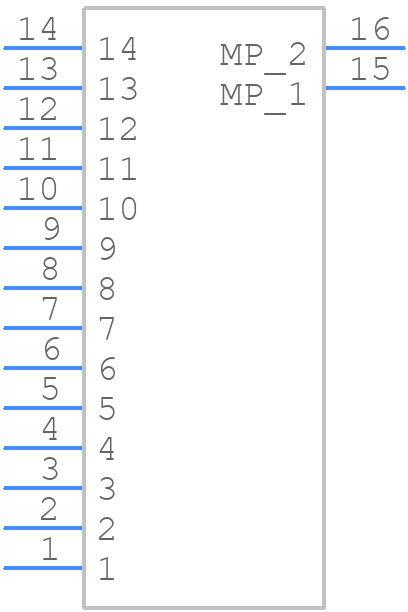

Symbol
2317509-1 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints
2317509-1 - TE Connectivity PCB footprint - Other - Other - 2317509-1-5
click to zoom
3D Models
2317509-1 - TE Connectivity - 3D model - Other - 2317509-1-5
click to zoom

2317509-1 Details

  • Manufacturer Part Number:

    2317509-1

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Factory Lead Time:

    33 Weeks

  • Manufacturer:

    TE Connectivity

  • Body Breadth:

    0.37 inch

  • Body Length:

    0.8 inch

  • Connector Type:

    COMBINATION LINE CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Gender:

    MALE

  • Contact Material:

    NOT APPLICABLE

  • DIN Conformance:

    NO

  • EMI Shielded:

    NO

  • Empty Shell:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    3A

  • Mixed Contacts:

    NO

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number of Ports:

    1

  • Number of Rows Loaded:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Option:

    GENERAL PURPOSE

  • Panel Mount:

    NO

  • Rated Current (Signal):

    3 A

  • Terminal Pitch:

    1.8 mm

  • Termination Type:

    SURFACE MOUNT

2317509-1 Frequently Asked Questions (FAQs)

  • The recommended torque value for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs). It's essential to follow this torque specification to ensure reliable connections and prevent damage to the connector.
  • Yes, the 2317509-1 connector is designed to withstand vibrations and is suitable for use in applications with moderate to high vibration levels. However, it's essential to ensure proper mounting and secure the connector to prevent damage or disconnection.
  • While the datasheet specifies AWG 20-24 wire sizes, the connector can accommodate smaller wire sizes (e.g., AWG 26-28) with the use of wire adapters or by following TE Connectivity's wire stripping and termination guidelines. However, it's crucial to verify the wire size and termination method to ensure reliable connections.
  • The 2317509-1 connector is designed to operate in a temperature range of -40°C to 125°C (-40°F to 257°F) and can withstand humidity levels up to 95%. However, it's essential to follow TE Connectivity's guidelines for environmental sealing and protection to ensure the connector's reliability in harsh conditions.
  • Yes, to ensure reliable connections and prevent damage to the connector or PCB, it's essential to follow TE Connectivity's PCB layout guidelines, including keeping the PCB traces away from the connector's mounting holes and ensuring sufficient clearance around the connector's body.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

2317509-1 Overview

Use the download button to access the 2317509-1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 23175, or try a keyword search, such as Combination Line Connectors
