2317525-1 - TE Connectivity

Description: Body Features: Primary Product Color Black | Connector & Keying Code A | Configuration Features: PCB Mount Orientation Vertical | Number of Rows 2 | Number of Positions 10 | Contact Features: Mating Tab Thickness .015 INCH | Mating Tab Width .019 INCH | Contact Current Rating (Max) 3 AMP | Contact Mating Area Plating Material Tin | Mating Tab Thickness .4 MM | Contact Type Tab | Mating Tab Width .5 MM | Contact Size .5mm | Dimensions: Connector Length 14.9 MM | Connector Length .586 INCH | Connector Width 9

Download 2317525-1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

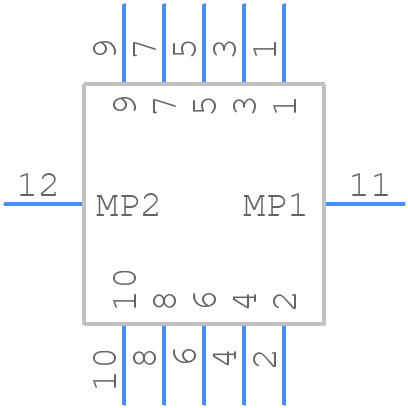

2317525-1 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints
2317525-1 - TE Connectivity PCB footprint - Other - Other - 2317525-1-3
click to zoom
3D Models
2317525-1 - TE Connectivity - 3D model - Other - 2317525-1-3
click to zoom

2317525-1 Details

  • Manufacturer Part Number:

    2317525-1

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Factory Lead Time:

    4 Weeks, 3 Days

  • Manufacturer:

    TE Connectivity

  • Body Breadth:

    0.37 inch

  • Body Length:

    0.586 inch

  • Connector Type:

    COMBINATION LINE CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Gender:

    MALE

  • Contact Material:

    NOT APPLICABLE

  • DIN Conformance:

    NO

  • EMI Shielded:

    NO

  • Empty Shell:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    3A

  • Mixed Contacts:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number of Ports:

    1

  • Number of Rows Loaded:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Option:

    GENERAL PURPOSE

  • Panel Mount:

    NO

  • Rated Current (Signal):

    3 A

  • Terminal Pitch:

    1.8 mm

  • Termination Type:

    SURFACE MOUNT

2317525-1 Frequently Asked Questions (FAQs)

  • The recommended torque value is 0.5-0.7 Nm (4.4-6.3 in-lbs) for the screw terminals.
  • Yes, the 2317525-1 connector is designed to withstand vibrations and is suitable for use in high-vibration environments, such as in industrial or automotive applications.
  • While the datasheet specifies AWG 20-24 wire sizes, the connector can accommodate other wire sizes with the use of adapters or by consulting with TE Connectivity's technical support team.
  • The operating temperature range for the 2317525-1 connector is -40°C to 125°C (-40°F to 257°F).
  • The 2317525-1 connector has a IP67 rating, which means it is protected against dust and can withstand immersion in water up to 1 meter (3.3 feet) for 30 minutes. However, it's recommended to consult with TE Connectivity's technical support team for specific environmental requirements.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

2317525-1 Overview

Use the download button to access the 2317525-1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 23175, or try a keyword search, such as Combination Line Connectors
