Part Image

2317527-1 - TE Connectivity

Description: Body Features: Primary Product Color Black | Connector & Keying Code A | Configuration Features: PCB Mount Orientation Vertical | Number of Rows 2 | Number of Positions 12 | Contact Features: Contact Mating Area Plating Material Tin | Contact Size .5mm | Mating Tab Width .019 INCH | Mating Tab Width .5 MM | Mating Tab Thickness .4 MM | Contact Type Tab | Contact Current Rating (Max) 3 AMP | Mating Tab Thickness .015 INCH | Dimensions: Connector Width 9.4 MM | Connector Length .65 INCH | Connector Length 16.

Download 2317527-1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

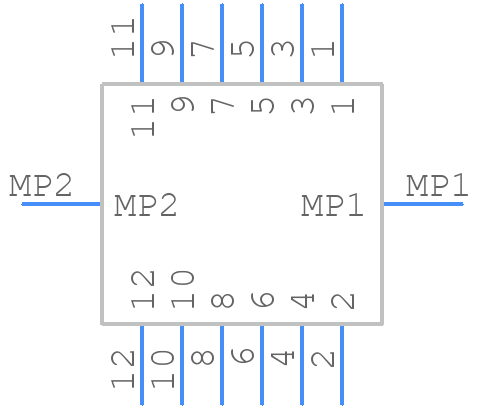

2317527-1 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints
2317527-1 - TE Connectivity PCB footprint - Other - Other - 2317527-1-1
click to zoom
3D Models
2317527-1 - TE Connectivity - 3D model - Other - 2317527-1-1
click to zoom

2317527-1 Details

  • Manufacturer Part Number:

    2317527-1

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Factory Lead Time:

    18 Weeks, 5 Days

  • Manufacturer:

    TE Connectivity

  • Body Breadth:

    0.37 inch

  • Body Length:

    0.65 inch

  • Connector Type:

    COMBINATION LINE CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Gender:

    MALE

  • Contact Material:

    NOT APPLICABLE

  • DIN Conformance:

    NO

  • EMI Shielded:

    NO

  • Empty Shell:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    3A

  • Mixed Contacts:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number of Ports:

    1

  • Number of Rows Loaded:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Option:

    GENERAL PURPOSE

  • Panel Mount:

    NO

  • Rated Current (Signal):

    3 A

  • Terminal Pitch:

    1.8 mm

  • Termination Type:

    SURFACE MOUNT

2317527-1 Frequently Asked Questions (FAQs)

  • The recommended torque specification for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs).
  • Yes, the 2317527-1 connector is designed to withstand high-vibration environments, making it suitable for applications such as industrial automation, transportation, and aerospace.
  • Yes, the 2317527-1 connector is designed to operate in harsh environments, with a temperature range of -40°C to 125°C and humidity resistance up to 95% RH.
  • The 2317527-1 connector has a mating cycle life of 500 cycles, making it suitable for applications that require frequent connections and disconnections.
  • While it's technically possible to use a different wire gauge, it's not recommended as it may affect the connector's performance and reliability. It's best to use the recommended wire gauge to ensure optimal performance.
