2318579-2 - TE Connectivity

Description: Electrical Characteristics: Data Rate (Max) 56 GBS | Housing Features: Centerline (Pitch) .8 MM | Operation/Application: Circuit Application Signal | Product Type Features: Sealable No | Form Factor QSFP-DD | Pluggable I/O Product Type Connector | Usage Conditions: Operating Temperature Range -55 – 85 DEGC | Operating Temperature Range -67 – 185 DEGF |

Download 2318579-2 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
2318579-2 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

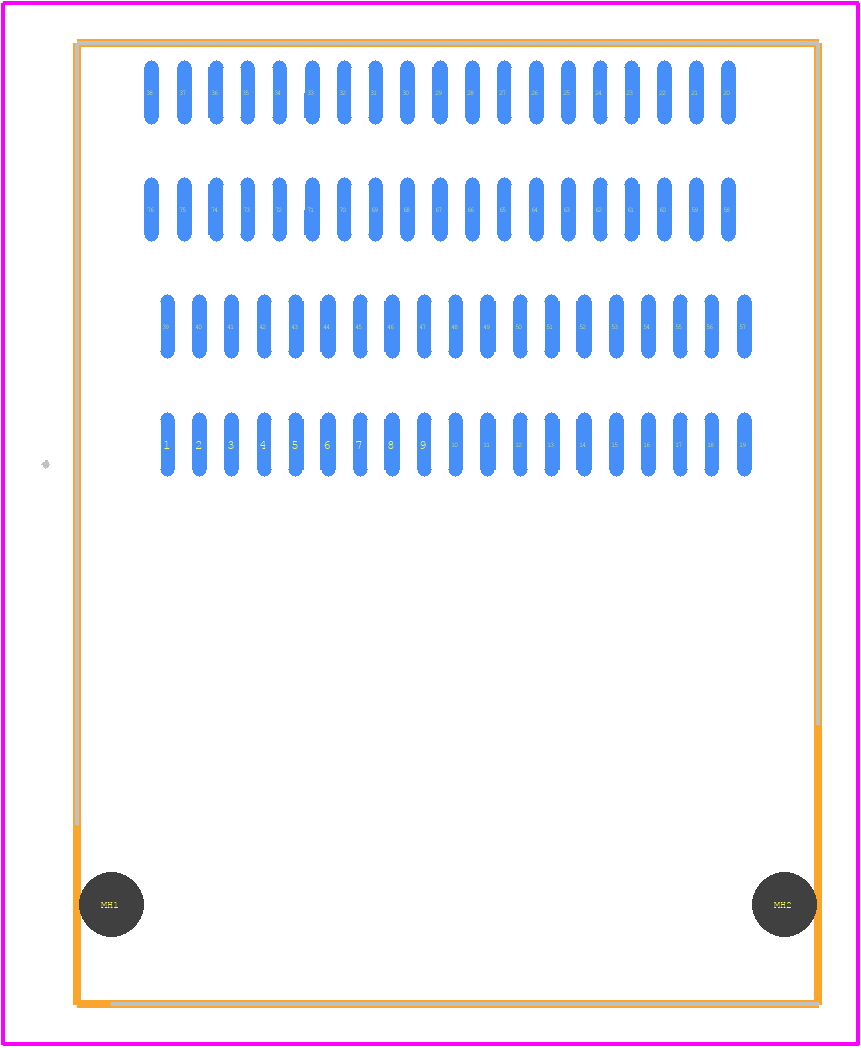

2318579-2 - TE Connectivity PCB footprint - Other - Other - 2318579-2-1
click to zoom
3D Models
2318579-2 - TE Connectivity - 3D model - Other - 2318579-2-1
click to zoom

2318579-2 Details

  • Manufacturer Part Number:

    2318579-2

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    6.95

  • Body/Shell Style:

    RECEPTACLE

  • Connector Type:

    SFP CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT APPLICABLE

  • DIN Conformance:

    NO

  • EMI Shielded:

    NO

  • Empty Shell:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Material:

    LIQUID CRYSTAL POLYMER

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    115/230VAC

  • Mixed Contacts:

    NO

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number of Ports:

    1

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -55 °C

  • Option:

    GENERAL PURPOSE

  • Panel Mount:

    NO

  • Terminal Pitch:

    0.8 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    76

2318579-2 Frequently Asked Questions (FAQs)

  • The recommended torque value is 0.5-0.7 Nm (4.4-6.3 in-lbs) for the screw terminals.
  • Yes, the 2318579-2 connector is designed to withstand high-vibration environments, but it's recommended to follow the manufacturer's guidelines for vibration testing and ensure proper mounting and securing of the connector.
  • The 2318579-2 connector has a IP67 rating, making it suitable for outdoor use, but it's essential to ensure proper sealing and protection from environmental factors such as moisture, dust, and extreme temperatures.
  • While it's technically possible to use a different wire gauge, it's not recommended as it may affect the connector's performance, reliability, and durability. It's best to follow the manufacturer's recommended wire gauge specifications.
  • To ensure proper mating and unmating, follow the manufacturer's guidelines for connector handling, alignment, and mating/unmating forces. It's also essential to ensure the connector is properly cleaned and inspected before use.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

2318579-2 Overview

Use the download button to access the 2318579-2 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 23185, or try a keyword search, such as Telecom and Datacom Connectors
