232-147 - Wago

Description: THT female header; straight; Pin spacing 5 mm; 17-pole; 0.6 x 1.0 mm solder pin

Download 232-147 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

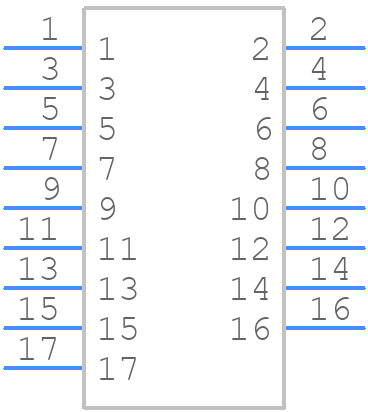

232-147 - Wago - PCB symbol
click to zoom
PCB Footprints

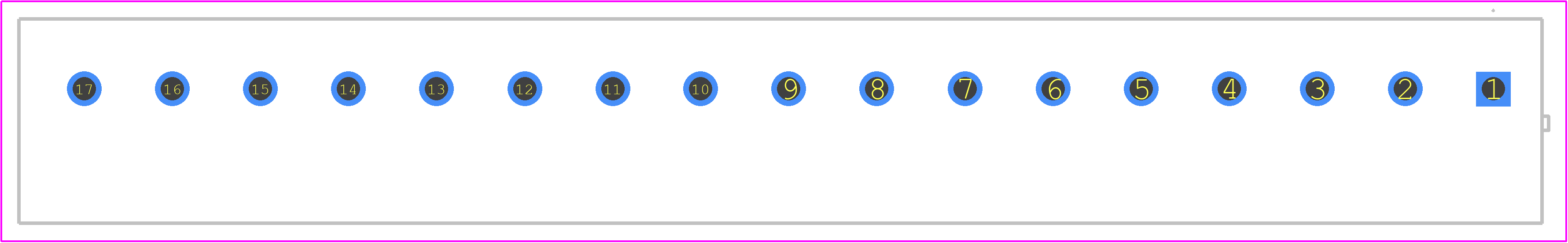

232-147 - Wago PCB footprint - Other - Other - 232-147-1
click to zoom
3D Models
232-147 - Wago - 3D model - Other - 232-147-1
click to zoom

232-147 Details

  • Manufacturer Part Number:

    232-147

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • Country Of Origin:

    Germany

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    WAGO Innovative Connections

  • YTEOL:

    6.58

  • Additional Feature:

    PA 66, UL 94V-0

  • Fastening Method:

    SCREW

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    17

  • Rated Current:

    12 A

  • Rated Voltage:

    630 V

  • Safety Approval:

    UL

  • Terminal and Terminal Block Type:

    STRIP TERMINAL BLOCK

232-147 Frequently Asked Questions (FAQs)

  • The recommended torque for screw terminals on the 232-147 connector is 0.6 Nm to 0.8 Nm (5.3 in-lbs to 7.1 in-lbs).
  • Yes, the 232-147 connector is designed to withstand high-vibration environments. It meets the vibration requirements of IEC 60068-2-6 and DIN EN 61373.
  • Yes, the 232-147 connector is suitable for outdoor use. It has a rating of IP67, which means it is protected against dust and water ingress, making it suitable for use in harsh environments.
  • Yes, the 232-147 connector is designed to accept stranded wire. However, it's recommended to use a wire ferrule to ensure a secure connection.
  • The operating temperature range of the 232-147 connector is -40°C to +125°C (-40°F to +257°F).

Trust Checks

This model has been approved by the manufacturer.
Manufacturer Approved
This model has been generated by a fully automated process.
Machine Generated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

232-147 Overview

Use the download button to access the 232-147 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 232-1, or try a keyword search, such as Terminals and Terminal Blocks
