232-166 - Wago

Description: THT female header; straight; Pin spacing 5.08 mm; 6-pole; 0.6 x 1.0 mm solder pin

Download 232-166 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
232-166 - Wago - PCB symbol
click to zoom
PCB Footprints

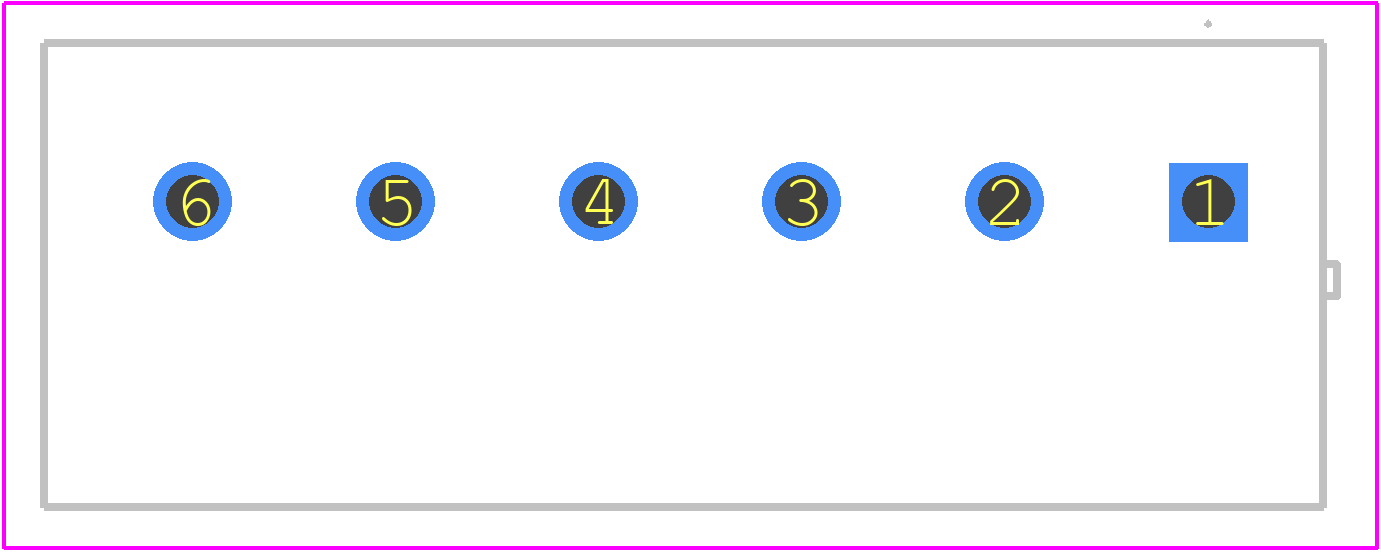

232-166 - Wago PCB footprint - Other - Other - 232-166-1
click to zoom
3D Models
232-166 - Wago - 3D model - Other - 232-166-1
click to zoom

232-166 Details

  • Manufacturer Part Number:

    232-166

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Germany

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    WAGO Innovative Connections

  • YTEOL:

    8

  • Additional Feature:

    STANDARD: UL 94V-0, POLYAMIDE66

  • Fastening Method:

    CONNECTOR

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    6

  • Rated Current:

    15 A

  • Rated Voltage:

    300 V

  • Safety Approval:

    ABS;CSA;EN;IEC;UL

  • Terminal Gender:

    FEMALE

  • Terminal and Terminal Block Type:

    BARRIER STRIP TERMINAL BLOCK

232-166 Frequently Asked Questions (FAQs)

  • The recommended torque for tightening the 232-166 connector is 0.6 Nm to 1.2 Nm (5.3 in-lbs to 10.6 in-lbs).
  • Yes, the 232-166 connector is suitable for outdoor use, as it has a IP67 rating, which means it is protected against dust and water ingress.
  • Yes, the 232-166 connector is designed to withstand high-vibration applications, with a vibration resistance of 10 g (according to IEC 60068-2-6).
  • The operating temperature range of the 232-166 connector is -40°C to 125°C (-40°F to 257°F).
  • No, the 232-166 connector is specifically designed for use with wire sizes AWG 24-18. Using wire sizes outside of this range may affect the connector's performance and reliability.
