232-168 - Wago

Description: THT female header; straight; Pin spacing 5.08 mm; 8-pole; 0.6 x 1.0 mm solder pin

Download 232-168 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
232-168 - Wago - PCB symbol
click to zoom
PCB Footprints

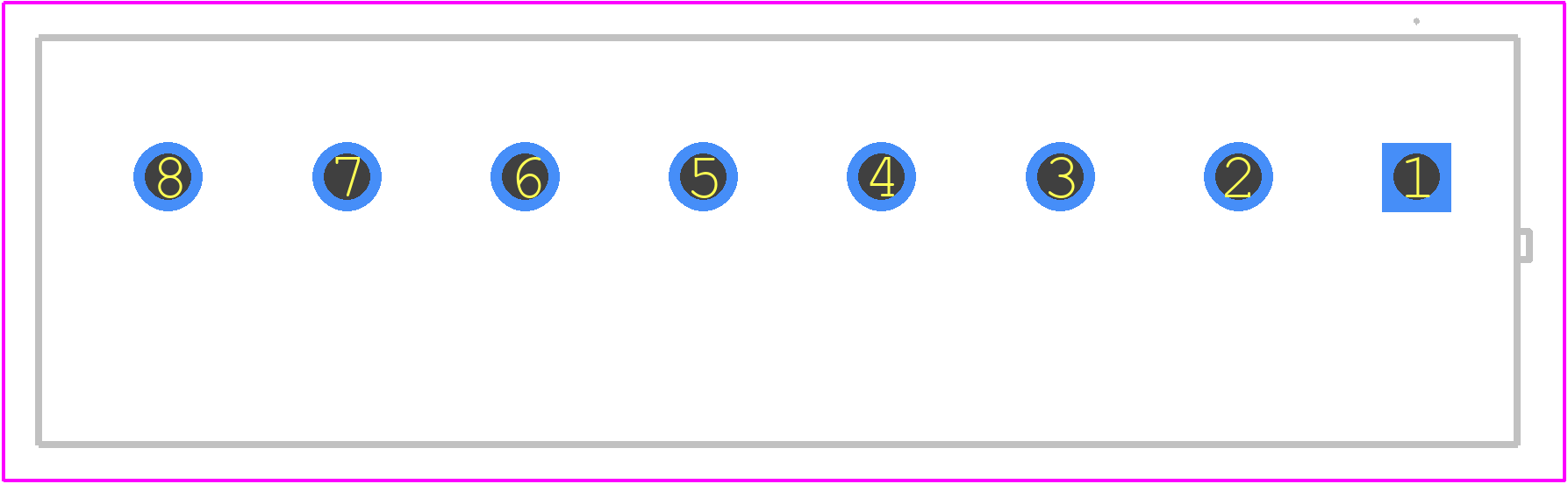

232-168 - Wago PCB footprint - Other - Other - 232-168-1
click to zoom
3D Models
232-168 - Wago - 3D model - Other - 232-168-1
click to zoom

232-168 Details

  • Manufacturer Part Number:

    232-168

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Germany

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    WAGO Innovative Connections

  • YTEOL:

    8

  • Additional Feature:

    STANDARD: UL 94V-0, POLYAMIDE66

  • Fastening Method:

    CONNECTOR

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    8

  • Rated Current:

    15 A

  • Rated Voltage:

    300 V

  • Safety Approval:

    ABS;CSA;EN;IEC;UL

  • Terminal Gender:

    FEMALE

  • Terminal and Terminal Block Type:

    BARRIER STRIP TERMINAL BLOCK

232-168 Frequently Asked Questions (FAQs)

  • The recommended torque for tightening the 232-168 connector is 0.6 Nm to 1.2 Nm (5.3 in-lbs to 10.6 in-lbs). It's essential to follow the recommended torque to ensure a secure connection and prevent damage to the connector or the PCB.
  • Yes, the 232-168 connector is designed to withstand high-vibration applications. It features a ruggedized design and a secure locking mechanism that ensures a reliable connection even in harsh environments.
  • The 232-168 connector has an IP67 rating, which means it is protected against dust and water ingress. However, it's essential to follow proper sealing and installation procedures to ensure the connector remains watertight in outdoor or wet environments.
  • The 232-168 connector is rated for operation in temperatures ranging from -40°C to 125°C (-40°F to 257°F). However, it's essential to consider the specific application and environmental conditions to ensure the connector operates within its specified temperature range.
  • Yes, the 232-168 connector is designed for automated assembly processes. It features a compact design and a secure locking mechanism that allows for easy and reliable assembly using automated machinery.
