Part Image

232-236 - Wago

Description: THT female header; angled; Pin spacing 5 mm; 6-pole; 0.6 x 1.0 mm solder pin

Download 232-236 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
232-236 - Wago - PCB symbol
click to zoom
PCB Footprints

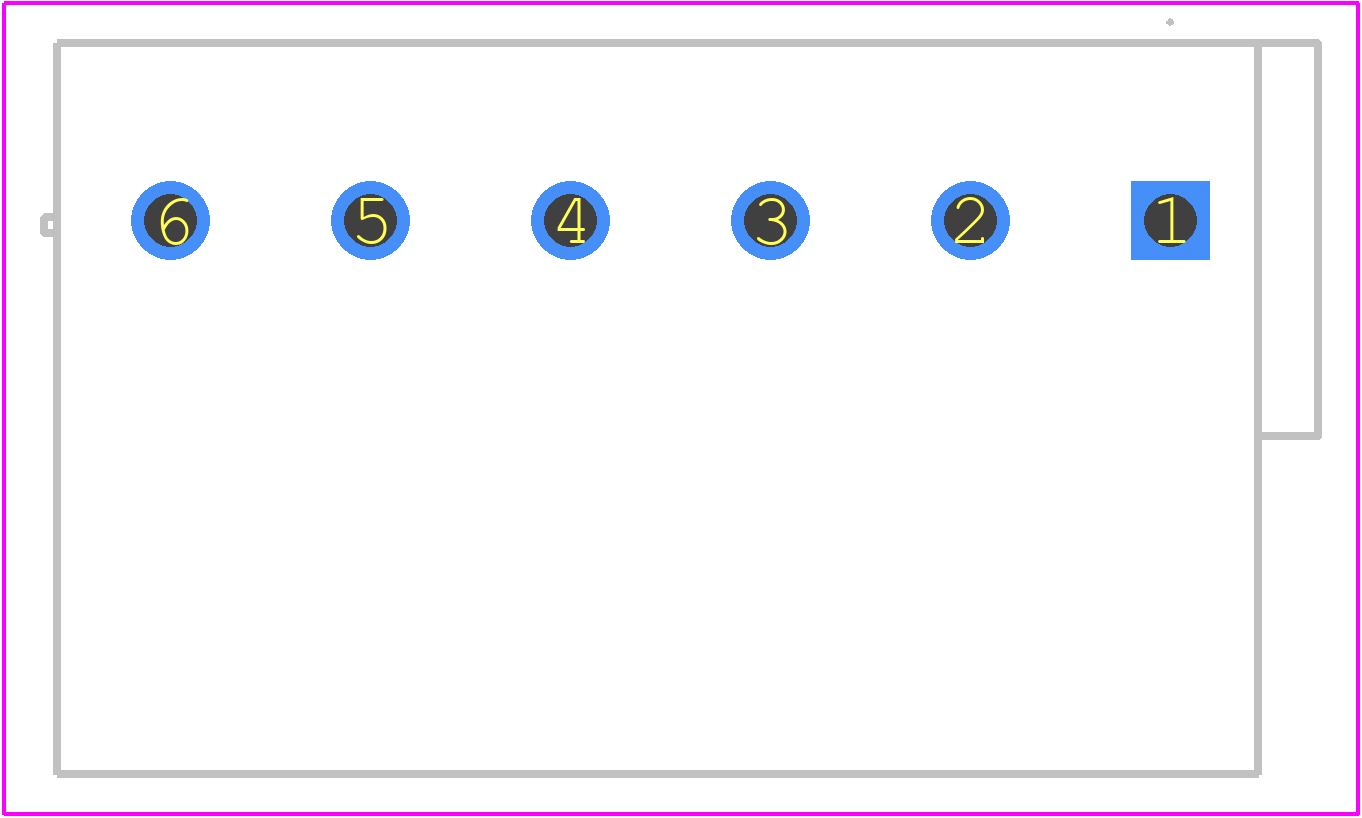

232-236 - Wago PCB footprint - Other - Other - 232-236-2
click to zoom
3D Models
232-236 - Wago - 3D model - Other - 232-236-2
click to zoom

232-236 Details

  • Manufacturer Part Number:

    232-236

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • Country Of Origin:

    Germany

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    WAGO Innovative Connections

  • YTEOL:

    6.58

  • Additional Feature:

    PA 66, UL 94V-0

  • Fastening Method:

    SCREW

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    6

  • Rated Current:

    12 A

  • Rated Voltage:

    630 V

  • Safety Approval:

    UL

  • Terminal and Terminal Block Type:

    STRIP TERMINAL BLOCK

232-236 Frequently Asked Questions (FAQs)

  • The recommended torque for screw terminals is 0.6 Nm to 1.2 Nm (5 in-lbs to 10 in-lbs).
  • Yes, the 232-236 series is designed to withstand high vibrations and meets the requirements of IEC 61373 Cat. 1 Class B.
  • Yes, the connectors are rated IP67 and can be used in outdoor applications, but ensure proper sealing and protection from environmental factors.
  • The maximum wire size is 2.5 mm² (AWG 14) for solid wires and 1.5 mm² (AWG 16) for stranded wires.
  • No, the 232-236 series is not designed for use in explosive atmospheres and does not meet the requirements of ATEX or IECEx.

Trust Checks

This model has been approved by the manufacturer.
Manufacturer Approved
This model has been generated by a fully automated process.
Machine Generated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

232-236 Overview

Use the download button to access the 232-236 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 232-2, or try a keyword search, such as Terminals and Terminal Blocks
