2320201-1 - TE Connectivity

Description: Body Features: Primary Product Color Black | Connector & Keying Code A | Configuration Features: Number of Positions 2 | Number of Sections 1 | PCB Mount Orientation Horizontal | Number of Rows 1 | Contact Features: Contact Size .5mm | Mating Tab Thickness .016 INCH | Contact Type Tab | Mating Tab Thickness .4 MM | Mating Tab Width .5 MM | Contact Current Rating (Max) 3 AMP | Contact Mating Area Plating Material Tin | Mating Tab Width .019 INCH | Housing Features: Centerline (Pitch) .071 INCH | Centerline (

Download 2320201-1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
2320201-1 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

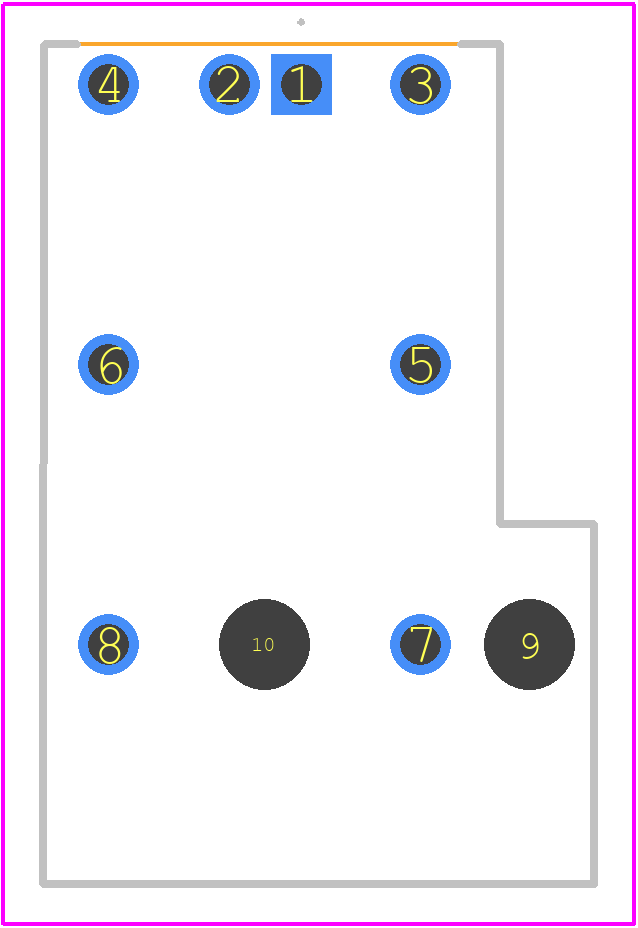

2320201-1 - TE Connectivity PCB footprint - Other - Other - 2320201-1-2
click to zoom
3D Models
2320201-1 - TE Connectivity - 3D model - Other - 2320201-1-2
click to zoom

2320201-1 Details

  • Manufacturer Part Number:

    2320201-1

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Factory Lead Time:

    4 Weeks, 3 Days

  • Manufacturer:

    TE Connectivity

  • Connector Type:

    COMBINATION LINE CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Gender:

    MALE

  • Contact Material:

    NOT APPLICABLE

  • DIN Conformance:

    NO

  • EMI Shielded:

    NO

  • Empty Shell:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    3A

  • Mixed Contacts:

    NO

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number of Ports:

    1

  • Number of Rows Loaded:

    1

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Option:

    GENERAL PURPOSE

  • Panel Mount:

    NO

  • Rated Current (Signal):

    3 A

  • Terminal Pitch:

    1.8 mm

  • Termination Type:

    SOLDER

2320201-1 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs). It's essential to follow this torque specification to ensure reliable connections and prevent damage to the connector.
  • Yes, the 2320201-1 connector is designed to withstand vibrations and is suitable for use in applications with moderate to high vibration levels. However, it's essential to ensure proper mounting and secure the connector to prevent damage or disconnection.
  • While the datasheet specifies AWG 20-18 wire sizes, the connector can accommodate a range of wire sizes. However, it's crucial to verify the wire size and insulation diameter to ensure proper fit and connection reliability. Consult with TE Connectivity or a qualified engineer for specific guidance.
  • The 2320201-1 connector is designed to operate in a temperature range of -40°C to 105°C (-40°F to 221°F) and can withstand humidity levels up to 95%. However, it's essential to consider the specific environmental conditions of your application and consult with TE Connectivity or a qualified engineer for guidance on connector selection and usage.
  • Yes, to ensure reliable connections and prevent damage to the connector or PCB, it's essential to follow proper PCB layout guidelines. These include maintaining a minimum clearance of 1.5 mm between the connector and nearby components, using a solder mask to prevent solder bridging, and ensuring the PCB material can withstand the operating temperatures and humidity levels.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

2320201-1 Overview

Use the download button to access the 2320201-1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 23202, or try a keyword search, such as Combination Line Connectors

About TE Connectivity

TE Connectivity, a global leader in connectivity and sensor solutions, designs and manufactures products that enable a more connected world. Serving a diverse range of industries, including automotive, industrial, medical, aerospace, and telecommunications, TE Connectivity offers a broad portfolio of products such as connectors, sensors, relays, and passive components. The company's innovations help improve the reliability and performance of electronic systems.
