2322610-1 Frequently Asked Questions (FAQs)

• What is the recommended torque value for the screw terminals?
  The recommended torque value for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs). It's essential to follow this torque specification to ensure reliable connections and prevent damage to the connector.
• Can I use this connector in high-vibration applications?
  Yes, the 2322610-1 connector is designed to withstand vibrations and can be used in applications with moderate to high vibration levels. However, it's crucial to ensure proper mounting and secure the connector to prevent damage or disconnection.
• Is the connector suitable for outdoor or harsh environmental conditions?
  The 2322610-1 connector has a IP67 rating, which means it can withstand temporary immersion in water and is protected against dust and other environmental factors. However, it's essential to follow proper sealing and installation procedures to maintain the connector's environmental rating.
• Can I use this connector with wire sizes other than the recommended AWG 20-24?
  While the datasheet recommends using AWG 20-24 wires, it's possible to use other wire sizes with the 2322610-1 connector. However, it's crucial to ensure the wire size and insulation meet the connector's specifications and that the connection is reliable and secure.

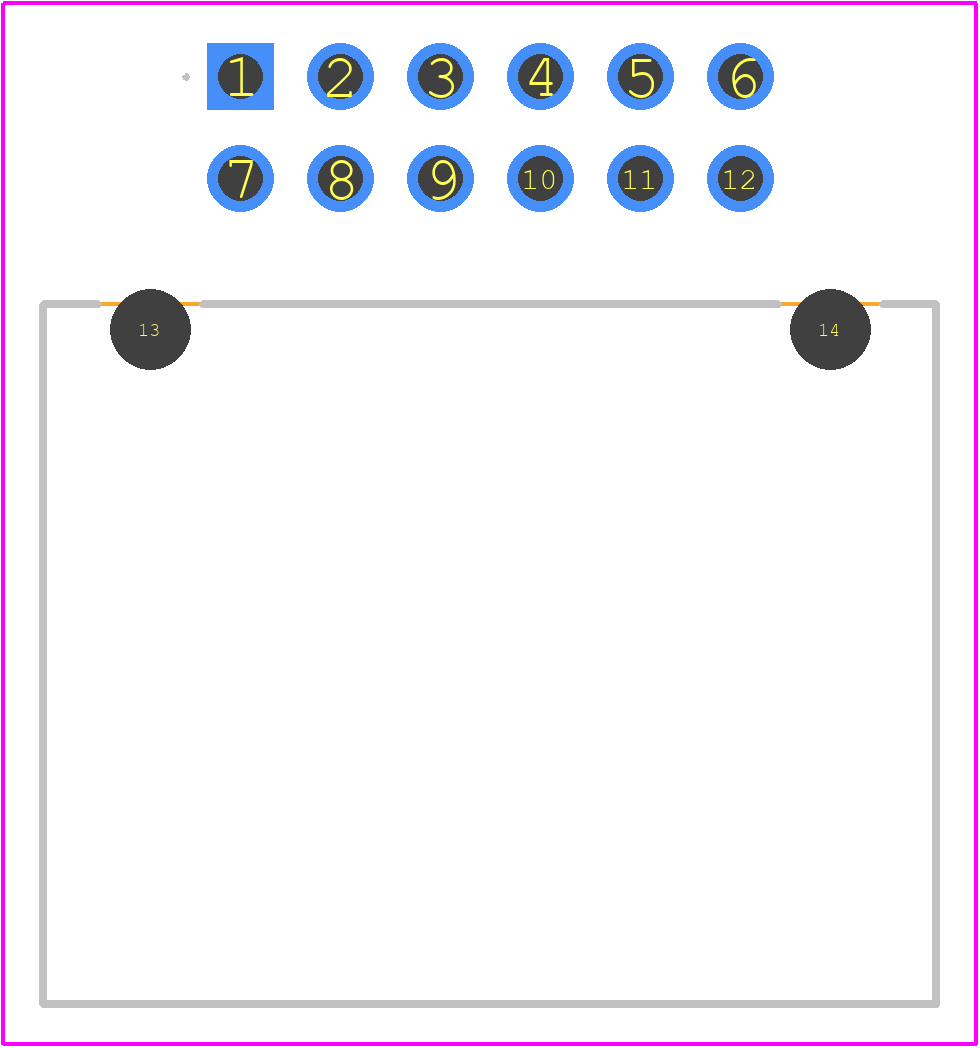

• Are there any specific PCB layout considerations for this connector?
  Yes, it's essential to follow proper PCB layout guidelines for the 2322610-1 connector. Ensure the PCB layout allows for easy connector insertion and removal, and that the PCB material and thickness meet the connector's specifications.
